                            Industrial LCD Monitors :   Part #   ID-17A
                                     6mm Aluminum Front Bezel 17" Samsung  Panel Mount Industrial  Monitor
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

17 inch diagonal (337.92H x 270V)

Resolutions

1280 x 1024

Display Color

16.2M color

Brightness

300 cd/m2

Contrast ratio

1000 : 1 (Typical)

Response Time

Tr=1.3 / Tf=3.7ms

Pixel pitch

0.264 x 0.264 mm

Viewing angle

80 / 80 / 80 / 80 (L / R / U / D)  or
160 / 160

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

 -Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply
External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm,UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input
  • Video Input   :    DVI and S-Video and Composite and BNC
  • Input Connectors : RCA, S-video, DVI

Optional Touch Screen

                 Details

Optional DC Power

 48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
 DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety  : Continuous short circuit protection
                                  Mechanical

Material

 6mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating
Color  Front Panel : Black
 Back          : Dark Grey (RAL7037)
Dimension  415 x 57 x 328 mm (WxDxH)
Product Weight  5.5 kg
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -10 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   5~500Hz 1G RMS random vibration
Safety Approval   CE, FCC
                             Package Content

Package Content

 LCD Monitor x 1,VGA Cable (Male to Male) x 1,   DC 12V adapter x1 ,Power cord x 1,  Mounting Bracket x 1 pair, CD disc, User Manual x 1

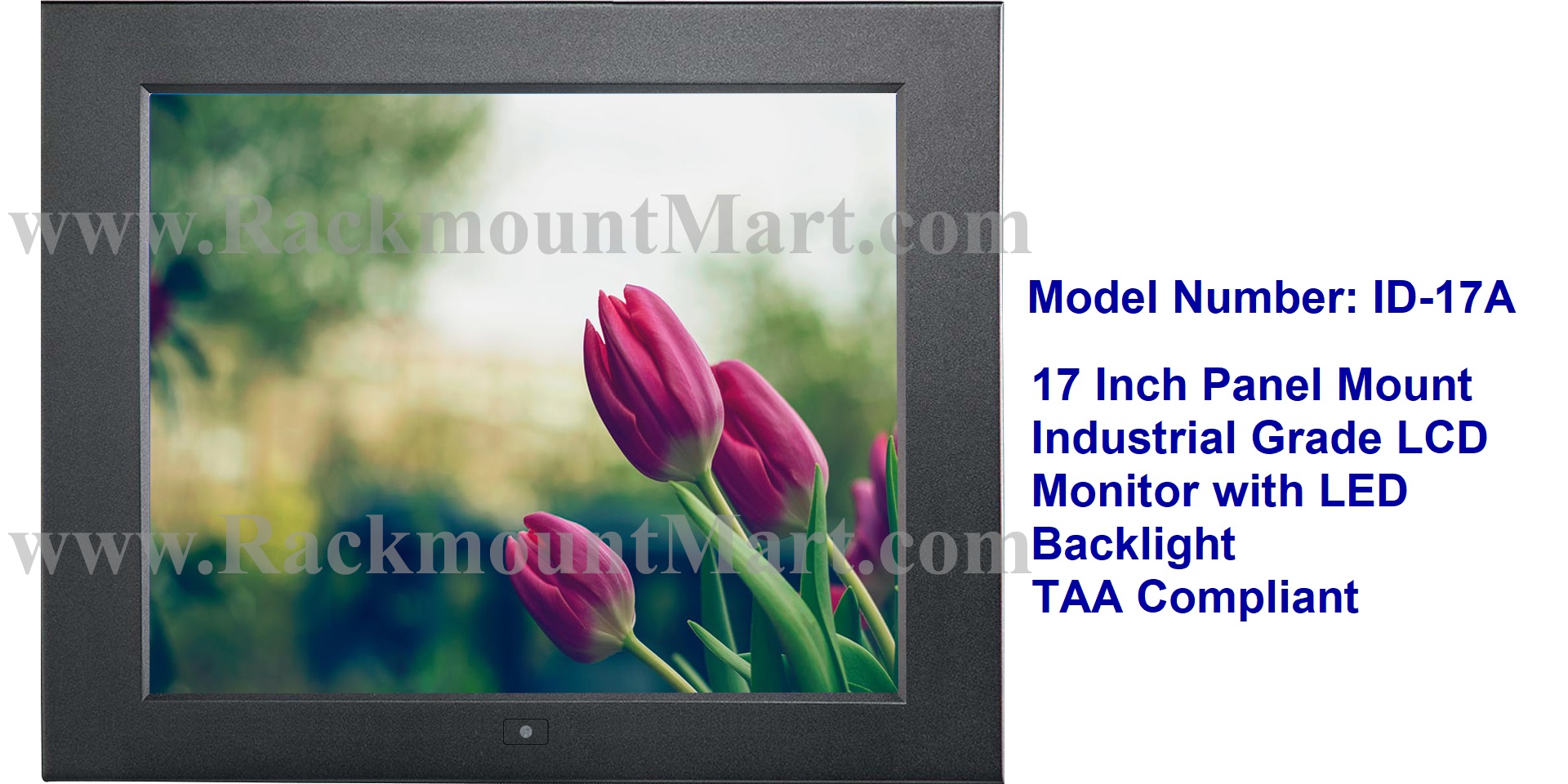

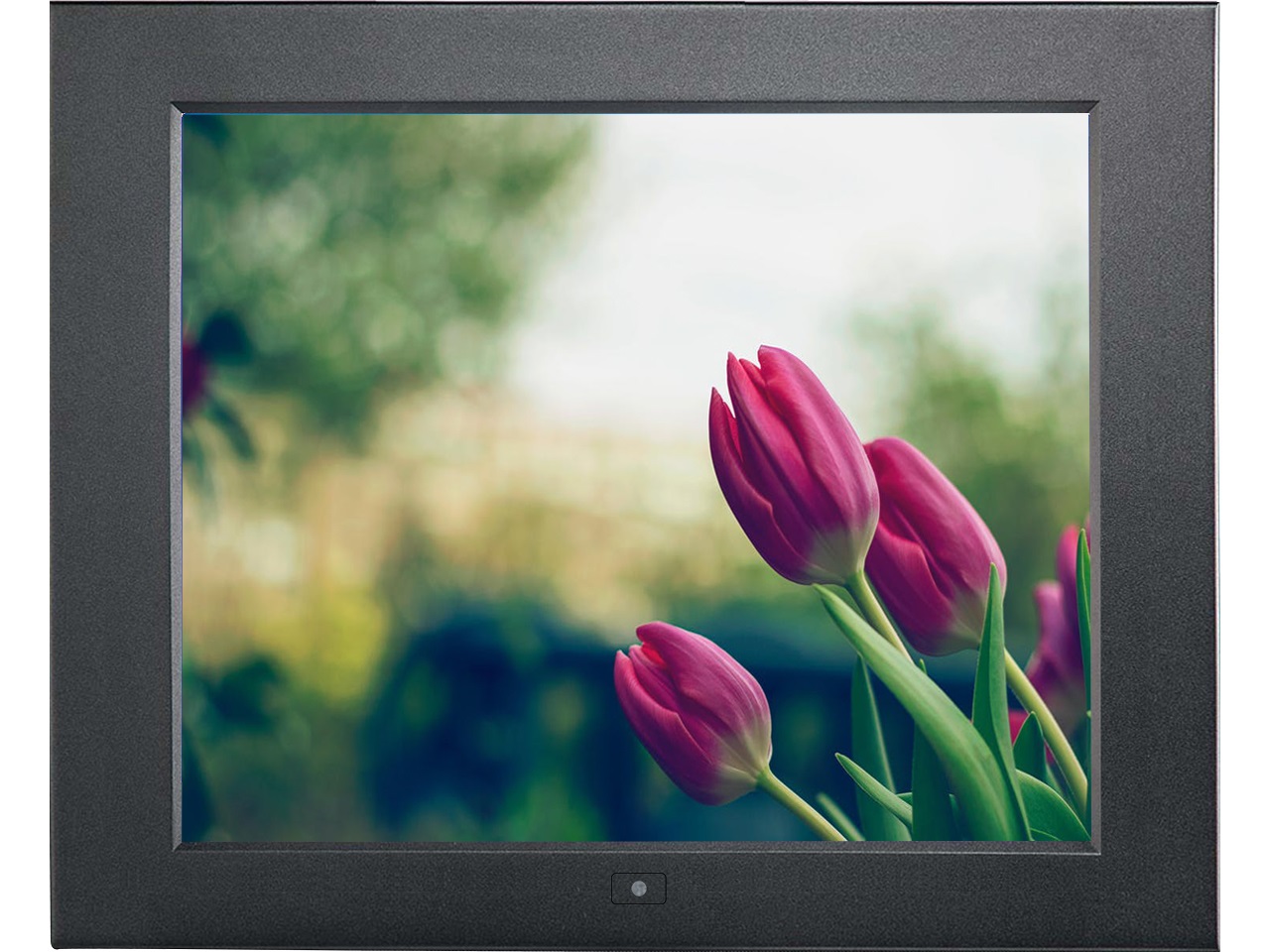

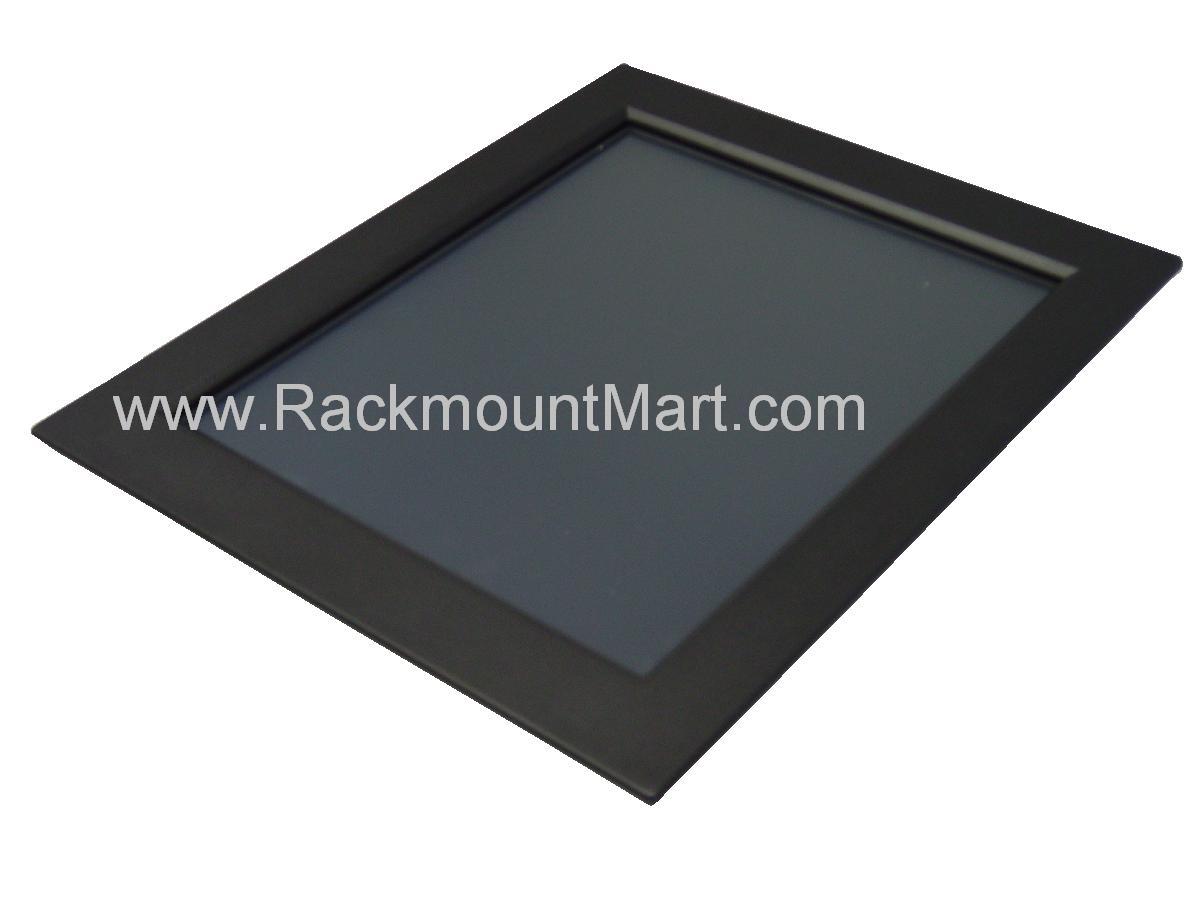

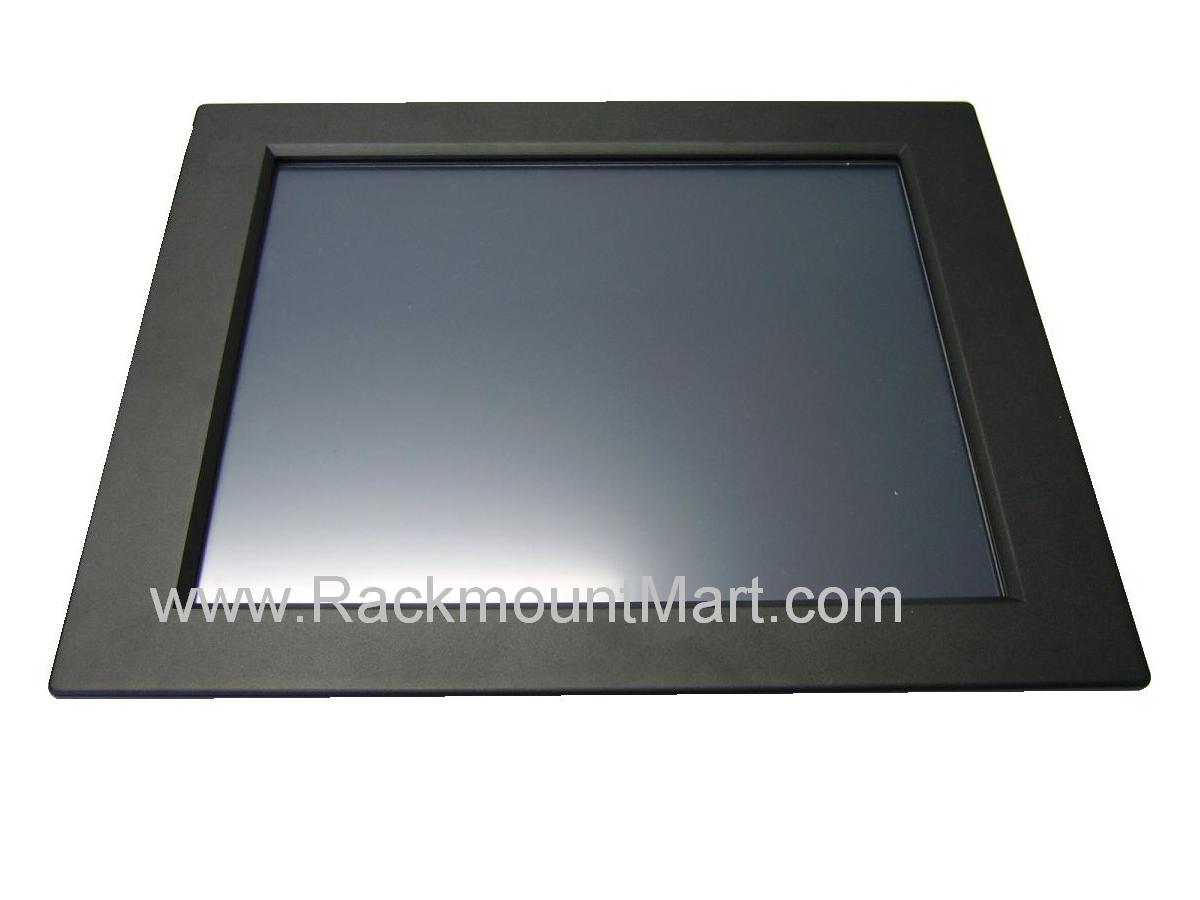

  Front View of  ID-17A

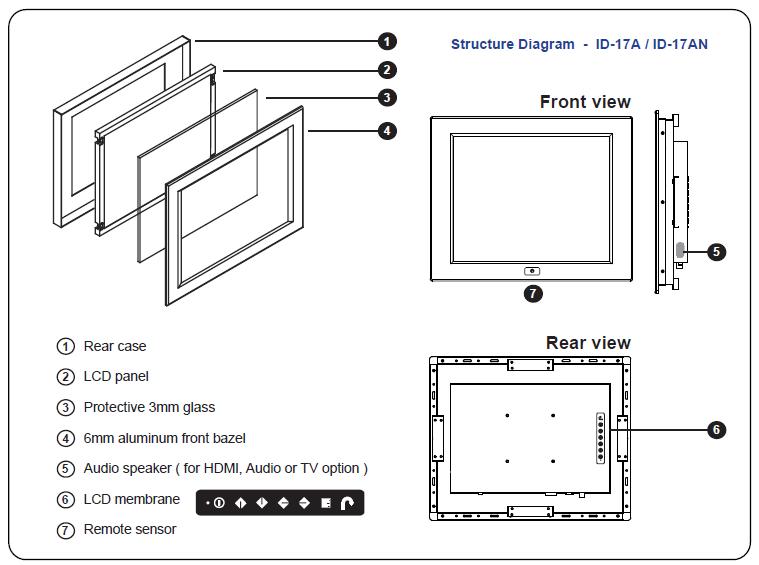

        Construction

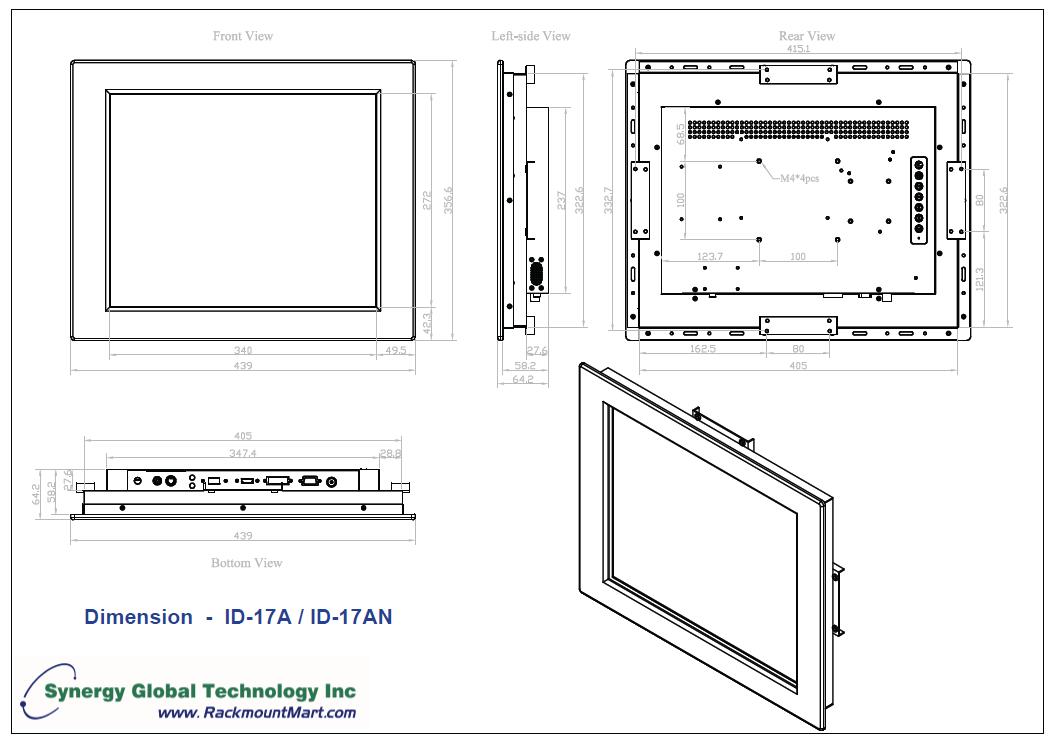

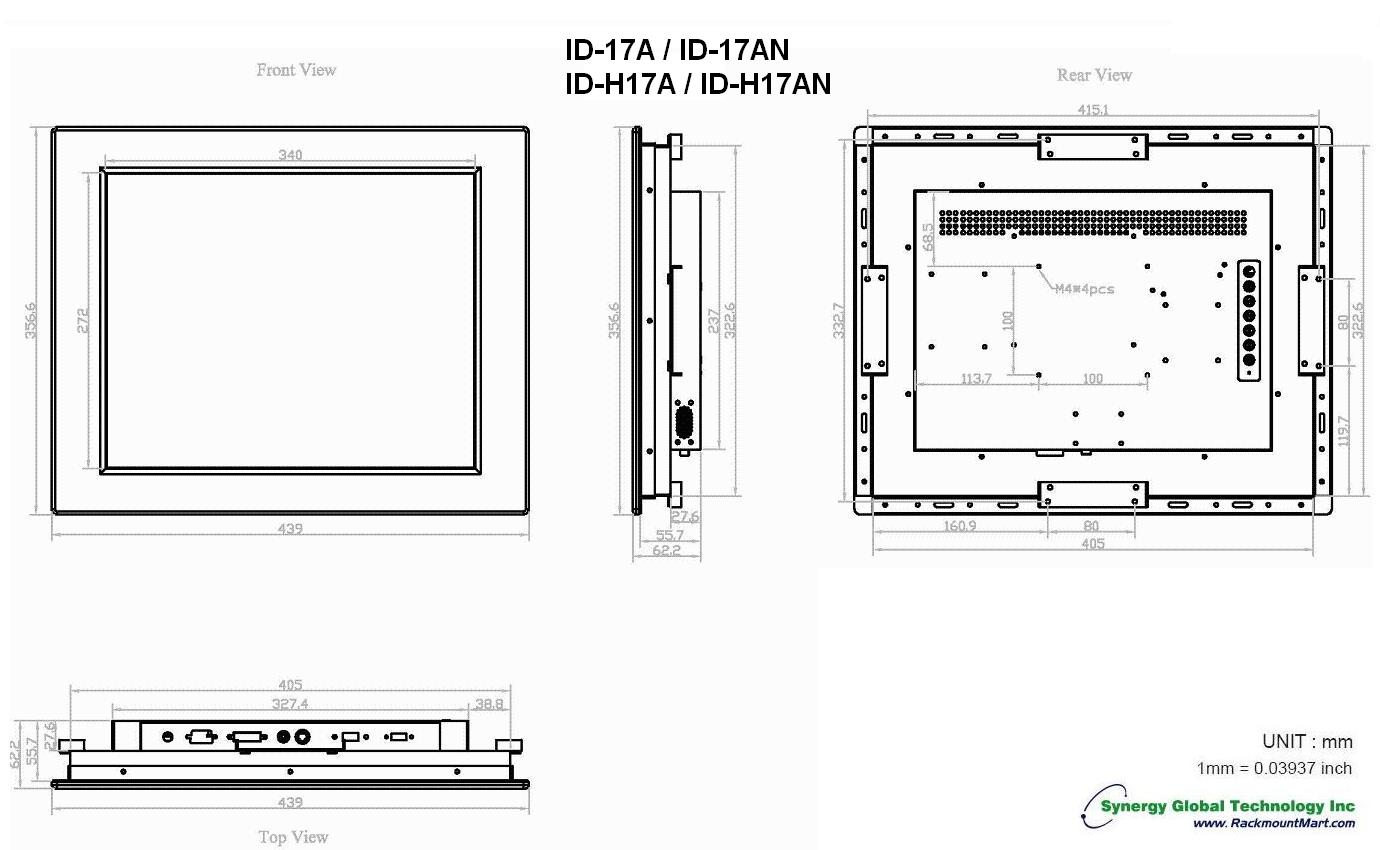

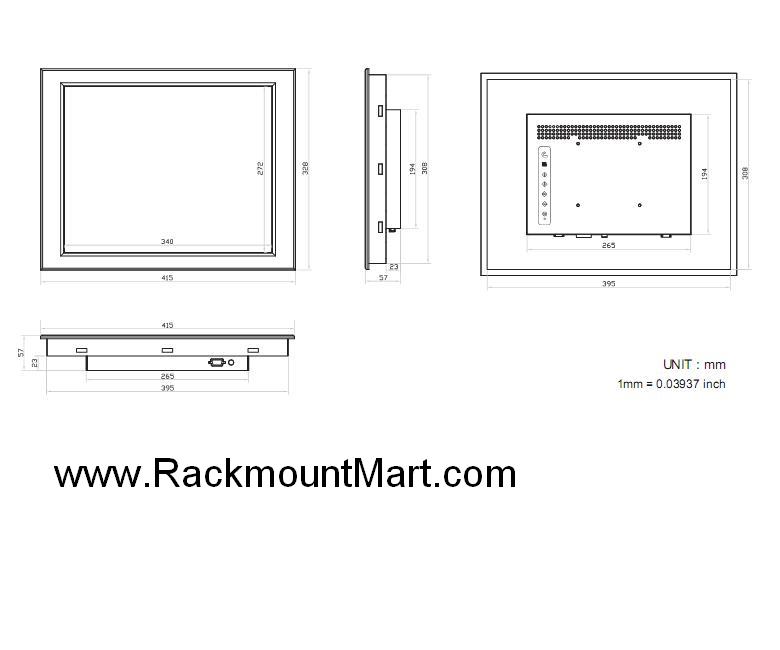

   Front / Rear / Top / Side Views & Dimensions



      *click on above picture for enlarged view







                     ( VESA Mount /  Wall Mount )

Touchscreen Drive Download(Resistive)
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE

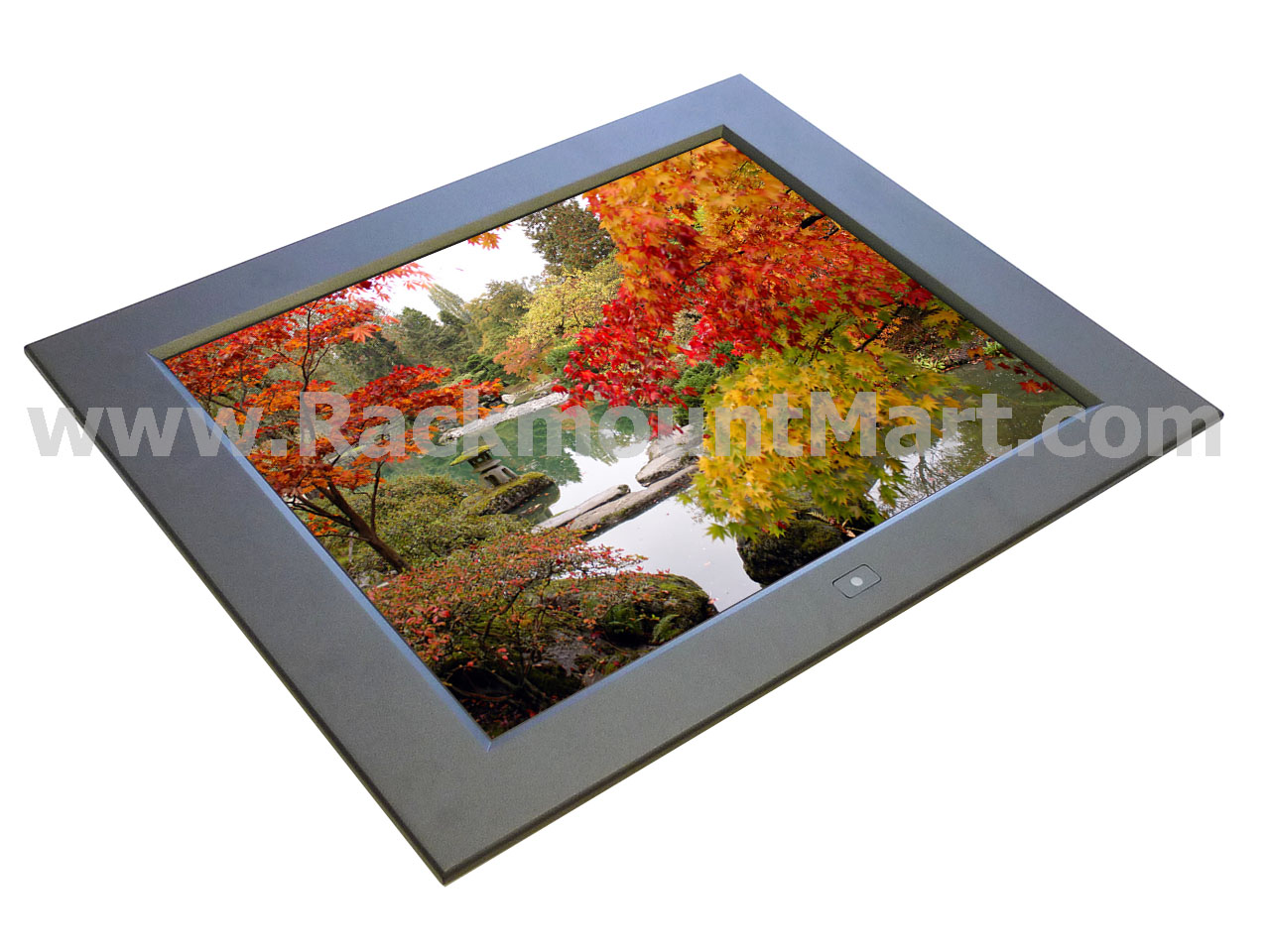

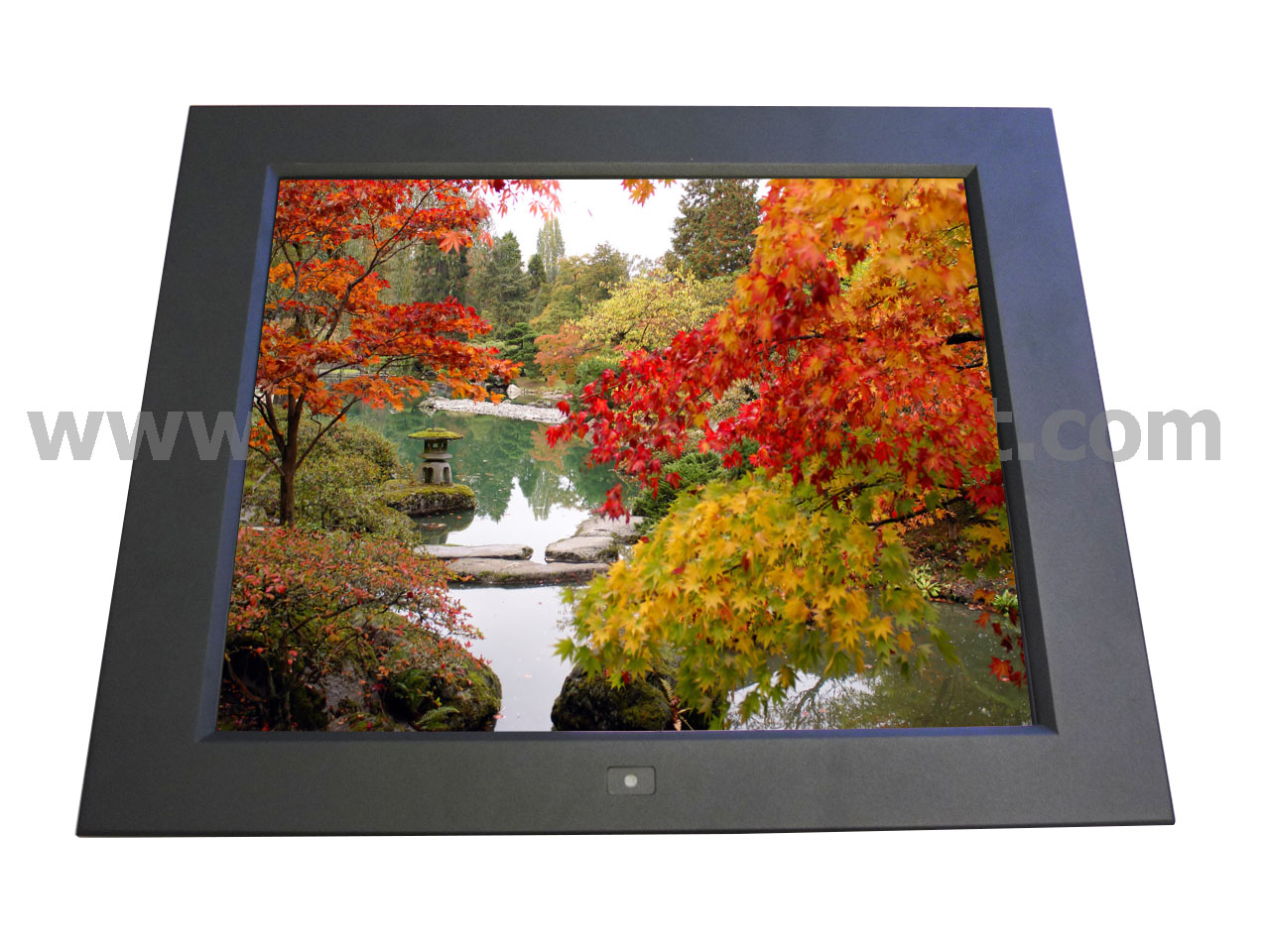

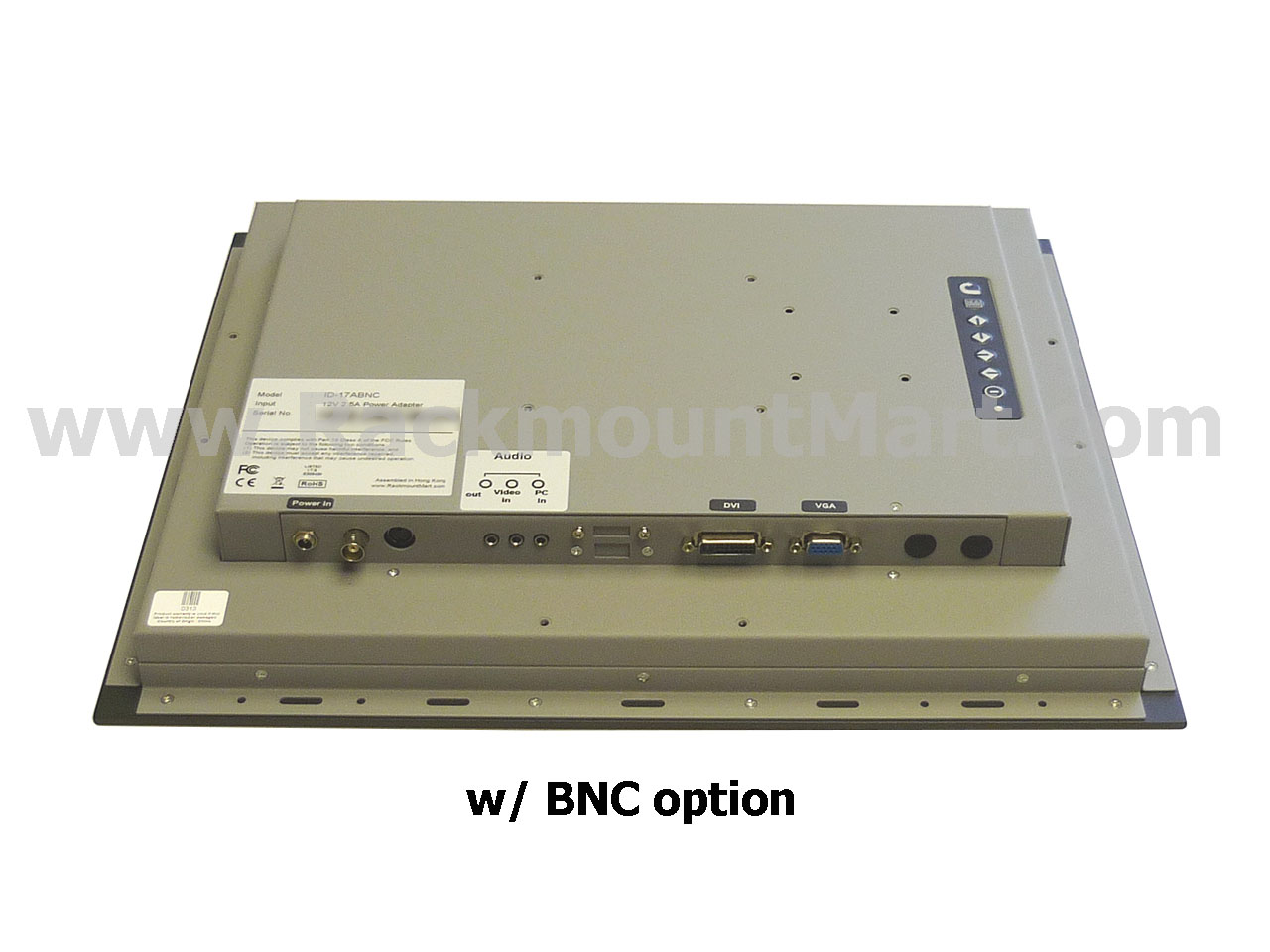

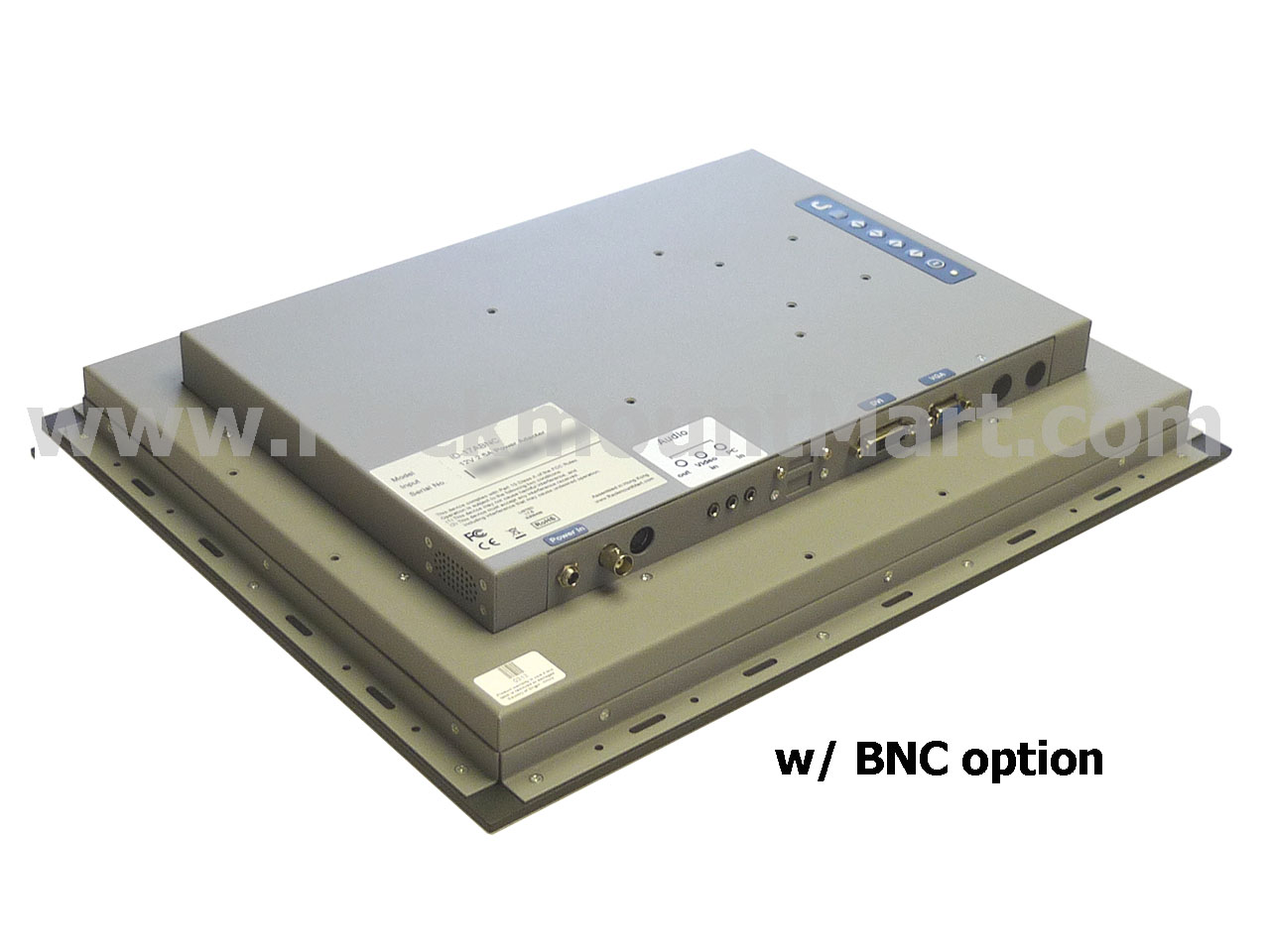

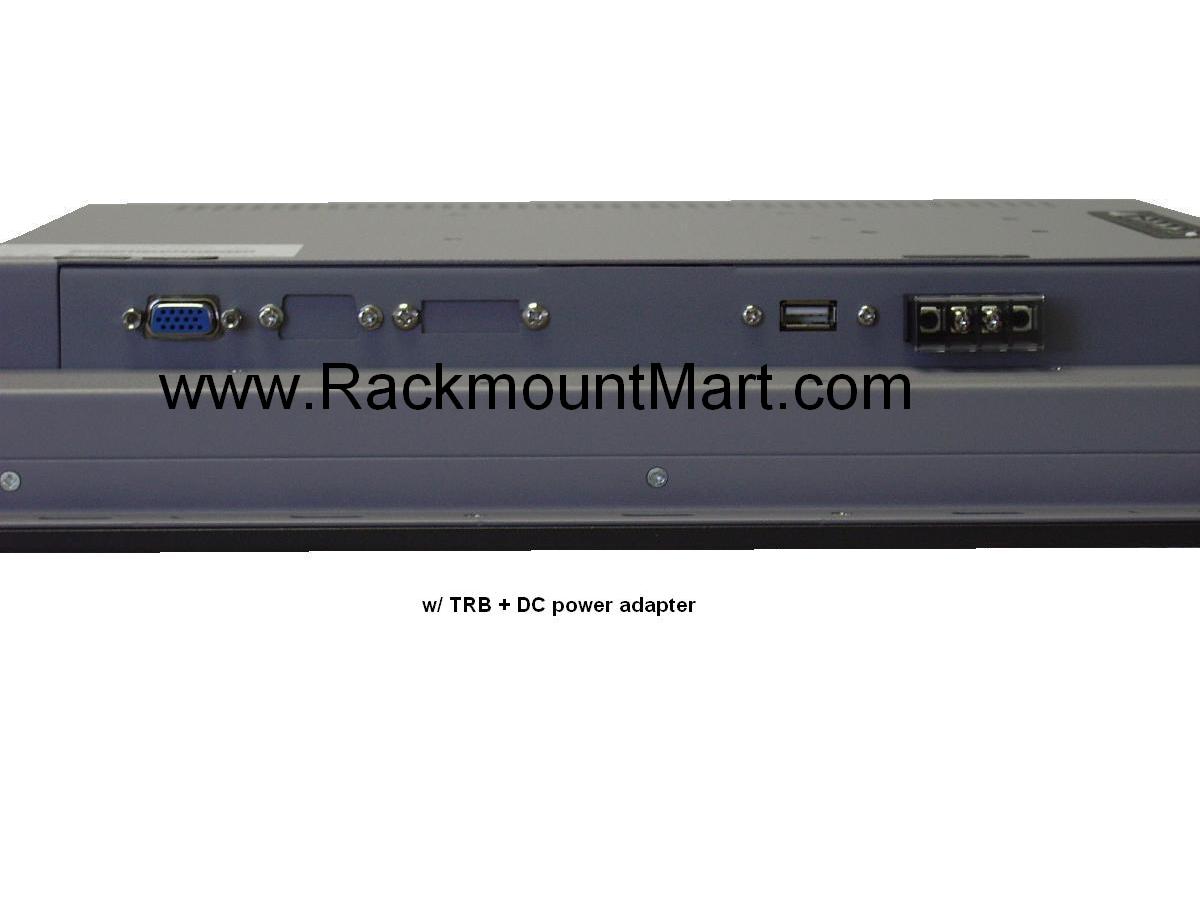

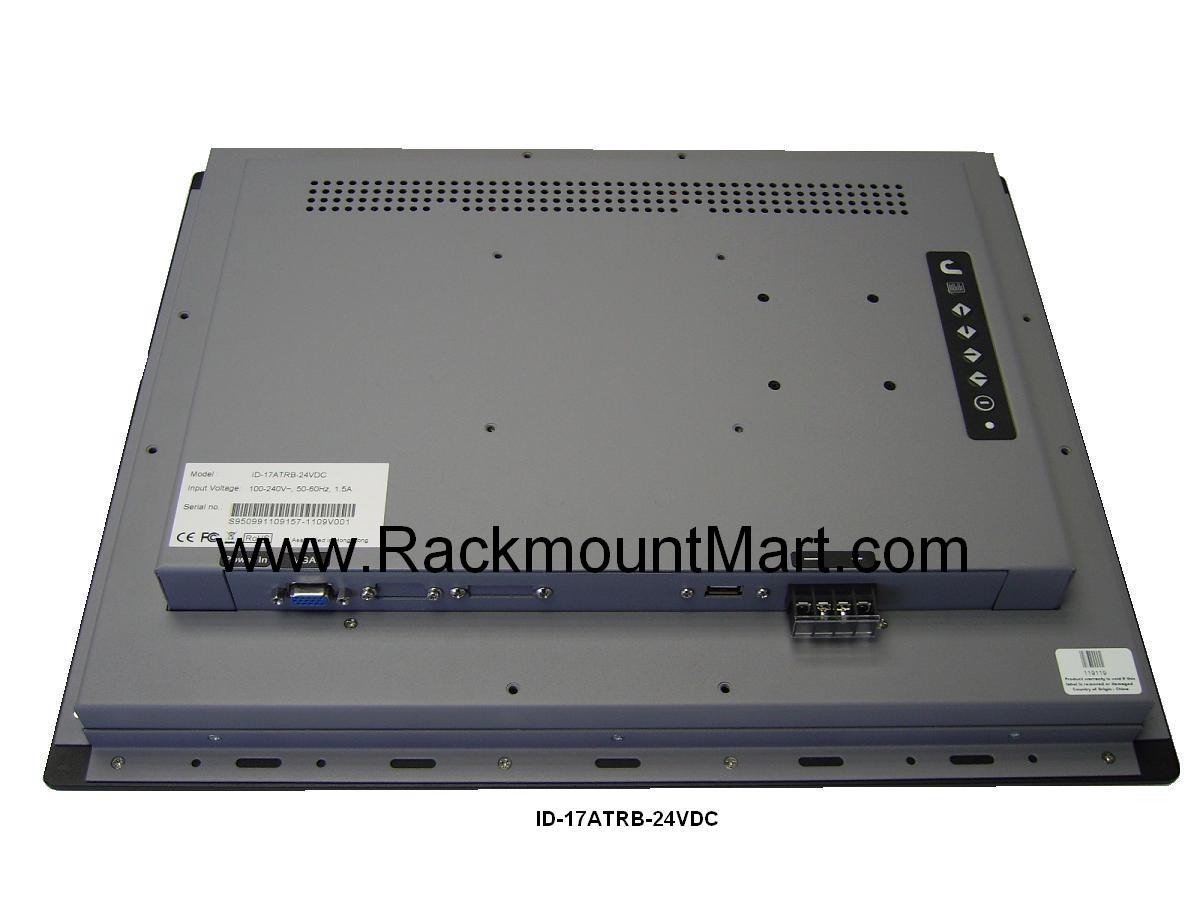

  More photos (click to enlarge )

FEATURES :
  • 17" industrial TFT LCD panel support 12800 x 1024 pixels
  • 6mm Aluminum front bezel with 45 degree chamfer
  • Rugged construction and modularized design
  • 300 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Optional DC power input (12 / 24 / 48 VDC)
  • Optional video input (DVI & S-Video & RCA input)
  • Optional touch screen, NEMA 4 / IP 65 front protection
  • Wide-ranges Mounting kits
    (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

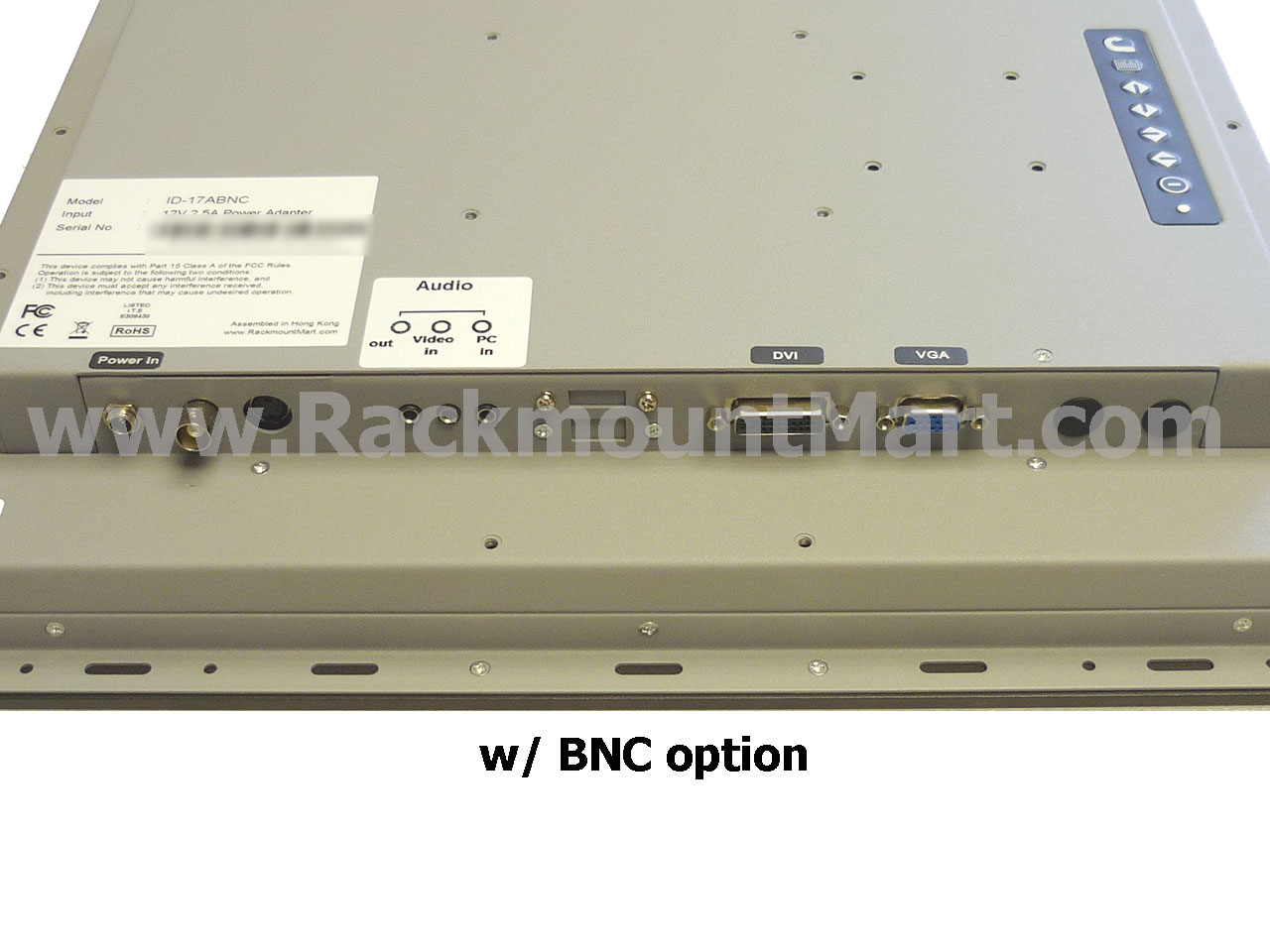

     Diagram for  I/O Outlet






Ordering information :
Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-17A
Price : $520		 Standard Version  - 6mm Aluminum Front Bezel 17" Samsung Industrial display
ID-17ADVI
Price : $628		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display + DVI
ID-17AAV
Price : $581		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           S-Video & Composite video(RCA)
ID-17ABNC
Price : $581		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           S-Video & Composite video(BNC)
ID-17ADC12
Price : $682		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           12v DC Power
ID-17ADC24
Price : $682		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           24v DC Power
ID-17ADC48
Price : $682		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           48v DC Power
ID-17ATRS
Price : $804		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           e-Resistive Touch screen & serial controller
ID-17ATRB
Price : $804		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           e-Resistive Touch screen & USB controller
ID-17ATCS
Price : $979		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                          e-Capacitive Touch screen & serial controller
ID-17ATRB
Price : $979		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           e-Capacitive Touch screen & USB controller
-DVI
Price : $108		 Add DVI
-AV
Price : $61		 Add Composite video(RCA) + S-video
-BNC
Price : $61		 Add Composite video(BNC) + S-video
-TV
Price : $101		 Add TV tuner with remote controller
-QD
Price : $635		 Add Quad display
-12VDC
Price : $162		 Add 12V DC Power
-24VDC
Price : $162		 Add 24V DC Power
-48VDC
Price : $162		 Add 48V DC Power
-SPK
Price : $68		 Add Audio input
-RM
Price : $54		 Add Remote controller
                                                  WITH NEMA 4 / IP65
ID-17AN
Price : $608		 Standard Version  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           NEMA 4 / IP65
ID-17ADVIN
Price : $716		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           DVI
ID-17AAVN
Price : $669		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           S-Video & Composite video(RCA) + NEMA 4 / IP65
ID-17ABNCN
Price : $669		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           S-Video & Composite video(BNC) + NEMA 4 / IP65
ID-17ADC12N
Price : $770		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           12v DC Power +NEMA 4 / IP65
ID-17ADC24N
Price : $770		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           24v DC Power +NEMA 4 / IP65
ID-17ADC48N
Price : $770		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           48v DC Power +NEMA 4 / IP65
ID-17ATRSN
Price : $892		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           e-Resistive Touch screen & serial controller + NEMA 4 / IP65
ID-17ATRBN
Price : $892		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           e-Resistive Touch screen & USB controller + NEMA 4 / IP65
ID-17ATRSN
Price : $1067		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           e-Capacitive Touch screen & serial controller + NEMA 4 / IP65
ID-17ATRBN
Price : $1067		 Version w/option  - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
                           e-Capacitive Touch screen & USB controller + NEMA 4 / IP65
-DVI
Price : $108		 Add DVI
-AV
Price : $61		 Add Composite video(RCA) + S-video
-BNC
Price : $61		 Add Composite video(BNC) + S-video
-TV
Price : $101		 Add TV tuner with remote controller
-QD
Price : $635		 Add Quad display
-12VDC
Price : $162		 Add 12V DC Power
-24VDC
Price : $162		 Add 24V DC Power
-48VDC
Price : $162		 Add 48V DC Power
-SPK
Price : $68		 Add Audio input
-RM
Price : $54		 Add Remote controller
