Industrial Flat Panel : Part # ID-19P

19" Samsung Open Frame TFT LCD Display

LCD Panel
LCD Type	Samsung Grade A Industrial TFT LCD Panel
Display Size	19 inch diagonal (376.32H x 301.056V)
Resolutions	1280 x 1024
Display Color	16.7M color
Brightness	300 cd/m2
Contrast ratio	1000 : 1 (Typical)
Response Time	Tr=1.3 / Tf=3.7ms
Pixel pitch	0.294 x 0.294 mm
Viewing angle	80 / 80 / 80 / 80 (L / R / U / D) or 160 / 160
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	-Input Video Signal : Analog RGB -Video Level : Analog: 0.7Vp-p -Sync Type : Separate H/V, Composite H/V -Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type,110 ~ 220 VAC at 50 or 60Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	Video Input : DVI and S-Video and Composite and BNC Input Connectors : RCA, S-video, DVI
Optional Touch Screen	Details
Optional DC Power	48V / 24V / 12V DC Power Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	1.2mm Steel
Dimension	473.5 x 55.1 x 381.1 mm (WxDxH)
Product Weight	6 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -5 to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Shock	10G peak acceleration (11ms duration)
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-19P

Construction

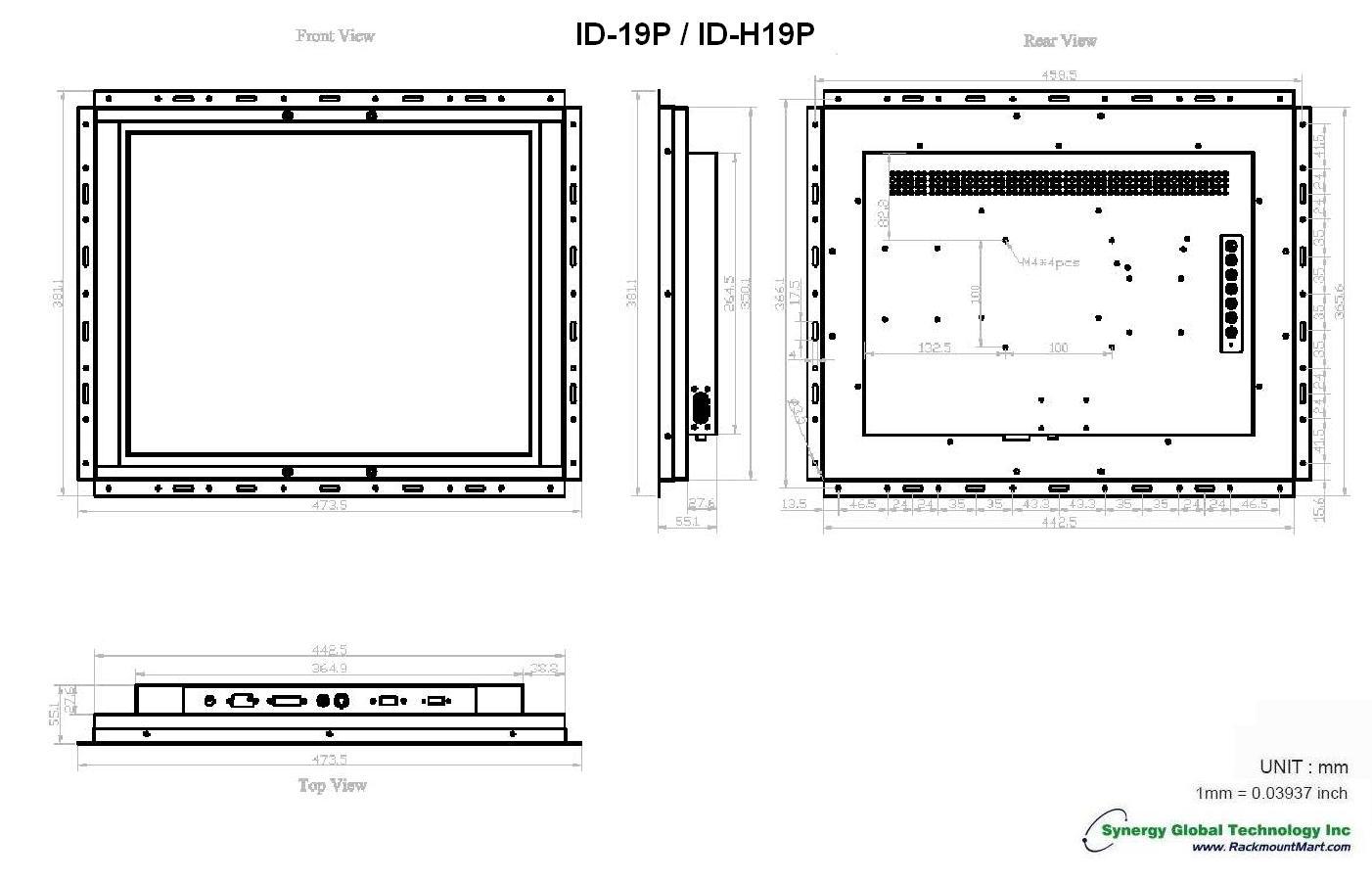

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

Touchscreen Drive Download(Resistive)

Mac Linux Dos

Win 2k-Xp Win 98-Me Win CE

More photos (click to enlarge )

FEATURES :

19" industrial TFT LCD panel support 1280 x 1024 pixels

300 cd/m2 industrial brightness

OSD control keys to optimize the display

Low power consumption

Modularized design

Optional video input (DVI & S-Video & RCA input)

Optional with touchscreen and DC power input

Low power consumption

Universal open frame kits

Universal-mount, OEM mounting

APPLICATIONS :

Industrial automation LCD panel
Embedded display Unit
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part # Description

                                                 WITHOUT NEMA 4 / IP65

ID-19P
Price : $554 Standard Version - 19" Samsung Open Frame TFT LCD Display

ID-19PDVI
Price : $662 Version w/option - 19" Samsung Open Frame TFT LCD Display + DVI

ID-19PAV
Price : $615 Version w/option - 19" Samsung Open Frame TFT LCD Display + S-Video &
                          Composite video(RCA)

ID-19PBNC
Price : $615 Version w/option - 19" Samsung Open Frame TFT LCD Display + S-Video &
                          Composite video(BNC)

ID-19PDC12
Price : $716 Version w/option - 19" Samsung Open Frame TFT LCD Display + 12v DC Power

ID-19PDC24
Price : $716 Version w/option - 19" Samsung Open Frame TFT LCD Display + 24v DC Power

ID-19PDC48
Price : $716 Version w/option - 19" Samsung Open Frame TFT LCD Display + 48v DC Power

ID-19PTRS
Price : $878 Version w/option - 19" Samsung Open Frame TFT LCD Display +
                           e-Resistive Touch screen & serial controller

ID-19PTRB
Price : $878 Version w/option - 19" Samsung Open Frame TFT LCD Display +
                           e-Resistive Touch screen & USB controller

ID-19PTCS
Price : $1040 Version w/option - 19" Samsung Open Frame TFT LCD Display +
                          e-Capacitive Touch screen & serial controller

ID-19PTCB
Price : $1040 Version w/option - 19" Samsung Open Frame TFT LCD Display +
                          e-Capacitive Touch screen & USB controller

-DVI
Price : $108 Add DVI

-AV
Price : $61 Add Composite video(RCA) + S-video

-BNC
Price : $61 Add Composite video(BNC) + S-video

-TV
Price : $101 Add TV tuner with remote controller

-QD
Price : $635 Add Quad display

-12VDC
Price : $162 Add 12V DC Power

-24VDC
Price : $162 Add 24V DC Power

-48VDC
Price : $162 Add 48V DC Power

-SPK
Price : $68 Add Audio input

-RM
Price : $54 Add Remote controller
