Home >> Industrial Display >> Chassis Display >>

Industrial Flat Panel : Part # ID-20D

1.2mm Aluminum Front Bezel 20" Chassis Display

LCD Panel
LCD Type	Samsung Grade A Industrial TFT LCD Panel
Display Size	20 inch diagonal (408.0H x 306.0V)
Resolutions	1600 x 1200
Display Color	16.7M color
Brightness	300 cd/m2
Contrast ratio	800 : 1 (Typical)
Response Time	Tr=15 / Tf=25ms
Pixel pitch	0.255 x 0.255 mm
Viewing angle	80 / 80 / 80 / 80 (L / R / U / D) or 160 / 160
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	Input Video Signal : Analog RGB Video Level : Analog: 0.7Vp-p Sync Type : Separate H/V, Composite H/V Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	Video Input : S-Video and Composite Input Connectors : RCA, S-video
Optional Touch Screen	Details
Optional DC Power	48V / 24V / 12V DC Power Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	1.2mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Silver Back : Dark Grey (RAL7037)
Dimension	435 x 65 x 350 mm (WxDxH)
Product Weight	6.0 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-20D

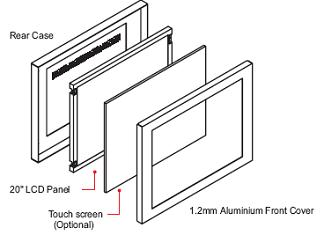

Construction

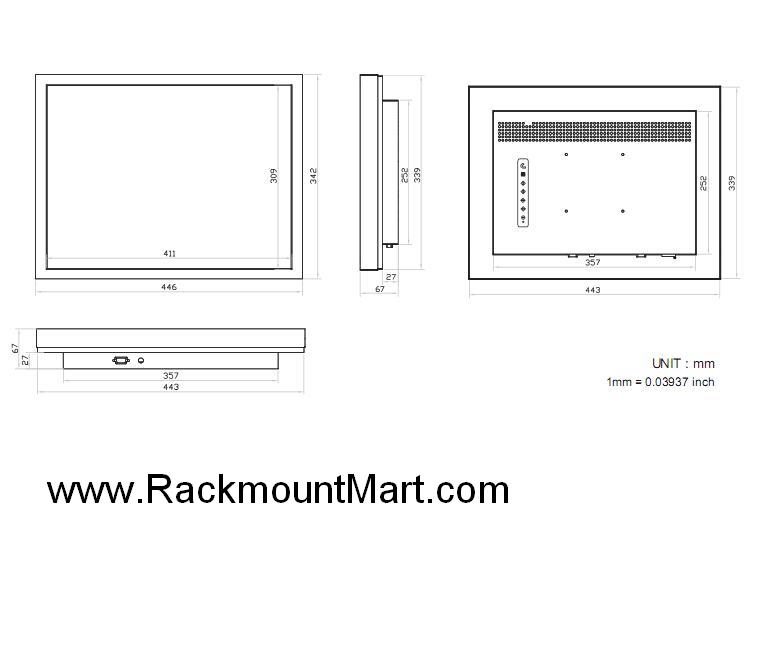

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

FEATURES :

20" industrial TFT LCD panel support 1600 x 1200 pixels

1.2mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

Low power consumption

300 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional DC power input (12 / 24 / 48 VDC)

Optional video input (S-Video & RCA input)

VESA-mount, OEM mounting design

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part # Description

                                                 WITHOUT NEMA 4 / IP65

ID-20D
Price : $878 Standard Version - 1.2mm Aluminum Front Bezel 20" Industrial display

ID-20DAV
Price : $959 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display + S-Video &
                           Composite Video

ID-20DBNC
Price : $959 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display + BNC

ID-20DDC12
Price : $1014 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display + 12v DC Power

ID-20DDC24
Price : $1014 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display + 24v DC Power

ID-20DDC48
Price : $1014 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display + 48v DC Power

ID-20DTRS
Price : $1338 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display +
                           e-Resistive Touch screen & serial controller

ID-20DTRB
Price : $1338 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display +
                           e-Resistive Touch screen & USB controller

ID-20DTCS
Price : $1811 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display +
                          3M Capacitive Touch screen & serial controller

ID-20DTRB
Price : $1811 Version w/option - 1.2mm Aluminum Front Bezel 20" Industrial display +
                           3M Capacitive Touch screen & USB controller
