1U Rackmount 17"LCD Monitor Drawer:
Part #
LCD1U17-011
1U Rackmount 17"
SAMSUNG TFT LCD Monitor Drawer
Optional DVI-D , S-Video & Composite Video , DC Input Power , Touch
Screen , Speakers & Quad Display
| 1U LCD
Drawer LCD1U17-011
|
Rack
LCD Drawer Benefits
-
Rugged 1U 17" SAMSUNG LCD Drawers
- Unique monitor
flip up design allows viewing through closed glass door of
rack cabinet
- "One Man"
installation slides for easy and quick installation
- Slide rails with fixed
positions to prevent drawer movement when typing
-
Optional S-Video + Composite Video ( BNC or
RCA ),
DVI-D, Touch screen , DC Power input, Speakers
-
Optional Quad Displays
-
2 year Warranty
|
|
Panel :
SAMSUNG 17"
LCD Panel
|
General
Information |
|
Form Factor |
1U Rack mounting on slide-out rails |
|
LCD Screen |
|
LCD Type |
 Grade A Industrial
monitor 17
inch Active
Matrix TFT LCD Panel |
|
Display Size |
17 inch diagonal |
|
Resolutions
|
1,280 x 1,024 with
60 / 70 / 75Hz |
|
Response
time
|
Tr=1.3 / Tf=3.7 ms |
|
Contrast
ratio
|
1000
: 1
|
|
Brightness
|
300
cd/ m2
|
|
Pixel
pitch
|
0.264 (H) x 0.264
(V) mm |
|
Panel
color
|
16.2
million display colors
|
|
Viewing
angle
|
160 / 160 (Horiz. / Vert.) |
|
OSD Control |
Brightness,
Contrast, Phase & Color, H & V
position,
Auto-tune, Recall & Language |
|

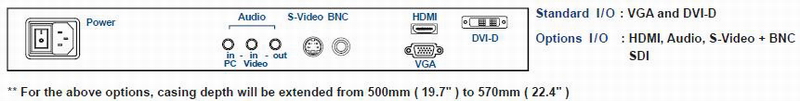

Signal Input |
VGA, Analog RGB |
|
Optional Video Input |
S-video &
Composite (BNC or RCA ),
DVI-D
...More Video Input Details |
|
LCD MTBF |
50,000 hrs |
|
Dimension:
|
17.3"(W) x 1.75" (H) x 23.6" (D) / 43.9(W) x 4.45(H)
x59.94(D) cm
|
|
Storage
temp.
|
-5ºC to 60ºC
|
|
Operating
temp.
|
0ºC to 50ºC |
|
Relative Humidity
|
5 ~90%, non condensing
|
|
Shock
|
10G peak acceleration (11ms duration) |
|
Vibration
|
5~500Hz 1G RMS random vibration |
|
Safety
Approval
|
FCC,
CE
|
|
Package Content |
LCD Monitor drawer x 1 , 6-ft VGA
cable x 1, 110 / 220 V DC Power adapter
x 1 , Power cord x 1, Key for front lock x 2, User Manual x 1 |
|
Regulatory Approval |
|
|
FCC ,
CE , VCCI , 3C* |
|
Remarks |
|
LCD1U17-014 is the SUN Solaris Compatible
version of the current model LCD1U17-011 , click this link for details
|
|
|
More photos:
(click to enlarge ) |
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
User Manual
Product Sheet
Free Ground Shipping
*Click for details
|
FEATURES :
- SAMSUNG LCD Panel
-
Supports Windows , Sun, Linux, Apple, IBM, HP , UNIX and Macintosh
computers
- Unique
mechanical design to maximize rack mountable space
- Unique monitor
flip up design allows viewing through closed glass door of
cabinet
- Adjustable mounting brackets from 390mm to 795mm. (front
to rear 19” mounts)
- Lightweight
aluminum construction - with a black anodize finish
- Side to side
wide-angle viewing as CRT monitor
- Lock out rails to prevent movement of the keyboard
- Built in on
screen display controlled by integral membrane switches
- Power saving
feature for prolonging the life of LCD panel
- Standard D-sub
15-pin VGA input connector
- Front-access
lock for security & secure
transportation
- Supplied with 12V 5A
remote power adapter (single power source)
- EMC shielding
around the monitor housing to minimize interference
- Rear rackmount bracket included
- Standard
6 ft
VGA cable included
POWER SUPPLY:
- Adapter Size :
4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
- Cable length from mains plug to
adapter : 6ft / 182cm
- Cable length from adapter to
unit : 6ft / 180cm
- Safety approval : FCC CE
- Mains plug options available
- Optional - power adaptor 48V or
24V DC input available
Back to top
ORDERING
INFORMATION FOR LCD1U17-011 - 1U 17" SAMSUNG INDUSTRIAL LCD
MONITOR DRAWER
| Part
Number |
Description |
LCD1U17-011
Price : $583 |
1U
Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer, one 6-ft
long VGA cable included |
LCD1U17-011-av
Price : $705 |
1U
Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with
S-Video & Composite Video , one 6-ft
long VGA cable included |
LCD1U17-011-bnc
Price : $705 |
1U
Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with
BNC connector & S-Video , one 6-ft long VGA cable
included |
LCD1U17-011-HDMI
Price : $705 |
1U
Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with
HDMI , one 6-ft
long VGA cable included |
LCD1U17-011-dvi
Price : $652 |
1U
Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with
DVI , one 6-ft
long VGA cable included |
LCD1U17-011-av-dvi
Price : $774 |
1U
Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with
S-Video & Composite Video and DVI , one 6-ft
long VGA cable included |
LCD1U17-011-bnc-dvi
Price : $774 |
1U
Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with
BNC and DVI , one 6-ft
long VGA cable included |
| Options |
-12VDC
Price : $171 |
Add 12V DC power supply |
-24VDC
Price : $171 |
Add 24V DC power supply |
-48VDC
Price : $171 |
Add 48V DC power supply |
-TRS
Price : $243 |
Add 17" Resistive touch screen + Serial controller |
-TRB
Price : $243 |
Add 17" Resistive touch screen + USB controller |
-TCS
Price : $421 |
Add 17" Capacitive touch screen + Serial controller |
-TCB
Price : $421 |
Add 17" Capacitive touch screen + USB controller |
-SPK
Price : $114 |
Add speaker |
| -QUAD DISPLAY
|
Please check our product ***LCD1U17-016*** |
