1U Rack Sunlight LCD Monitor Keyboard Drawer / KVM :
Part # LCD1U17-19

                1U Rack Bright Screen : 17" Samsung Sunlight Display Monitor Keyboard Drawer
                      Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 ( CAT6 )KVM
                                       Optional 16 port / 32 port High Density CAT5 ( CAT6 ) KVM or
                                               CAT5 ( CAT6 ) KVM IP for Local / Remote Access
                           **** Built-in Combo PS/2 & USB interface for selected versions ****

Also known as: bright screen , bright lcd , bright monitor , sunlight display, sunlight readable lcd , sunlight monitor , high brightness lcd , sunlight readable monitor , sunlight readable display

Panel: SAMSUNG 17" LCD panel

Display type

Active Matrix TFT

Resolutions

1280 x 1024

Response time

Tr =1.5 ms / Tf =3.5 ms (Typ.)

Contrast ratio

800 : 1 typical

Brightness

800 cd/ m2 typical

Pixel pitch

0.264mm (H) x 0.264mm (W)

Panel color

16.7 million display colors

Viewing angle

170 º (Horiz.) / 160 º (Vert.)

Video:

Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p

OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

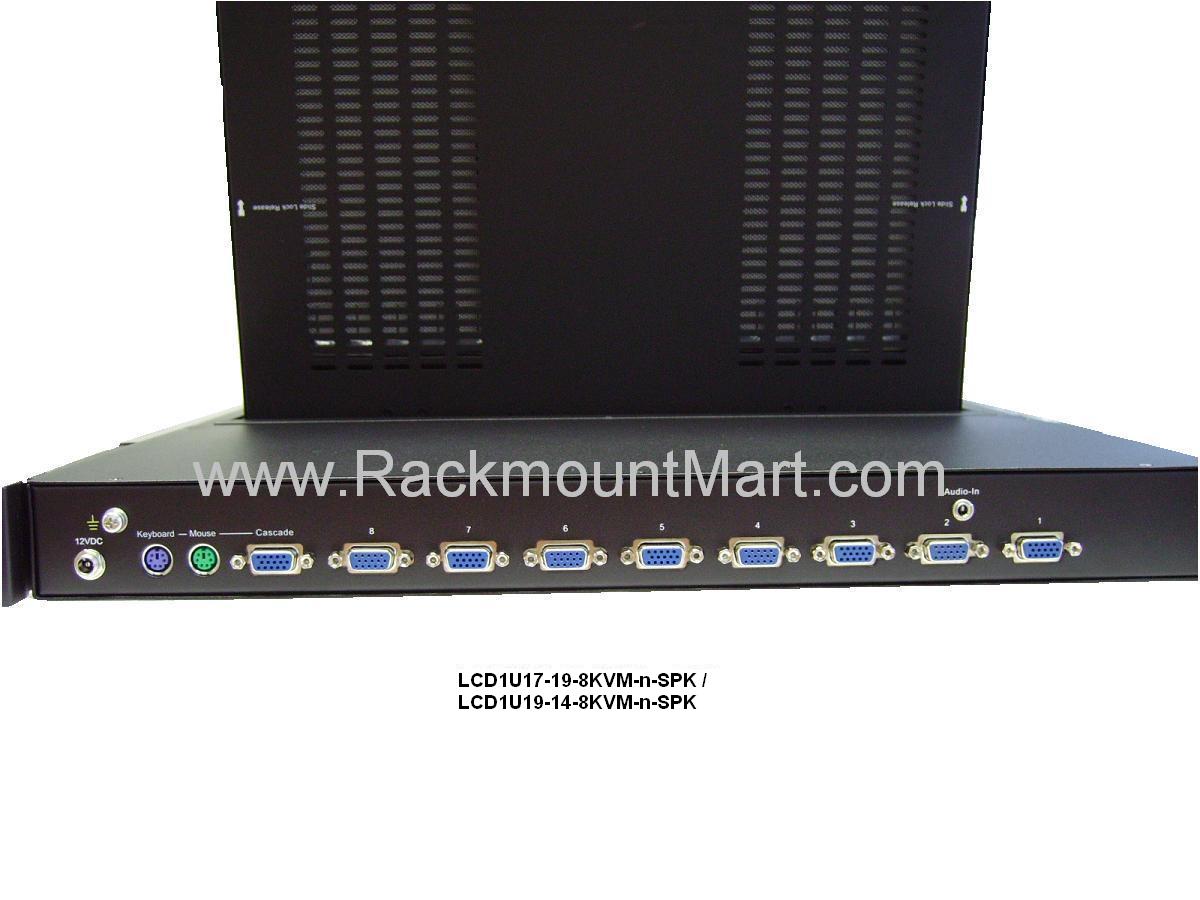

External Connection

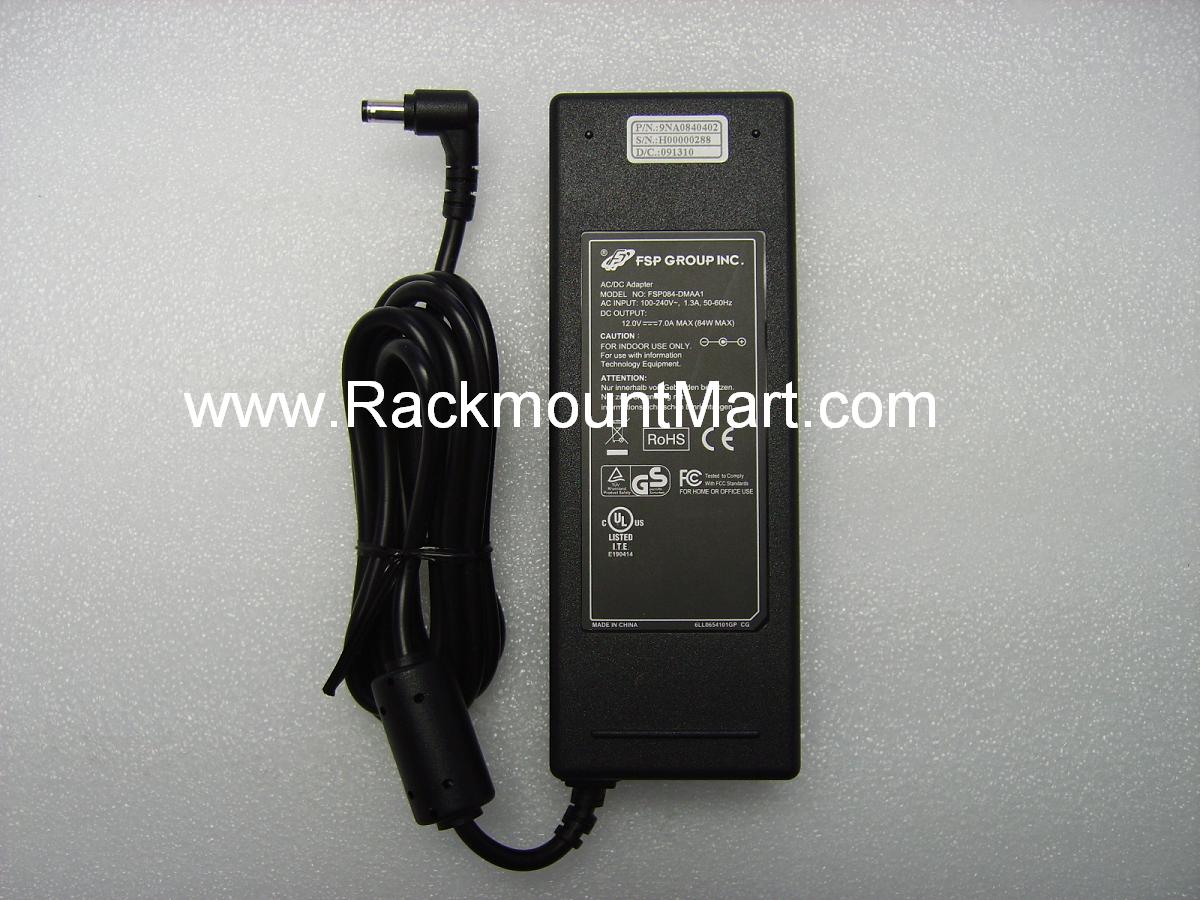

Power Input	12V/5A DC adapter
Video Input	15-pin D-Sub connector

Product Dimension

442(W) x 650(D) x 44(H)mm /
17.4" x 25.6" x 1.73"

Storage temp.

-25 to 60 ºC

Operating temp.

0 to 50 ºC

Safety Approval

FCC, CE, RoHS

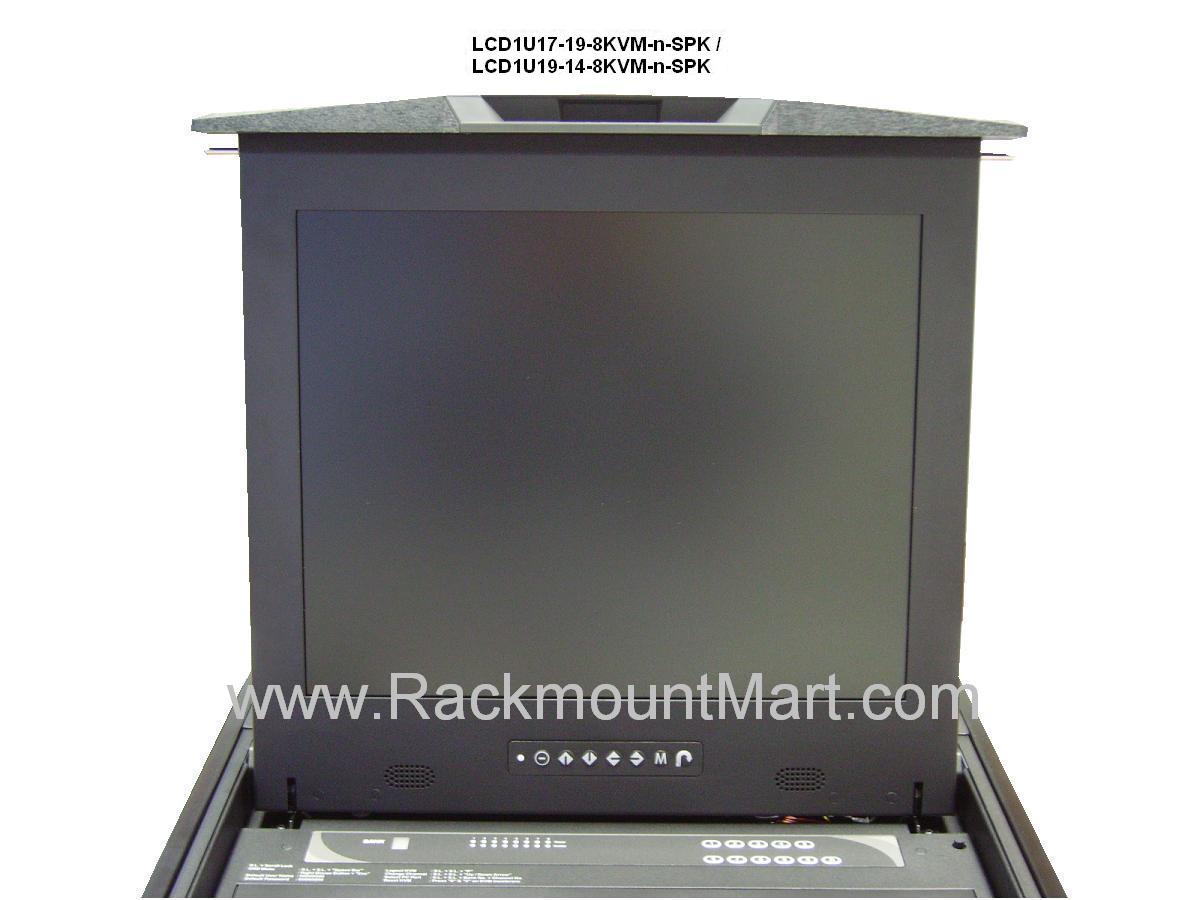

Front View of Sunlight LCD LCD1U17-19

*click on photo for enlarged view

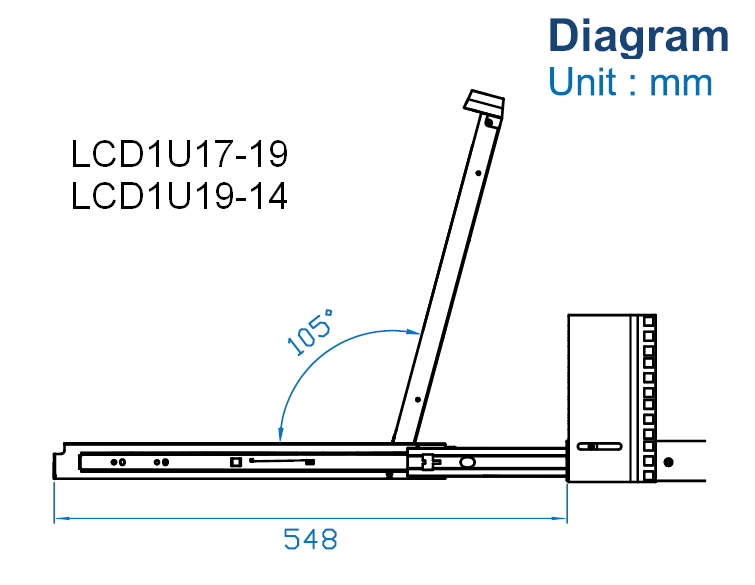

     Diagram

                  *click on diagram for enlarged view

Keyboards

Trackball Option - Touchpad Option -

*click on photo for enlarged view

User Manual

Free Ground Shipping *Click for details

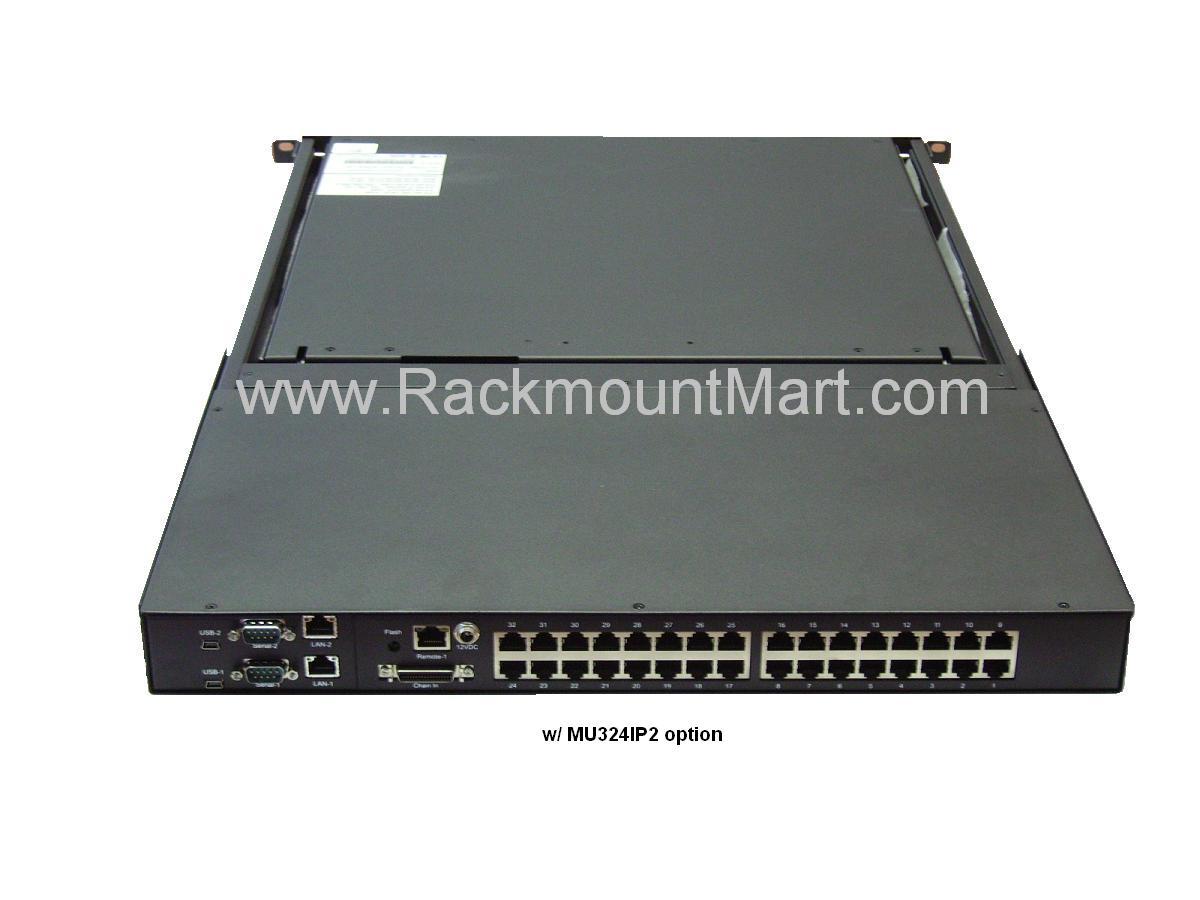

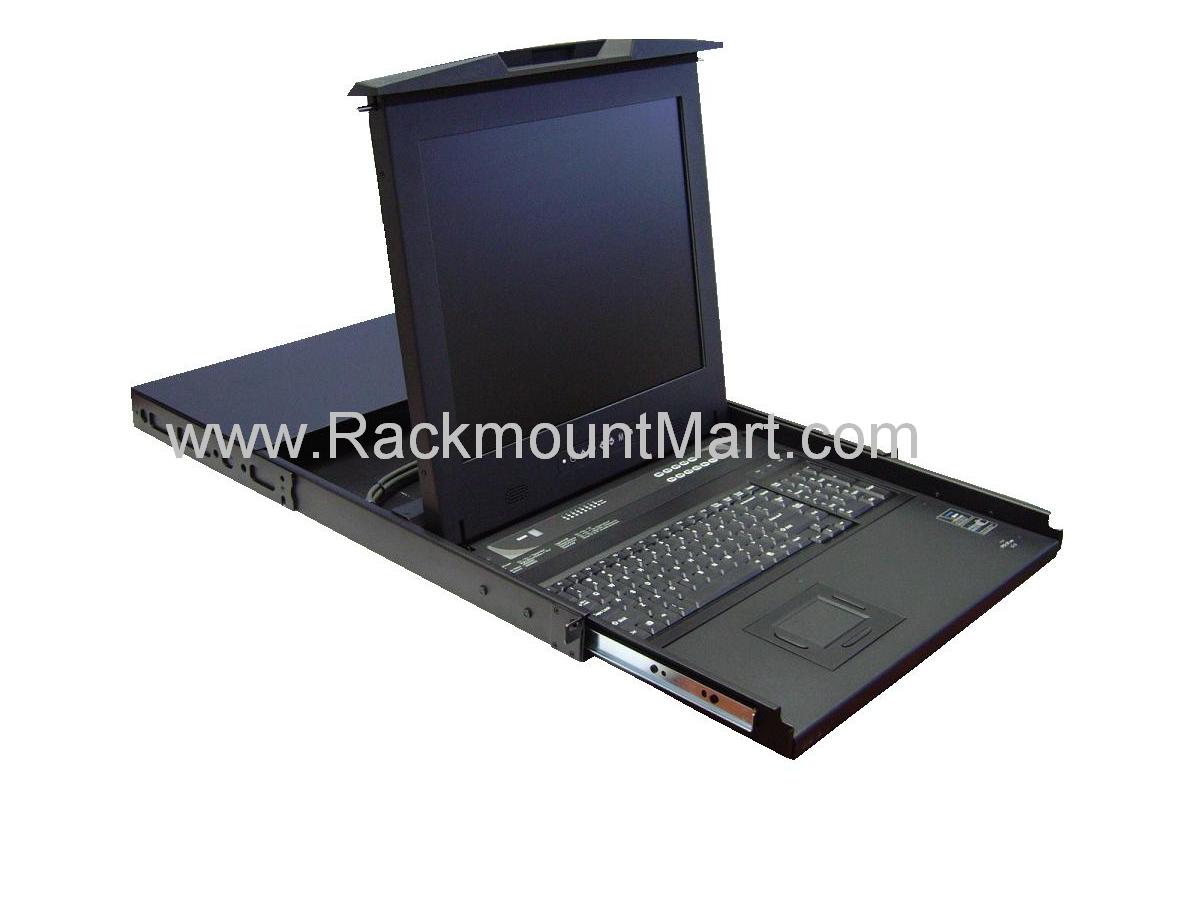

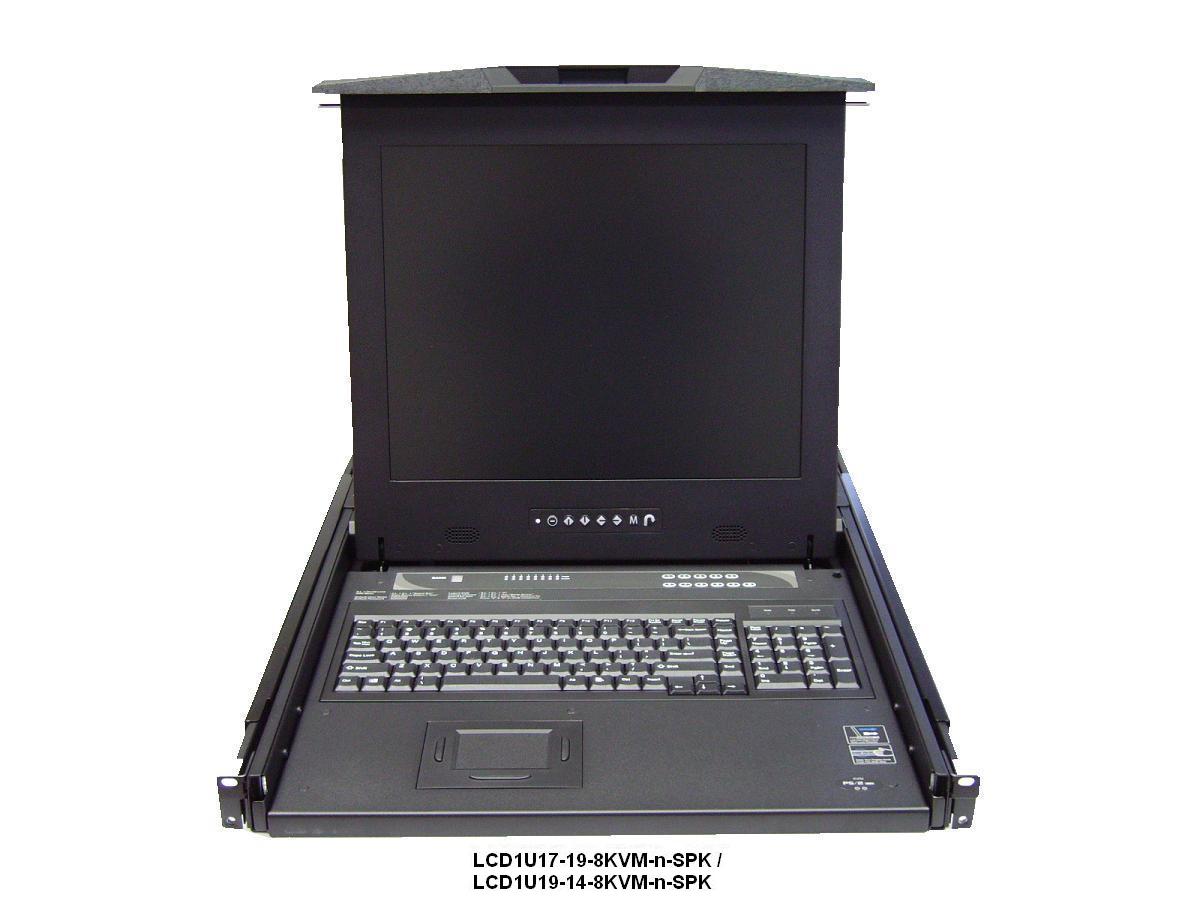

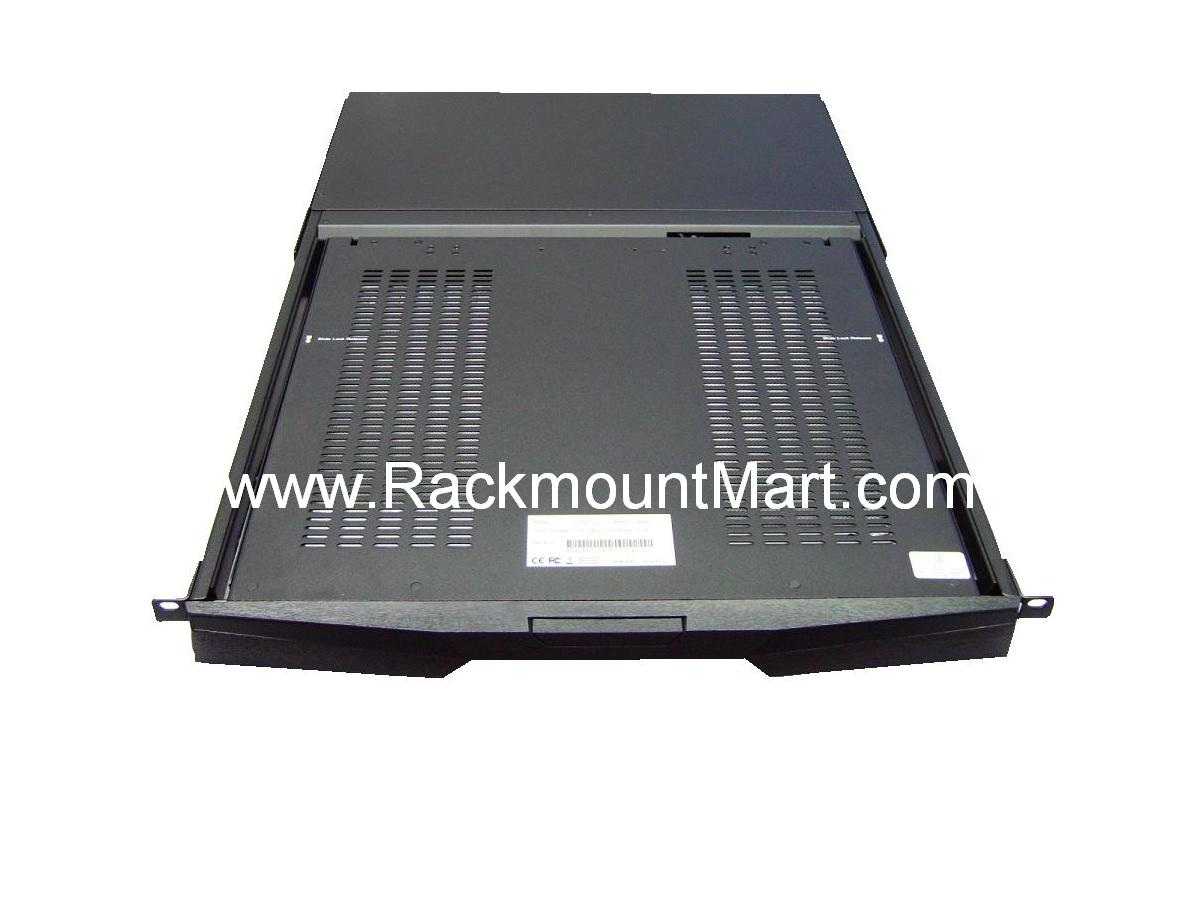

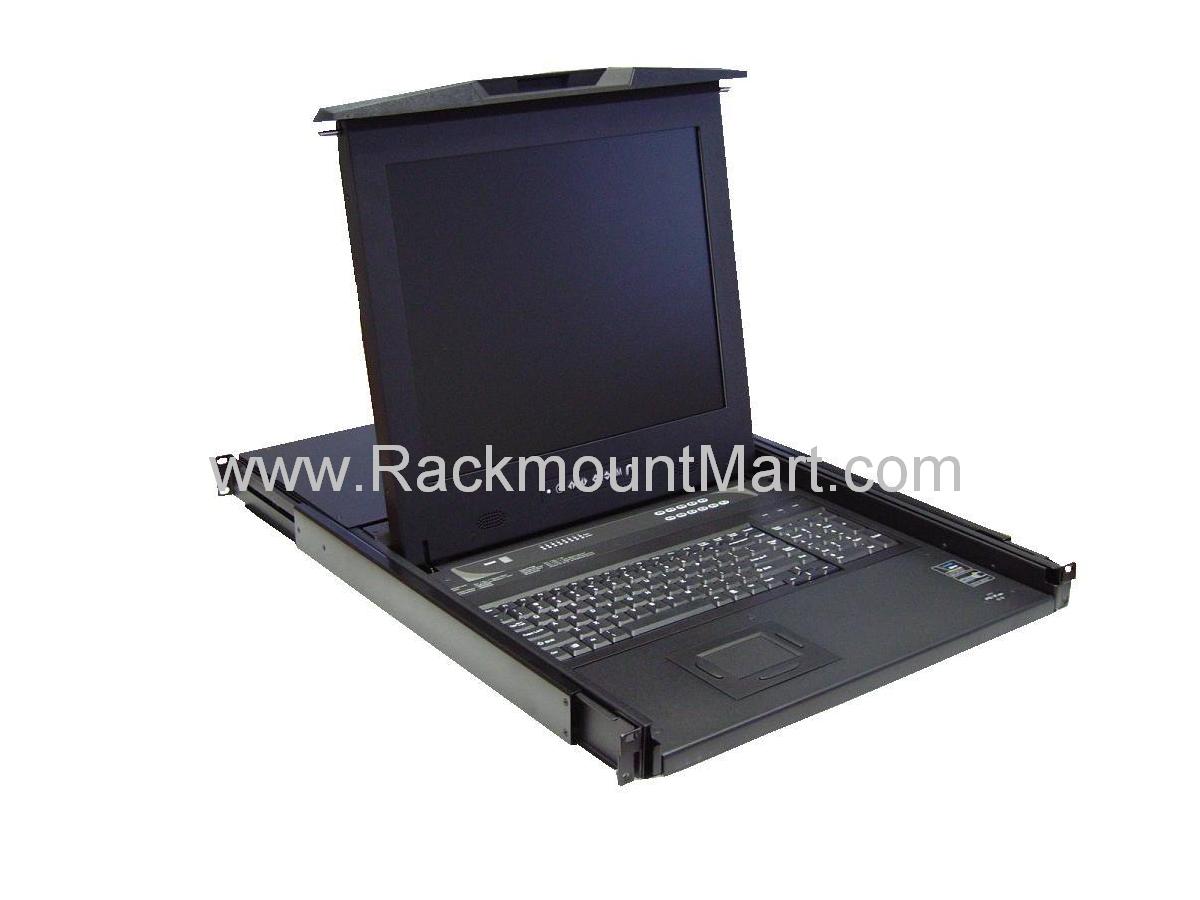

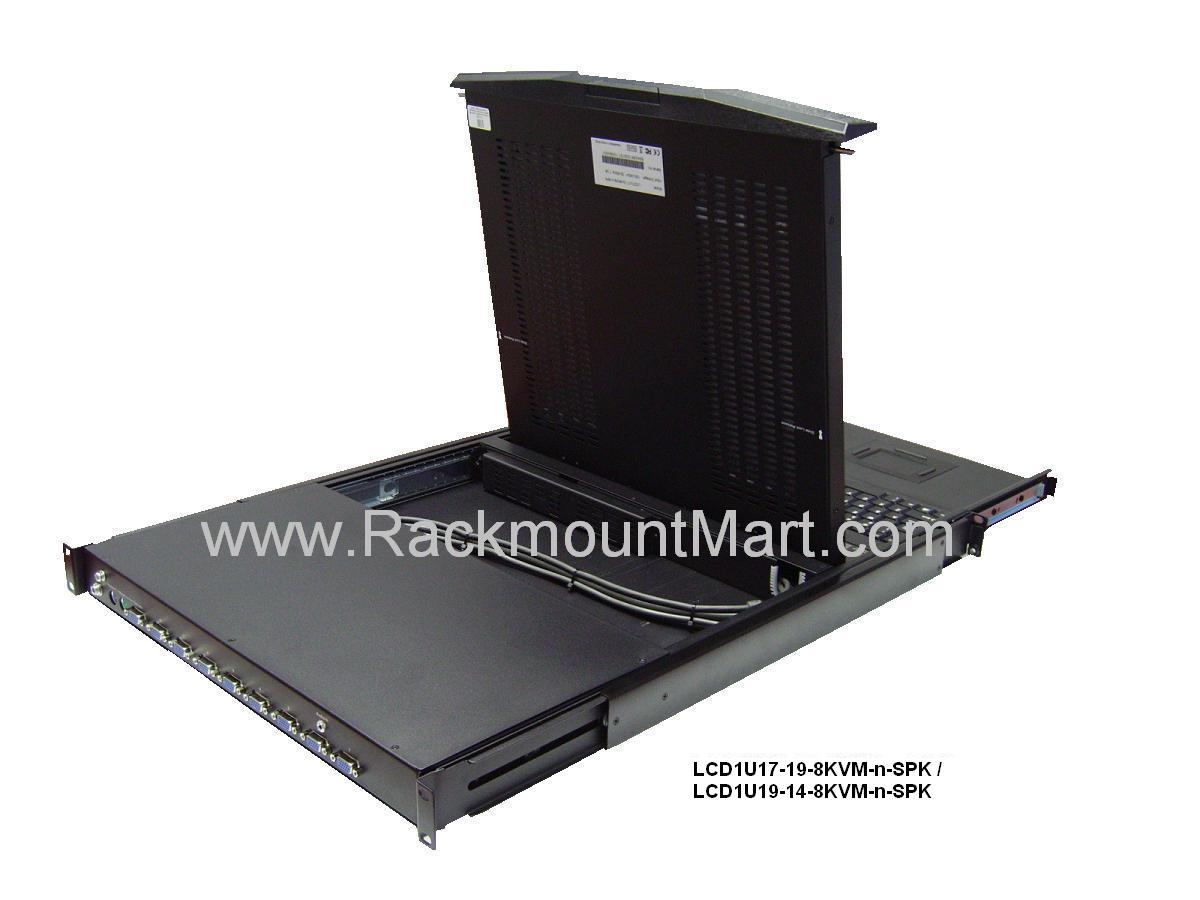

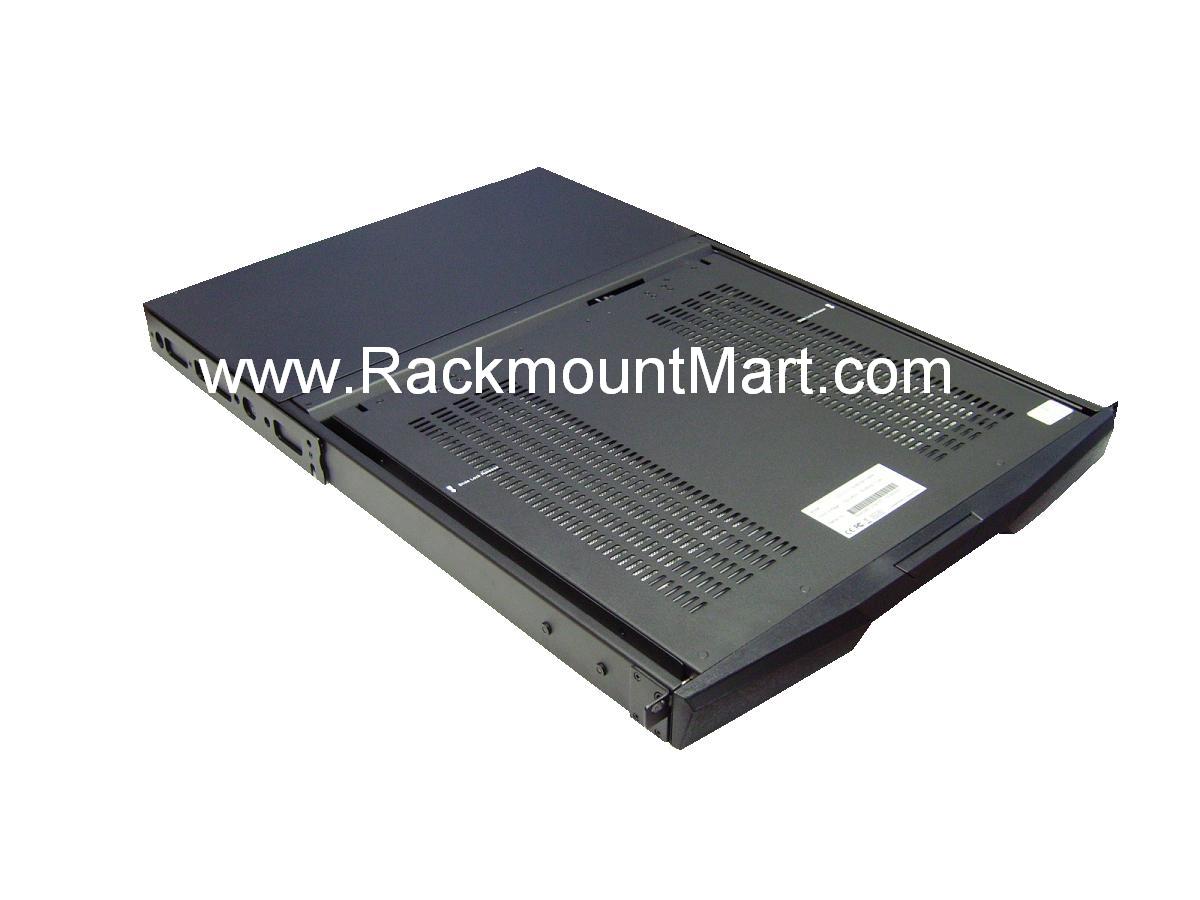

Click on the following photos for more enlarged views :

Update: The touchpad is changed from 3 button to 2 button. For more details, please click here

Features :

• LED technology
• Low power consumption
• Long lifetime up to 70,000 hours
• Minimum EMI emissions
• Operation temperature at -20ºC
• High shock & vibration resistance
• Mercury free
• Slim size
• 1U keyboard LCD drawer with either 17" LCD
• Combo interface either PS/2 or USB input to the LCD drawer
• Mix PS/2, USB & SUN with multi-Platform switch capability
• "One Man" installation slides for easy, quick installation
• Slide rails with fixed positions to prevent drawer movement when typing
• Enhanced aesthetics with new molded front panel and two point lock

Option :

• Composite (BNC or RCA ) Video + S-Video • DVI-D • DC Power input • Audio

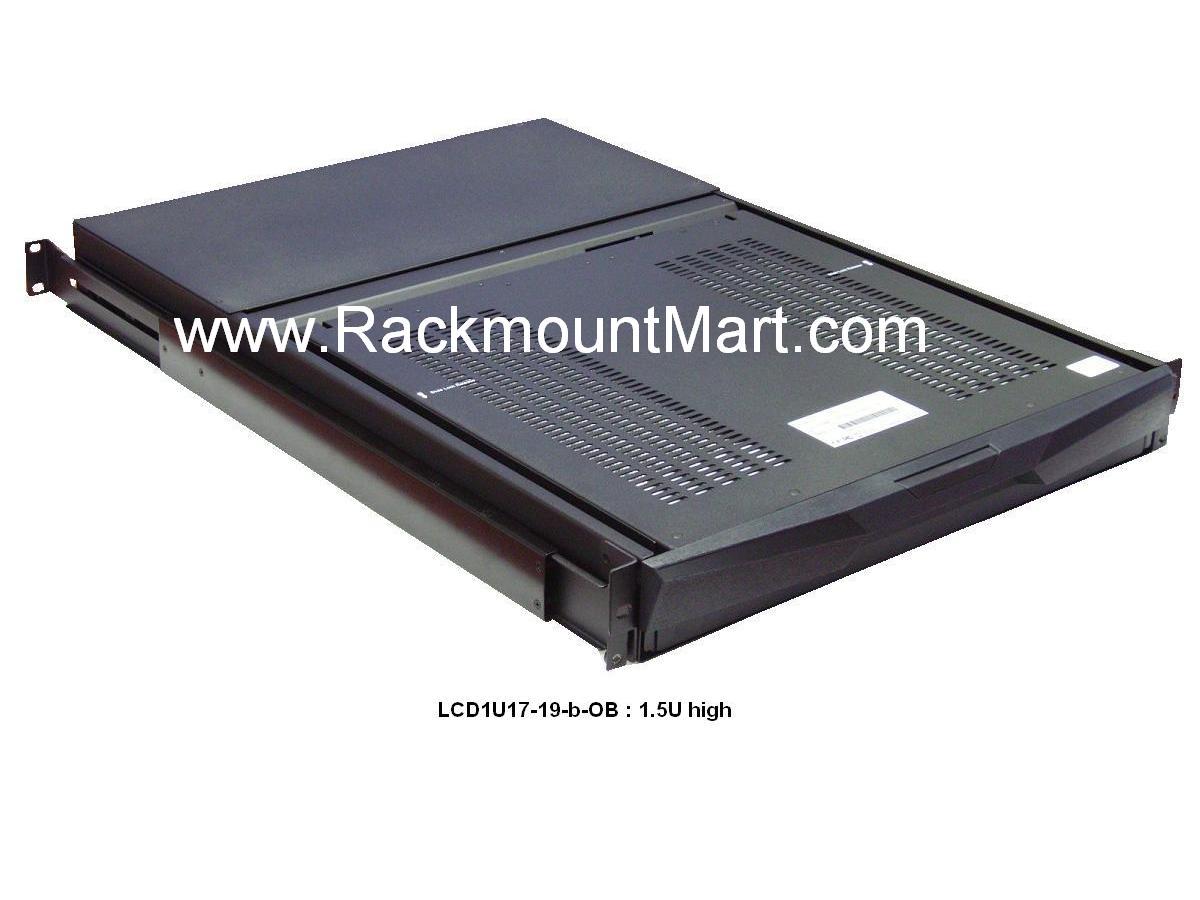

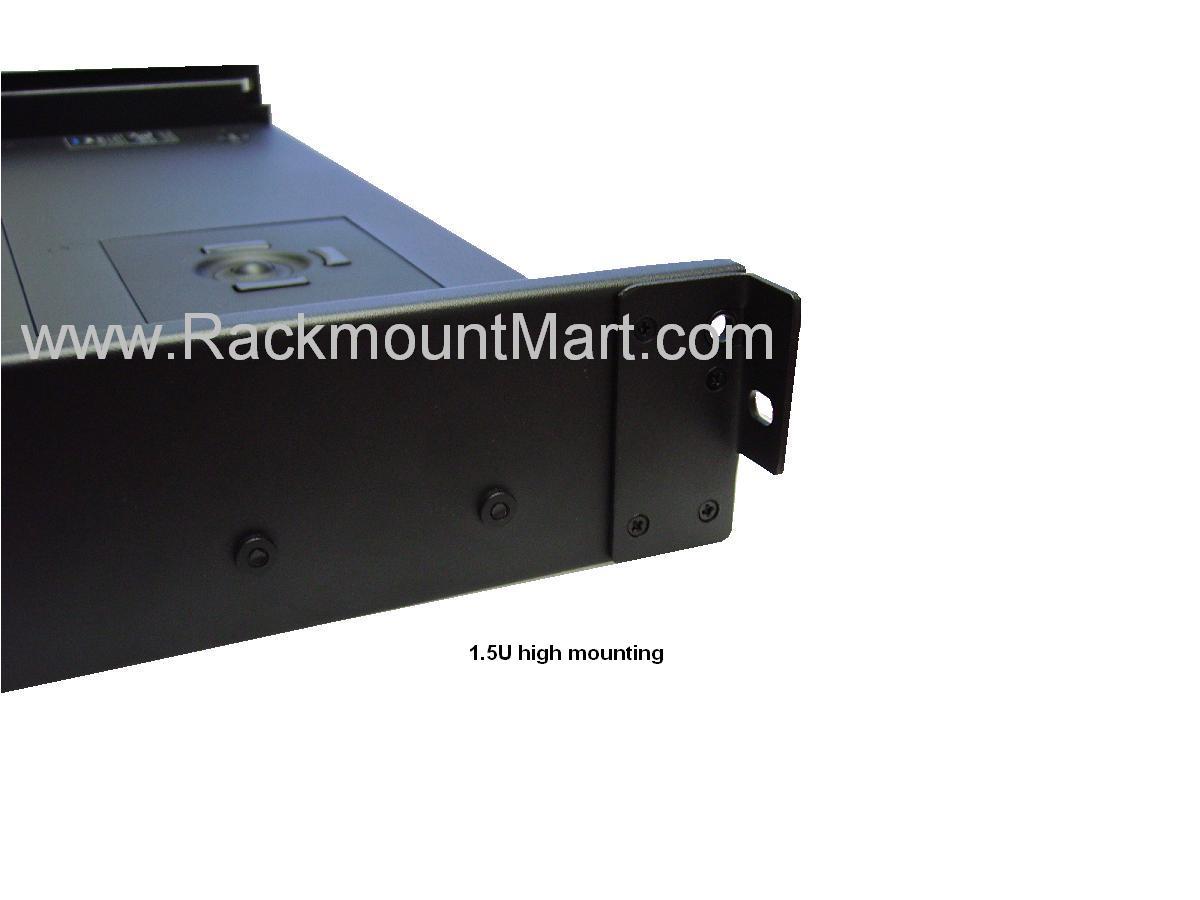

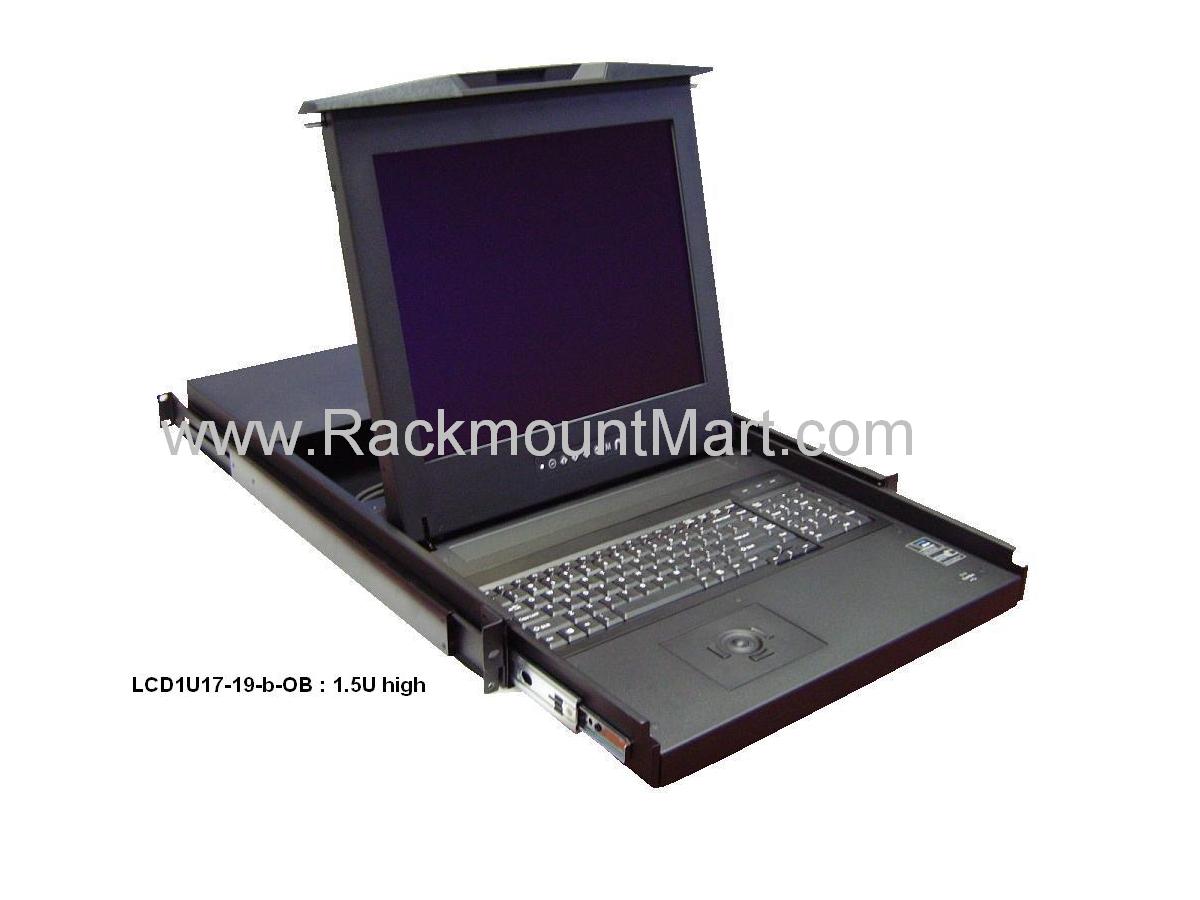

• Touch Screen (***the height will be changed from 1U to 1.5U with touch screen option added )

Optical Bonding Option Anti-reflective Film Option

Yes No Yes No

1mm thick optically clear adhesive for touchscreen or 4mm temper glass 0.1mm thick optical interference coating film

Designed to provide visual enhancement

No air gap between the cover glass & LCD panel Cost effective vacuum laminated technology

Greatly reduced specular & diffuse reflection

Increased LCD durability under vibration Increased contrast for improved readability

Eliminate residual and ghost images Easy clean surface

Back to top

Ordering information

KVM Support Keyboard Type Part # Description

NO KVM ( Single Port ) ** with Built-in Combo PS2 & USB interface

Single Port for DB-15 PS2
connection with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-n
Price : $1712 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable

104 keys KB KB w/ Trackball LCD1U17-19-b
Price : $1712 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with otebook KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable

Single Console KVM ( Local console, 8 / 16 / 32 port KVM )

DB-15 KVM ( Local console DB-15 KVM)

Local console DB-15
8 Port PS2 KVM Switch 104 keys KB KB w/ Touchpad LCD1U17-19-8KVM-n
Price: $2008 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cable

104 keys KB KB w/ Trackball LCD1U17-19-8KVM-b
Price: $2008 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cable

Local console DB-15
16 Port PS2 KVM Switch 104 keys KB KB w/ Touchpad LCD1U17-19-16KVM-n
Price: $2212 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cable

104 keys KB KB w/ Trackball LCD1U17-19-16KVM-b
Price: $2212 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cable

Local console DB-15
8 Port COMBO USB/PS2 KVM Switch 104 keys KB KB w/ Touchpad LCD1U17-19-8KVM-n-u
Price: $2094 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local console DB-15 8 port COMBO USB/PS2 KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable

104 keys KB KB w/ Trackball LCD1U17-19-8KVM-b-u
Price: $2094 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local console DB-15 8 port COMBO USB/PS2 KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable

Single console DB-15
16 Port COMBO USB/PS2 KVM Switch 104 keys KB KB w/ Touchpad LCD1U17-19-16KVM-n-u
Price: $2294 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local console DB-15 16 port COMBO USB/PS2 KVM switch & Local console 16 x 6-ft 4-in-1 Combo KVM cable

104 keys KB KB w/ Trackball LCD1U17-19-16KVM-b-u
Price: $2294 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local console DB-15 16 port COMBO USB/PS2 KVM switch & 16 x 6-ft 4-in-1 Combo KVM cable

High Density CAT5 KVM ( Local console CAT5 KVM)
** with Built-in Combo PS2 & USB interface

Local console High Density 8 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U8KVM-n
Price: $2371 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local console 8 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U8KVM-b
Price: $2371 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local console 8 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

Local console High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U16KVM-n
Price: $2455 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U16KVM-b
Price: $2455 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

Local console High Density   32 Port High Density High Density CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U32KVM-n
Price: $2962 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U32KVM-b
Price: $2962 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )

2 Console KVM ( Local & Remote Console , 8 / 16 / 32 port KVM)

DB-15 KVM ( 2 Consoles, Local & Remote DB-15 KVM )

2 Consoles ( Local + Remote console ) DB-15 8 Port Combo KVM Switch 104 keys KB KB w/ Touchpad LCD1U17-19-8KVM2-n
Price: $2321 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local + Remote console DB-15 CAT5 up to 500ft away w/ 8 ports Combo KVM switch & 8 x 6-ft 4-in-1 Combo cable

104 keys KB KB w/ Trackball LCD1U17-19-8KVM2-b
Price: $2321 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local + Remote console DB-15 CAT5 up to 500ft away w/ 8 ports Combo KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable

2 Consoles ( Local + Remote console ) DB-15 16 Port COMBO USB/Combo KVM Switch 104 keys KB KB w/ Touchpad LCD1U17-19-16KVM2-n
Price: $2521 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local + Remote console DB-15 CAT5 up to 500ft away w/ 16 ports Combo KVM switch & 16 x 6-ft 4-in-1 Combo KVM cable

104 keys KB KB w/ Trackball LCD1U17-19-16KVM2-b
Price: $2521 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local + Remote console DB-15 CAT5 up to 500ft away w/ 16 ports Combo KVM switch & 16x 6-ft 4-in-1 Combo KVM cable

2 Consoles ( Local + IP console ) DB-15 8 Port Combo KVM Over IP Switch 104 keys KB KB w/ Touchpad LCD1U17-19-8KVM2IP-n
Price: $2480 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local + Remote console DB-15 8 port KVM Over IP switch w/ Combo USB/PS2 interface & 8 x 6-ft 4-in-1 ComboKVM cable

104 keys KB KB w/ Trackball LCD1U17-19-8KVM2IP-b
Price: $2480 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local + Remote console DB-15 8 port KVM Over IP switch w/ Combo USB/PS2 interface & 8 x 6-ft 4-in-1 ComboKVM cable

2 Consoles ( Local + IP console ) DB-15 16 Port Combo KVM Over IP Switch 104 keys KB KB w/ Touchpad LCD1U17-19-16KVM2IP-n
Price: $2680 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & Local + Remote console DB-15 16 port KVM Over IP switch w/ Combo USB/PS2 interface & 16 x 6-ft 4-in-1 ComboKVM cable

104 keys KB KB w/ Trackball LCD1U17-19-16KVM2IP-b
Price: $2680 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & Local + Remote console DB-15 16 port KVM Over IP switch w/ Combo USB/PS2 interface & 16 x 6-ft 4-in-1 ComboKVM cable

High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM )
** with Built-in Combo PS2 & USB interface

2 Consoles ( Local + Remote console ) High Density 8 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U8KVM2-n
Price: $2598 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & 2 consoles (Local + Remote) with 8 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U8KVM2-b
Price: $2598 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & 2 consoles (Local + Remote) with 8 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

2 Consoles ( Local + Remote console ) High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U16KVM2-n
Price: $2682 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U16KVM2-b
Price: $2682 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

2 Consoles ( Local + Remote console ) High Density 32 Port High Density CAT.5 KVM Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U32KVM2-n
Price: $3189 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U32KVM2-b
Price: $3189 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )

2 Consoles ( Local + IP console ) High Density
8 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U8KVM2IP-n
Price: $2758 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & 2 consoles (Local +IP) with 8 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U8KVM2IP-b
Price: $2758 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & 2 consoles (Local +IP) with 8 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

2 Consoles ( Local + IP console ) High Density
16 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U16KVM2IP-n
Price: $2841 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U16KVM2IP-b
Price: $2841 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )

2 Consoles ( Local + IP console ) High Density
32 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface 104 keys KB KB w/ Touchpad LCD1U17-19-U32KVM2IP-n
Price: $3348 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & touchpad & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )

104 keys KB KB w/ Trackball LCD1U17-19-U32KVM2IP-b
Price: $3348 1U Sunlight LCD :17" TFT LCD Monitor Keyboard Drawer with 104 keys KB KB & trackball & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface  (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )

Option

-12VDC
Price : $171 Add 12V DC power supply

-24VDC
Price : $171 Add 24V DC power supply

-48VDC
Price : $171 Add 48V DC power supply

-BNC
Price : $114 Add Composite Video (RCA) + S-video

-AV
Price : $114 Add Composite Video (BNC) + S-video

-DVI
Price : $64 Add DVI-D Input

-TRS
Price : $243 Add e-Resistive touchscreen + Serial controller (the Height changed from 1U to 1.5U)

-TRB
Price : $243 Add e-Resistive touchscreen + USB controller (the Height changed from 1U to 1.5U)

-TCS
Price : $421 Add e-Capacitive touchscreen + Serial controller (the Height changed from 1U to 1.5U)

-TCB
Price : $421 Add e-Capacitive touchscreen + USB controller (the Height changed from 1U to 1.5U)

-SPK
Price : $114 Add speaker
