                      1U Rack Consoles LCD Monitor Keyboard Drawer  :
                                                 Part #  LCD1U19-03

1U Rack mounting 19" Samsung TFT LCD Monitor Keyboard Drawer
with full "Unix Style" Keyboard with Numerical Pad and LCD Support Arm

Also known as: rackmount lcd monitor drawer, rack mount LCD monitor drawer, rackmount tft monitor drawer, fixed rackmount lcd monitor drawer , tft rackmount lcd monitor drawer, flat panel monitor drawer, rack mount monitor drawer, active matrix monitor drawer.
General Information

Form Factor

1U Rack mounting on slide-out rails,
Short Depth

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

Server Side Interface

HD15 VGA, 6-pin Mini DIN for
PS/2 KB/MS
                                                  LCD Screen

LCD Type

Samsung Grade A 17" Industrial
              Active Matrix TFT LCD Panel

Display Size

 19 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr =1.3ms / Tf = 3.7ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

S-video & Composite (RCA) / S-Video & BNC /
DVI-D             ...More Video Input Details

LCD MTBF

50,000 hrs
                                     Keyboard & Pointing Device

Model d

Compact KB w 17 numeric keypad &
3-button Trackball

Model t

Compact KB w 17 numeric keypad & 2-button Touchpad

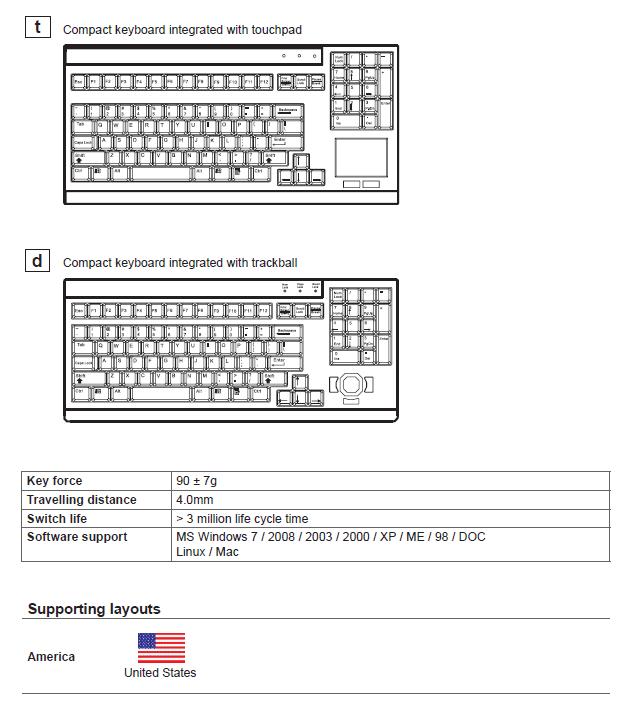

                            ...More Keyboard Details
                                Power Supply



 -Remote adapter : 110V - 220 V AC Input ,
 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
 10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
 6ft / 182cm
-Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V / 12V DC
  input

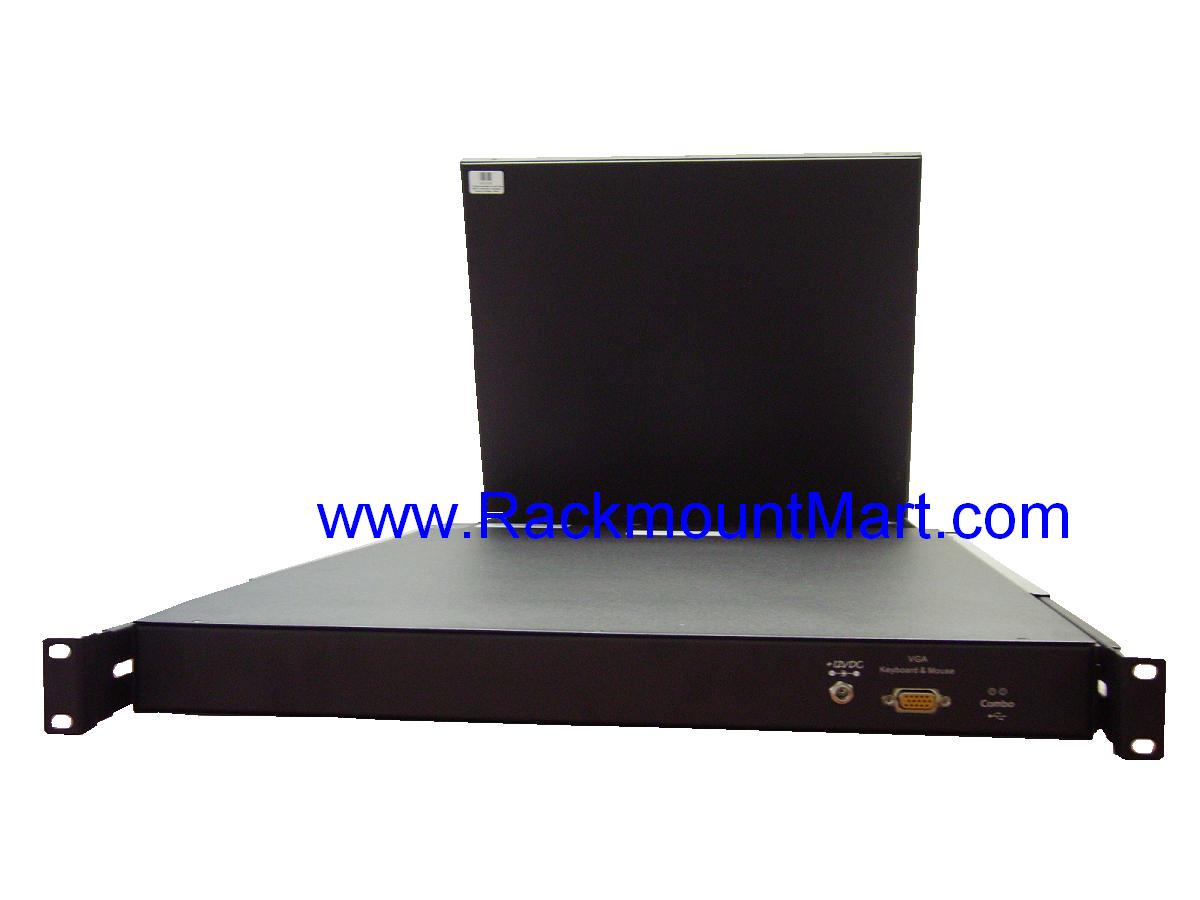

                                 Rear I/O Connector



 Console port     :  HD15 female
 DC power input :  Plug-round type

                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
   Shock  10G peak acceleration
 (11ms duration)
   Vibration  5~500Hz, 1G RMS random vibration
                                  Mechanical

Product Dimension

17.4"(W) x 1.73"(H) x 27.6"(D)  /
 44.2(W) x 4.4 (H) x 70(D)cm
Product Weight  Approximately 40 lbs / 18kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
           FCC , CE , VCCI

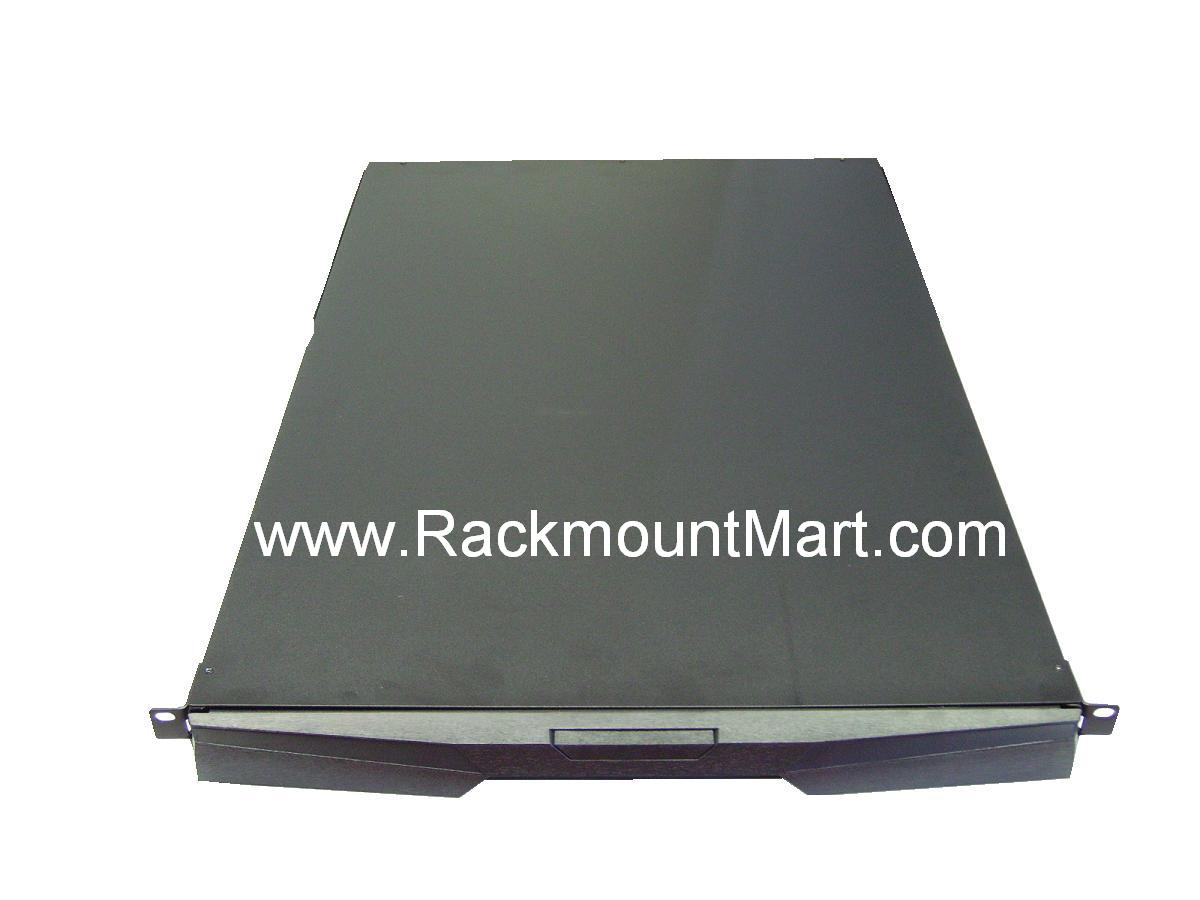

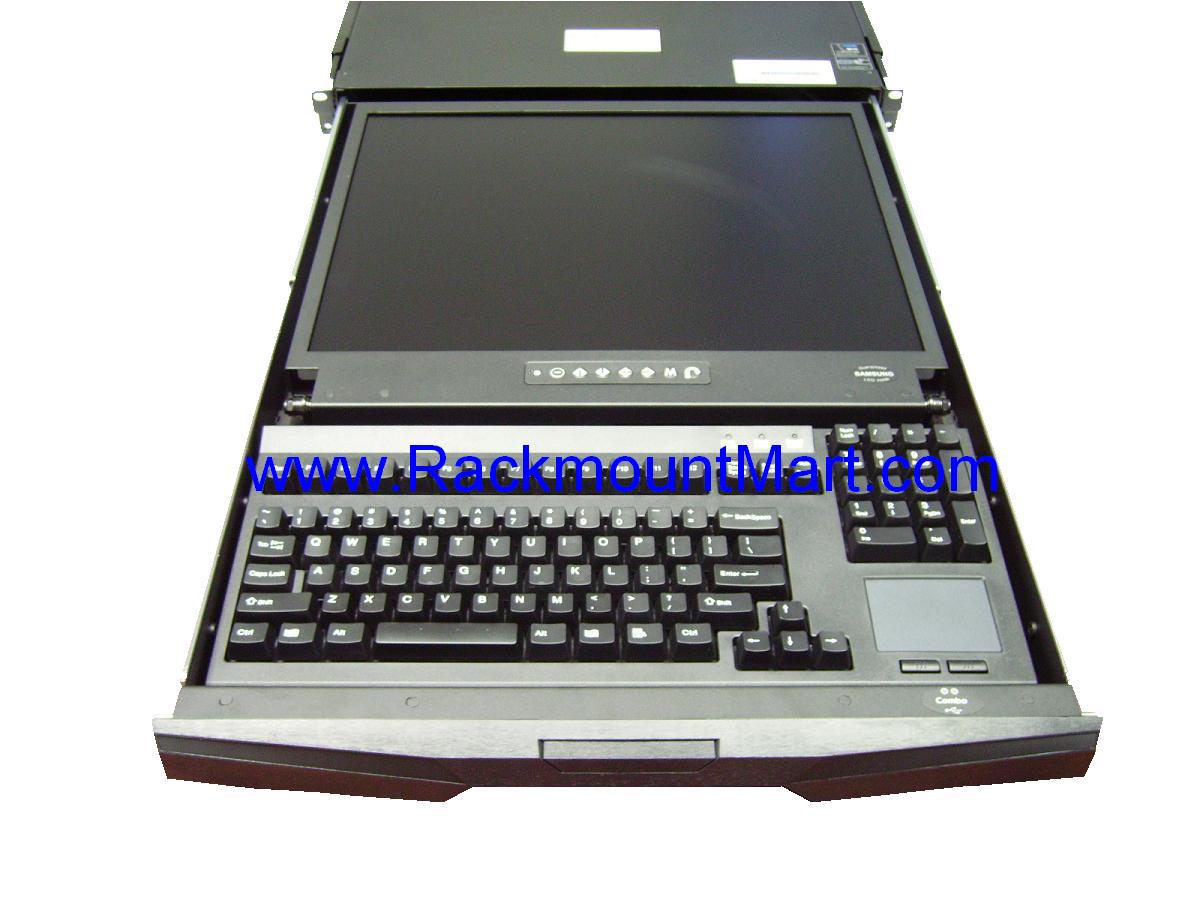

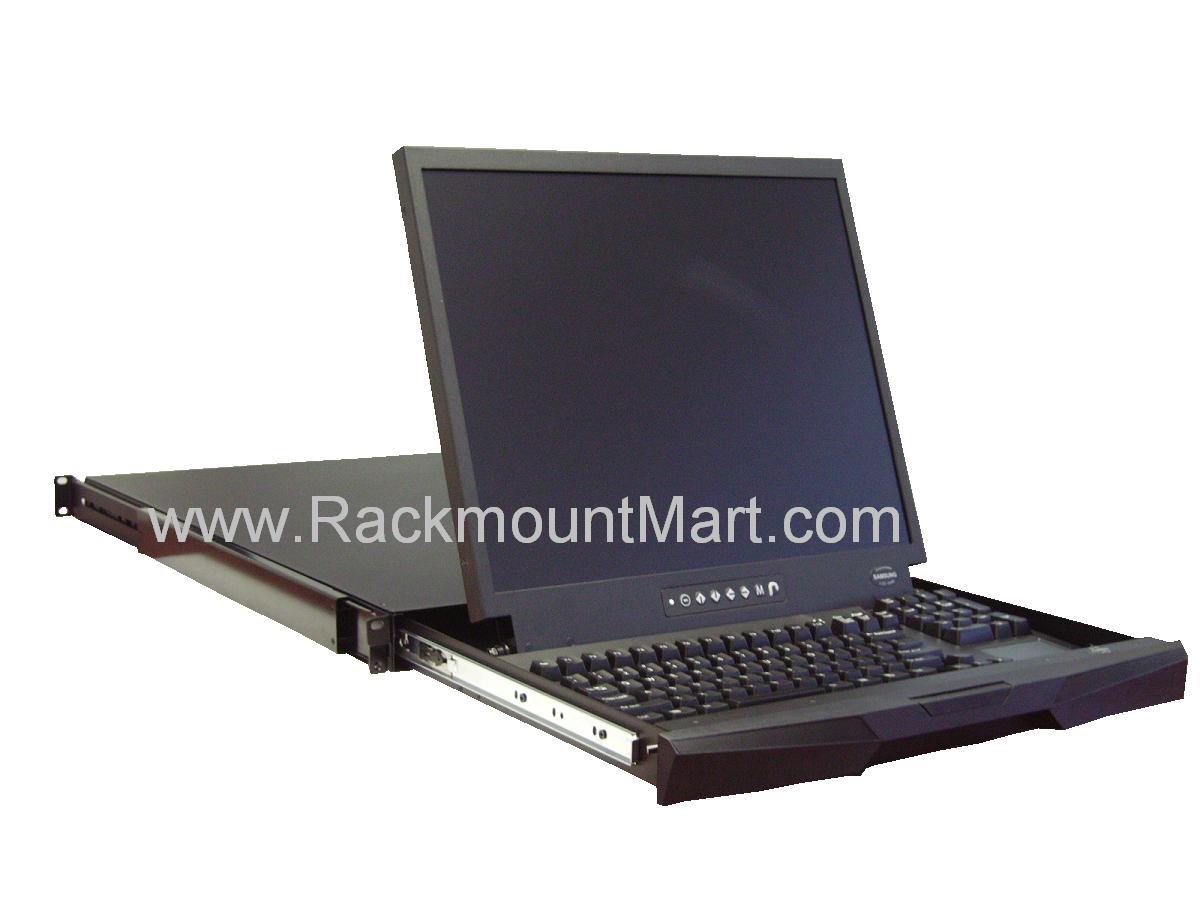

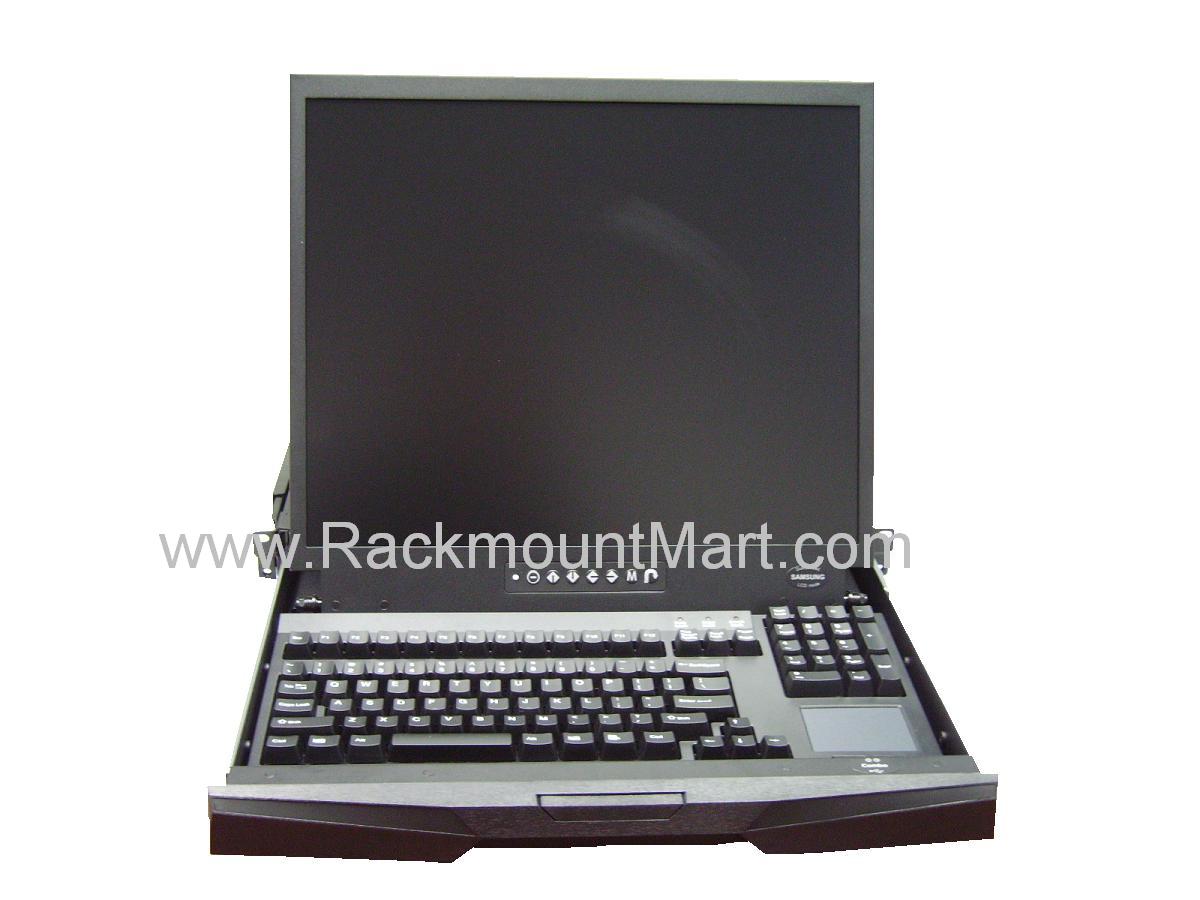

 Front View of LCD1U19-03


*click on photo for enlarged view

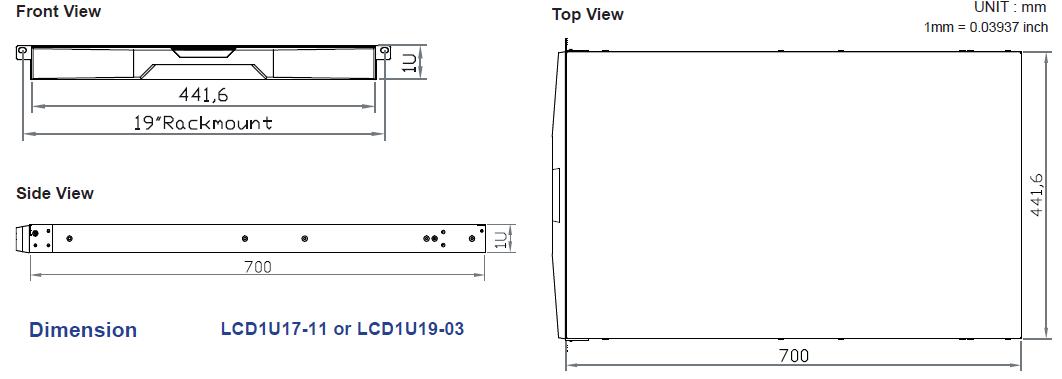

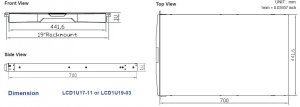

  Dimension



      *click on above pictures for enlarged views

        User Manual



       Single Sheet


Free Ground Shipping( A $55 Value) details>>


Optional Peripheral & Accessory
- S-Vdieo + Composite Video (BNC or RCA) / DVI-D
- HDMI
- Touch screen
- DC Power Input ( 12V / 24V / 48V )
- KVM Cables & Cascade Cables in Various Length
- KVM Extender        -IP KVM Extender

 Customer who ordered this product may also order these :
- KVM Switch
- PDU ( Power Distribution Unit )
- Server Rack Cabinet
- 4 Post Rack
- Wall Rack Mount
- Rack Shelves
- Rack Drawer
- Power Strips
- Rack Cooling Fan

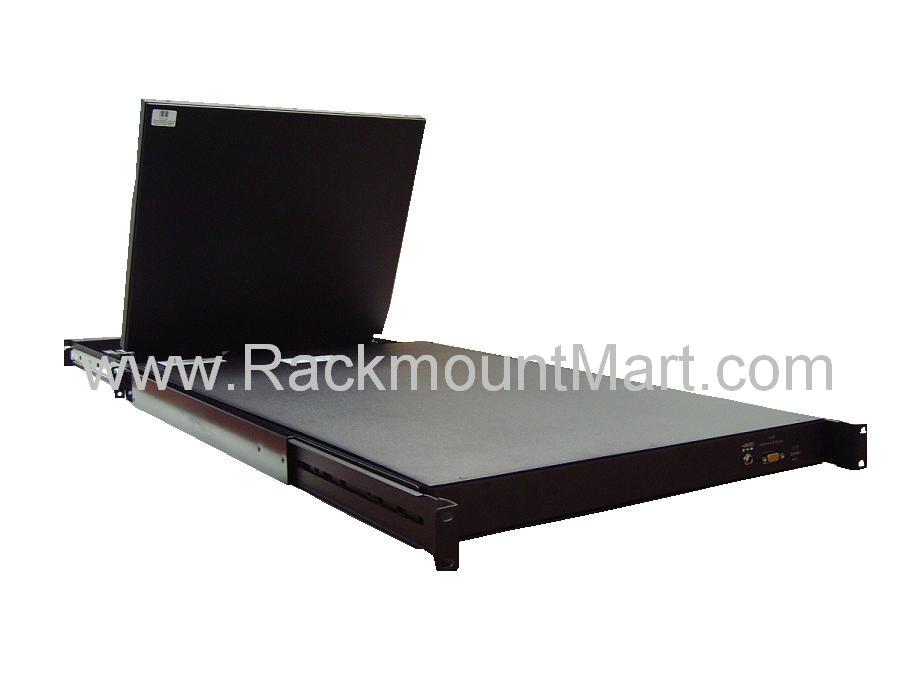

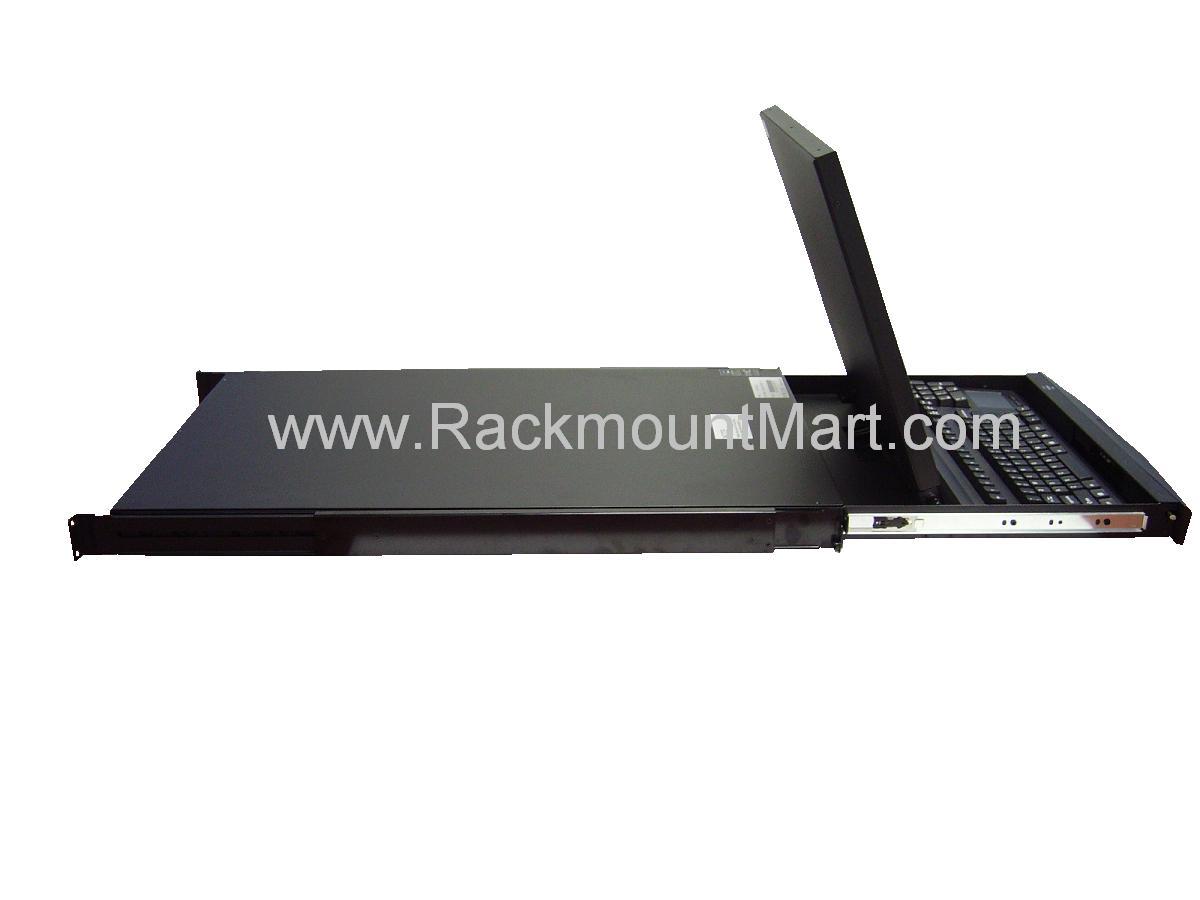

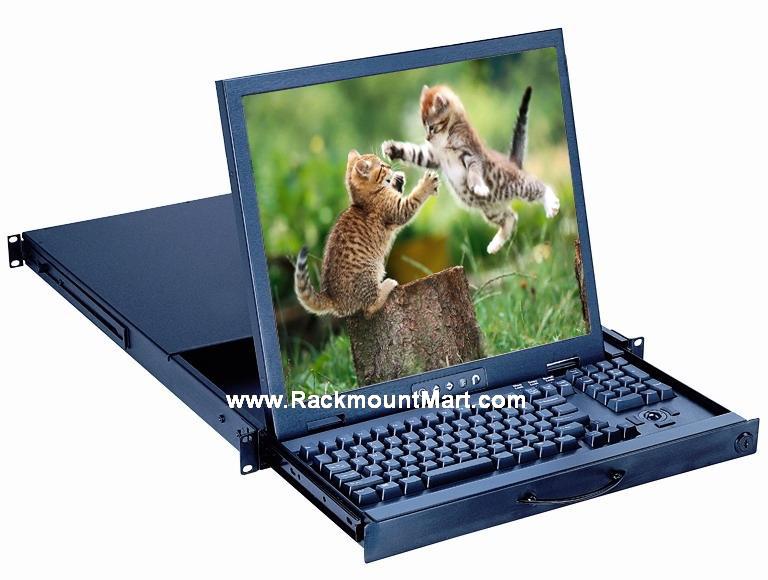

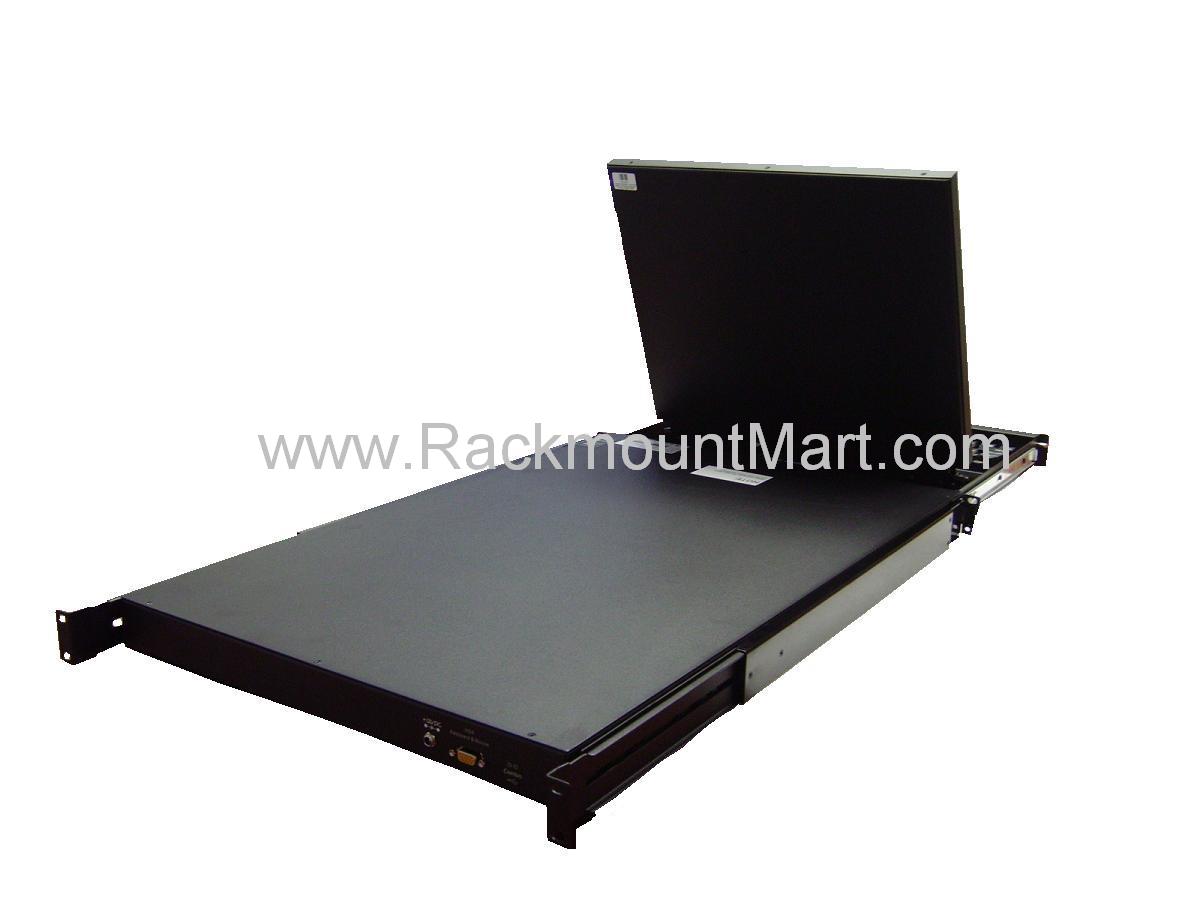

Click on the following photos for more enlarged views






LCD Drawer & KVM Benefits :

  • 1U unit with "Unix Style" Keyboard with numerical pad

Features :

  • 1U rack mount drawer with SAMSUNG Grade A 19" LCD Panel
  • Combo interface either PS/2 or input to the rack console
  • WITH NEWLY DESIGNED LCD SUPPORT ARM
  • Slide rails with  fixed positions to prevent keyboard movement while typing
  • "One Man" installation slides for easy and quick installation
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Supports AT/XT, PS/2, UNIX, Sun, and Macintosh computers
  • Unique mechanical design to maximize rack mountable space
  • Unique monitor flip-up design allows viewing through closed glass door of cabinet
  • Lightweight aluminum construction - with a black anodize finish
  • Front-access lock for security
  • Large wrist rest area
  • Standard D-sub 15-pin VGA input connector
  • Build in slide rail and mounts easily in any 19 inch cabinet rack
  • EMC shielding around the monitor housing to minimize interference
  • Power saving feature for prolonging life of LCD Panel
  • Built in On Screen Display controlled by integral membrane switches
  • Rear mount bracket included
  • All mounting hardware included
  • Optional S-Video + Composite Video ( BNC or RCA ), DVI-D, DC Input Power , Audio , Touch screen
                                                                                                                                                                            Back to top


ORDERING INFORMATION FOR  LCD1U19-03  -  1U SAMSUNG 19" LCD RACK CONSOLE

 KVM Support  Keyboard Type Part # Description
 NO KVM
Single Port with Combo PS/2 and USB Interface Compact KB w/ Trackball  LCD1U19-03-d
Price : $879		 1U 19" Samsung Panel w/ Compact KB & trackball & 1 x 6-ft 4-in-1 Combo KVM cable
Compact KB w/ Touchpad LCD1U19-03-t
Price : $879		 1U 19" Samsung Panel w/ Compact KB &  touchpad & 1 x 6-ft 4-in-1 Combo KVM cable
Compact KB w/ Trackball  LCD1U19-03-du
Price : $879		 1U 19" Samsung Panel w/ Compact KB & trackball & 1 x 6-ft 4-in-1 Combo KVM cable
Compact KB w/ Touchpad LCD1U19-03-tu
Price : $879		 1U 19" Samsung Panel w/ Compact KB &  touchpad & 1 x 6-ft 4-in-1 Combo KVM cable
Option
-12VDC
Price : $171		 Add 12V DC power input   (the depth will be 750mm/29.5")
-24VDC
Price : $171		 Add 24V DC power input   (the depth will be 750mm/29.5")
-48VDC
Price : $171		 Add 48V DC power input   (the depth will be 750mm/29.5")
-BNC
Price : $114		 Add Composite Video (BNC) + S-video
-AV
Price : $114		 Add Composite Video (RCA ) + S-video
-HDMI
Price : $114		 Add HDMI Input with built in Speaker
-DVI
Price : $64		 Add DVI-D Input   (the depth will be 750mm/29.5")
-SPK
Price : $114		 Add speaker
