Home >> Rackmount Keyboard Drawer / KVM Switch / KVM Extender >>

1U RACKMOUNT KEYBOARD DRAWER / KVM SWITCH /KVM Extender :
Part # LCDK1002

1U Rackmount Keyboard with Lock Optional Trackball / Touchpad / Gel Wrist Pad
with Combo PS2 / USB interface & Combo PS2 / USB Cable

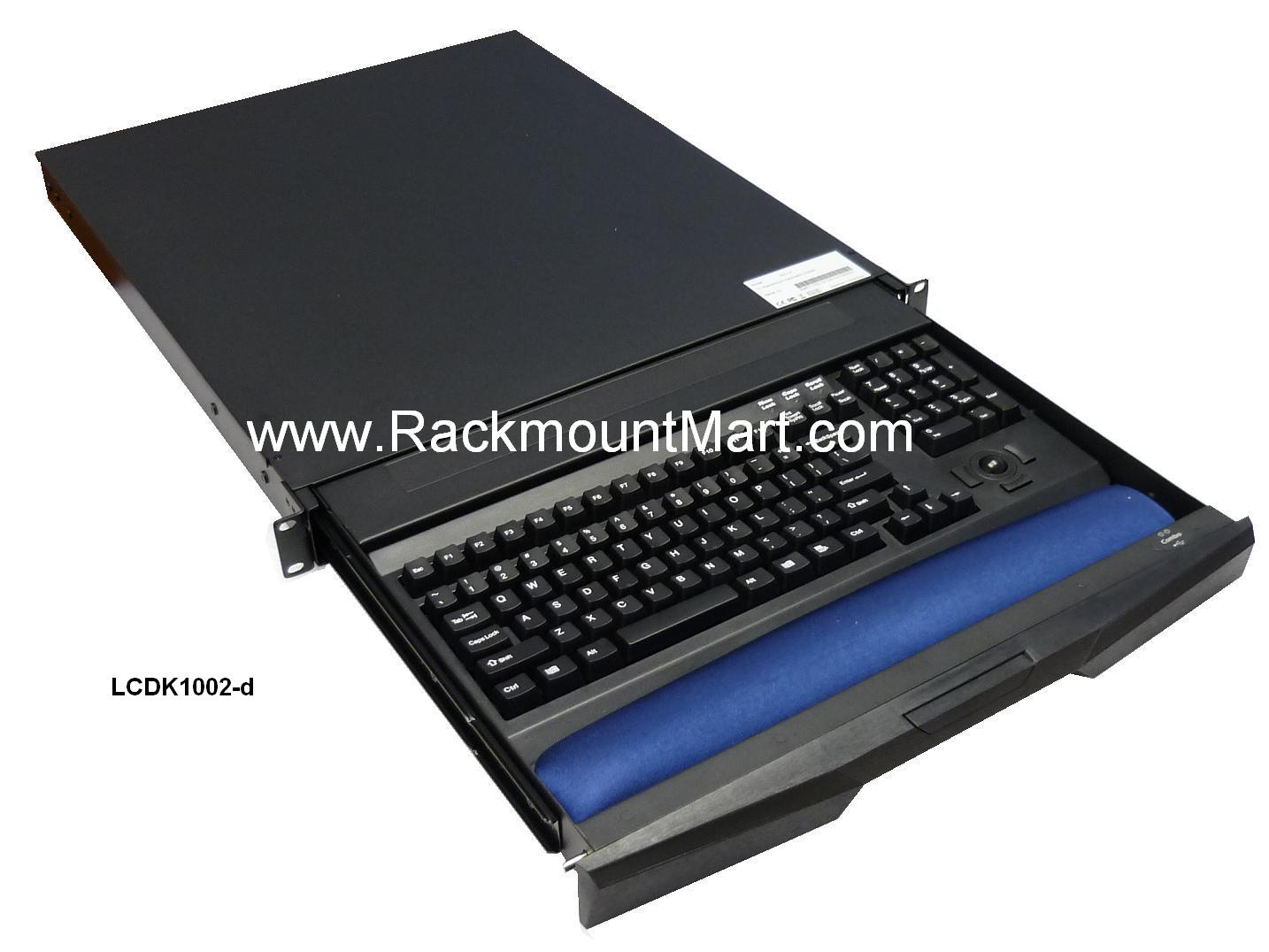

Side View of LCDK1002-d	Side View of LCDK1002-b
Side View of LCDK1002-n	Side View of LCDK1002-t
*Click on all photos for enlarged views *
User Manual	Product Sheet

General Information
Form Factor	1U Rack mounting on slide-out rails
Compatibility	Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Rack Mounting	Adjustable ranges from 15.3" to 31.3" (390 to 795mm) Dimension Diagram
Keyboard & Pointing Device
Model n	Notebook type KB w/ 2-button Touchpad
Model b	Notebook type KB w/ 3-button mini Trackball
Model c	Cherry type KB w/ 2-button Trackball

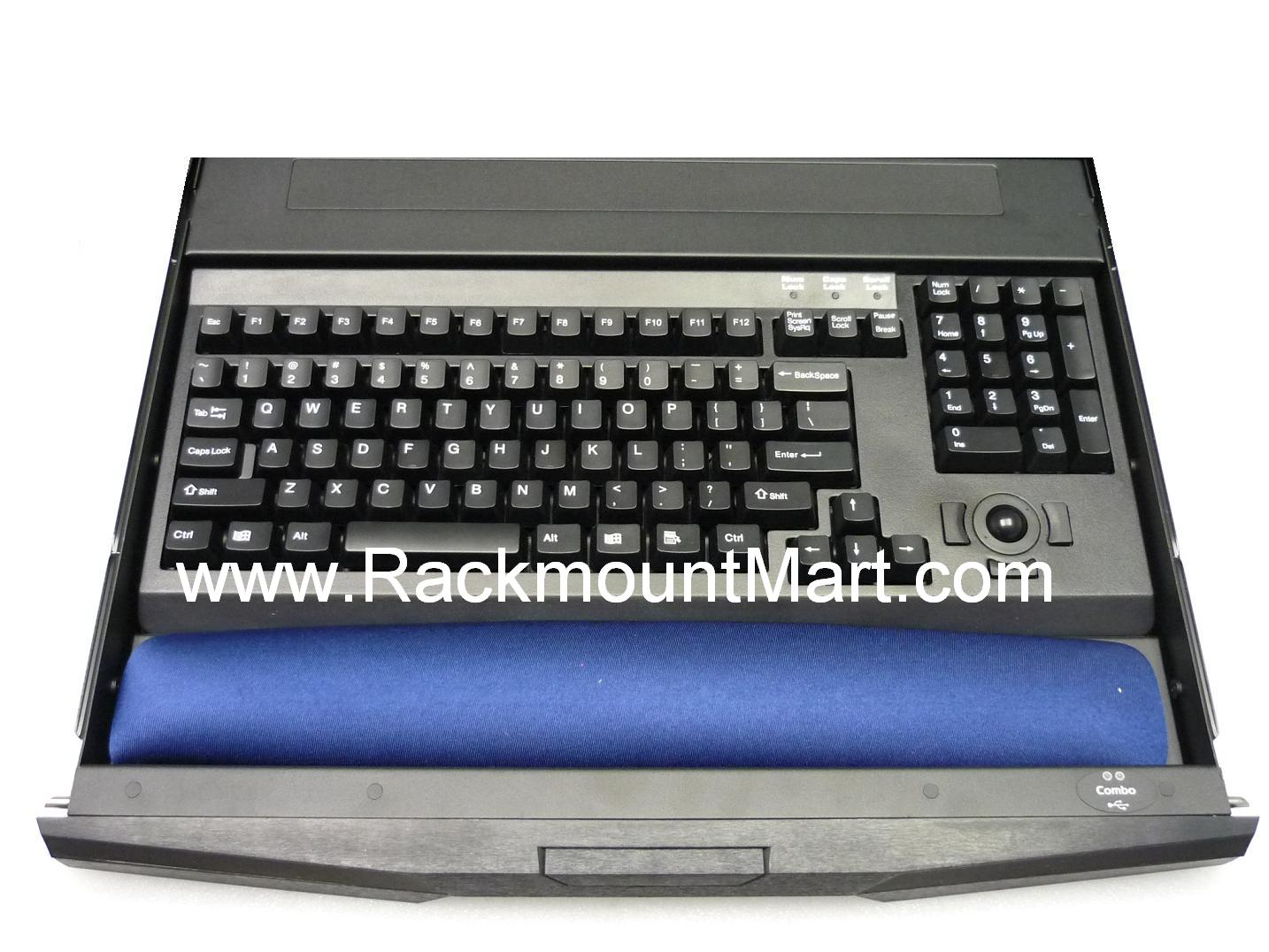

Model d	Compact KB w/ 17-key numeric keypad and 3-button Trackball

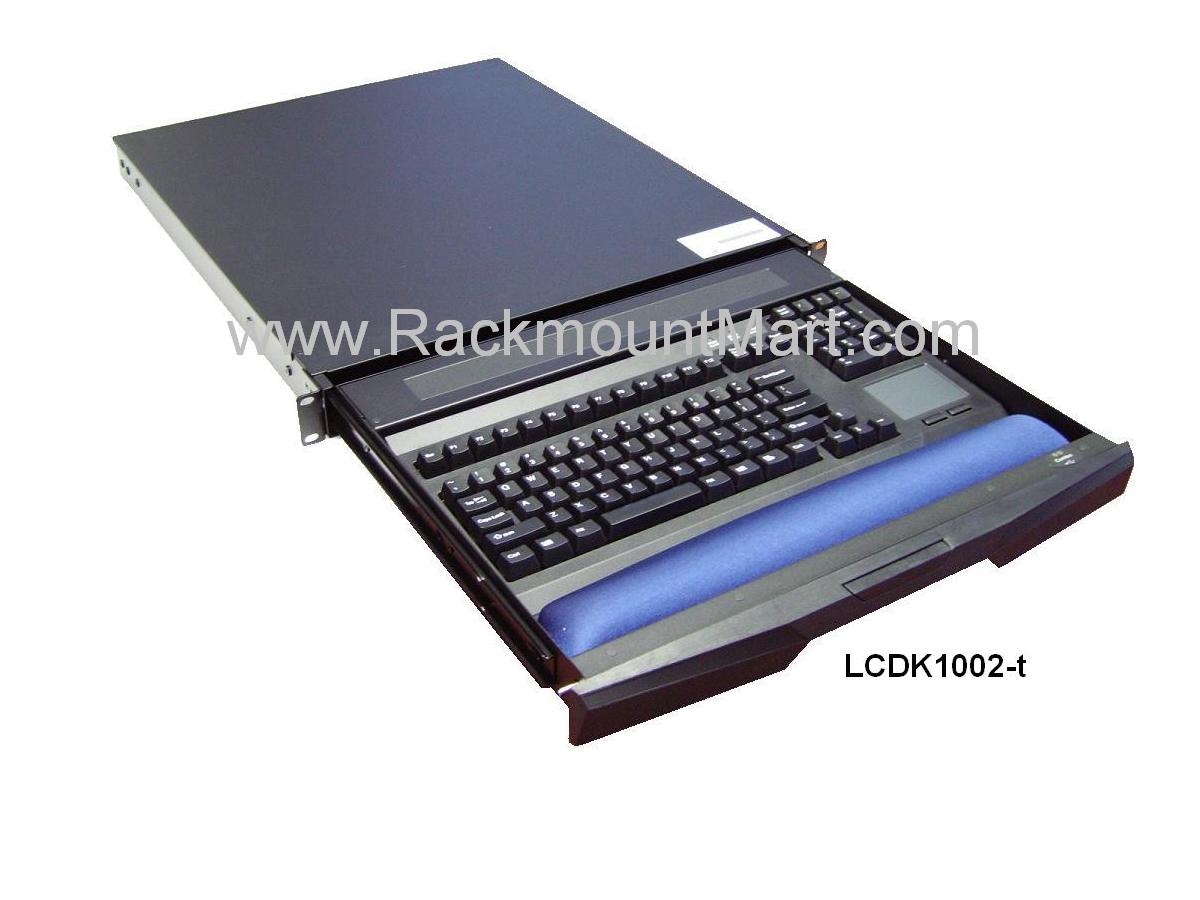

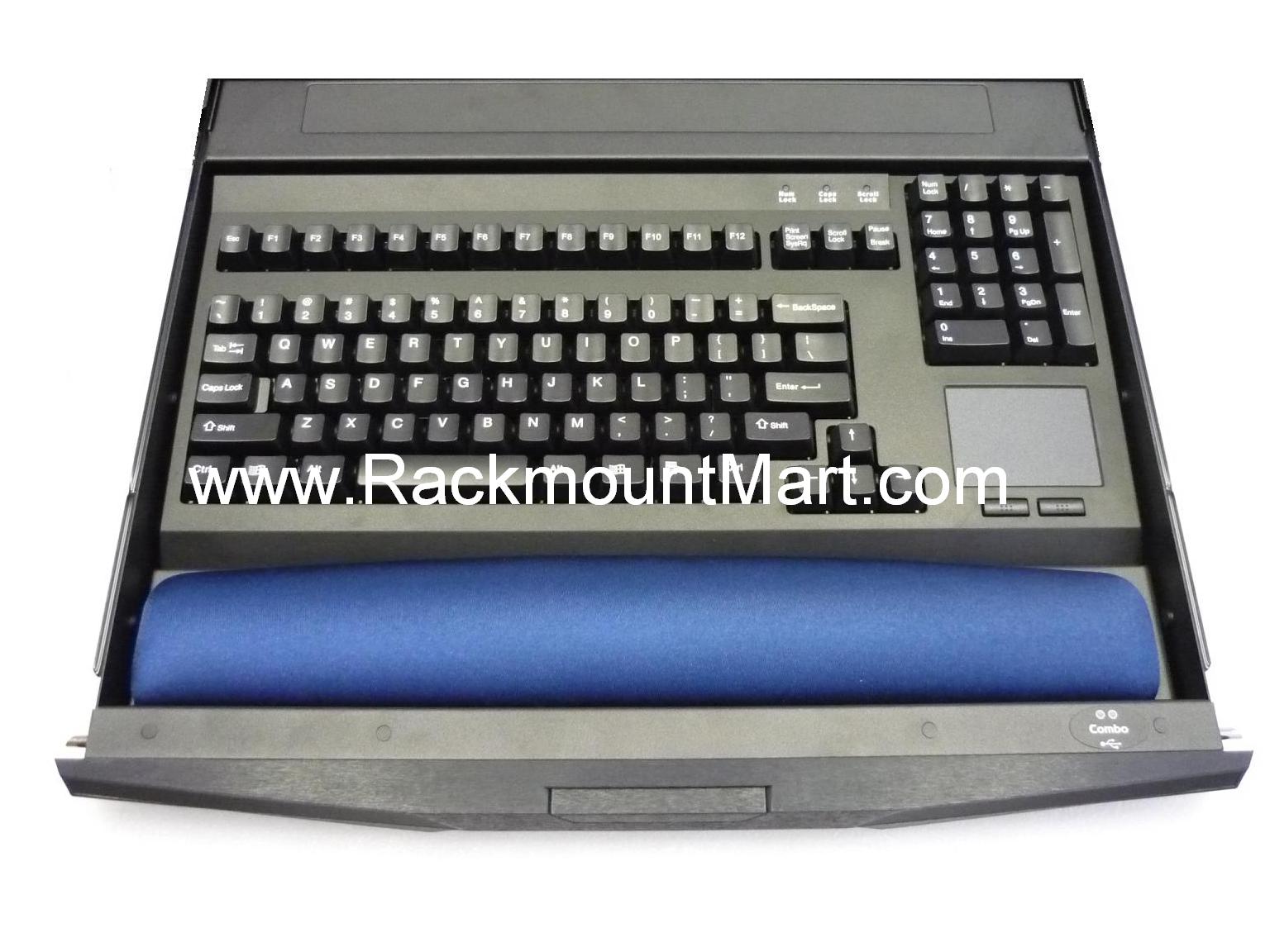

Model t	Compact KB w/ 17-key numeric keypad and 2-button Touchpad
	Keyboard Details
Interface
	Combo PS2 / USB Type Interface
Rear I/O Connector
	Console port : HD15 female DC power input : Plug-round type
Regulatory Approval
	FCC , CE , VCCI ,
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -25 to 65 Degree Celsius (Storage)
Relative Humidity	90%, non condensing
Shock	50G peak acceleration (11ms, half since wave)
Vibration	58~500Hz/ 0.98G (11min/ cycle)
Mechanical
Product Dimension	17.4"(W) x 1.75"(H) x 21.6" (D) / 44.2(W) x 4.45(H) x 55(D)cm
Product Weight	Approximately 26.4 lbs / 12kg
Relative Humidity	90%, non condensing
Customer who ordered this product may also order these :
- Rack LCD Monitors	- Equipment Rack / Server Rack
- Rack KVM Switch	- Rack Shelves
- PDU ( Power Distribution Unit )	- Rack Storage Drawer
- Equipment Rack	- Power Strips
- 4 Post Open Rack	- Rack Cooling Fan
- Wall Rack Mount

Front View of LCDK1002-n

More Photos
(click on the photos below for enlarged views )









Update: The touchpad is changed from 3 button to 2 button. For more details, please click here

Features:

Rugged metal construction
Standard 19". 1U height rackmount keyboard drawer
Adjustable mounting brackets from 15.35" to 31.3" (390to 795mm), fits multiple depth cabinets between 650mm and 1000mm
COMBO INTERFACE , EITHER PS2 OR USB INPUT
Lightweight aluminum construction - with a black anodize finish
Fully compatible to IBM/AT keyboard
Stylish front panel with 2 point lock for security
Large padded wrist-rest for Compact keyboard
Slide Rails have fixed position to prevent movement of the keyboard
Ball bearing telescopic slides
15" drawer travel
Supplied with 12V 5A remote power adapter (single power source)
All mounting hardware included

Back to top

ORDERING INFORMATION :

Part Number Description

LCDK1002-b Price : $246
1U Rackmount Keyboard Drawer with notebook keyboard and trackball mouse with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black

LCDK1002-bu Price : $246
1U Rackmount Keyboard Drawer with notebook keyboard and trackball mouse with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
** Notes: LCDK1002-bu is originally the old Part # for the obsolete version of USB interface ONLY . Repeat customers of LCDK1002-bu : if you place order by part # LCDK1002-bu, we will ship you the version of Combo interface , in which either USB or PS2 input can be used .

LCDK1002-d    Price : $238
1U Rackmount Keyboard Drawer w/ compact keyboard and trackball mouse & Gel Wrist Pad with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black

LCDK1002-du Price : $238 1U Rackmount Keyboard Drawer w/ compact keyboard and trackball mouse & Gel Wrist Pad with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
** Notes: LCDK1002-du is originally the old Part # for the obsolete version of USB interface ONLY . Repeat customers of LCDK1002-du : if you place order by part # LCDK1002-du, we will ship you the version of Combo interface , in which either USB or PS2 input can be used .

LCDK1002-n    Price : $246
1U Rackmount Keyboard Drawer w/ notebook KB & touchpad with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black

LCDK1002-nu Price : $246
1U Rackmount Keyboard Drawer w/ notebook KB & touchpad with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
** Notes: LCDK1002-nu is originally the old Part # for the obsolete version of USB interface ONLY . Repeat customers of LCDK1002-nu : if you place order by part # LCDK1002-nu, we will ship you the version of Combo interface , in which either USB or PS2 input can be used .

LCDK1002-t    Price : $238
1U Rackmount Keyboard Drawer with compact keyboard and touchpad mouse & Gel Wrist Pad with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black

LCDK1002-tu Price : $238
1U Rackmount Keyboard Drawer with compact keyboard and touchpad mouse & Gel Wrist Pad with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
** Notes: LCDK1002-tu is originally the old Part # for the obsolete version of USB interface ONLY . Repeat customers of LCDK1002-tu : if you place order by part # LCDK1002-tu, we will ship you the version of Combo interface , in which either USB or PS2 input can be used .

LCDK1002-c Price : $260 1U Rackmount Keyboard Drawer with cherry keyboard and trackball mouse, Lock, black, PS2 interface & PS2 Cable

Back to top
