RACKMOUNT KEYBOARD  DRAWER / KVM SWITCH /KVM Extender
  Model  LCDK5002   (MADE IN USA)

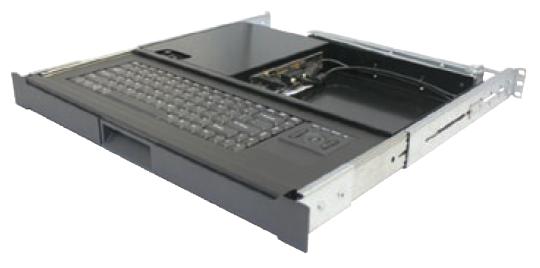

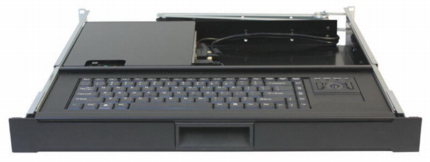

                                  Xymphony 1U Rackmount Compact Keyboard with Computer and optional SSD

LCDK5002-b032 		Data Sheet



  COMPUTER SPECIFICATIONS
   - 1.86 GHz Dual Core Intel N2800 Atom processor.
   - Intel NM10 Express chipset.
   - Intel Graphics Media Accelerator 3650 with: 1 VGA port and 1 HDMI port.
   - Total 6 USB 2.0 ports -
     4 on the internal I/O panel ( 2 are high current for plugging in external DVD and/or Hard Drives )
     and 2 on the back (rear) of the unit.
   - 2 + 2 channel Intel High Definition Audio with multi-streaming.
   - Intel 82574L 10 / 100 / 1000 Mb/ s Ethernet Controller.
   - 4 GB DDR3 1066 memory standard.
   - Internal PCI Express Mini Card connectors for SSD, etc.
   - 110 / 220 VAC 50 / 60 Hz to 5A 12 VDC power supply included.
  TYPICAL KEYBOARD SPECIFICATIONS
  Keys : 87 keys with Windows key
  Rollover : Alpha N-key rollover
  Auto repeat : Yes
  Self Diagnostics : At power on and system reset
  Reliability : > 5M switch life cycles
  GENERAL SPECIFICATIONS
  Dimensions :  19.0" ( W ) x 1.75" ( H ) x 16.00" ( D ) ( 18.75 D w/ Cable Management )
  Slides :  14" ( 16" extension ) Adjustable for 14" to 24" mounting depth.
  Temperature :  Operating : 0°C to 50°C    Storage: -20°C to 60°C
  Humidity :  Operating : 10 to 85% RH Non Condensing ( max )

Gallery



Back to top

ORDERING INFORMATION
Part Number  Description
LCDK5002-b000
 1U Rackmount  Compact Keyboard Drawer with Trackball and 4Gb Memory, no SSD included.
LCDK5001-n000
 1U Rackmount  Compact Keyboard Drawer with Touchpad and 4Gb Memory, no SSD included.
- 32G SSD
 Add 32G SSD
- 64G SSD
 Add 64G SSD
- 120G SSD
 Add 120G SSD
-R
 Add retainers to front panel
-L
 Add locks to front panel
-C
 Add retainer and lock to front panel
