                4U / 6U / 7U/ 8U/ 9U Sunlight Monitor Rack mountable Monitor Panel :
                                                   Part #  LCDR7U19-03

       7U Rack Sunlight Monitor  : SAMSUNG 19 inches Industrial Grade A LCD Widescreen Monitor
                                                                      with LED Technology
  Optional S-Video & Composite Video (RCA or BNC ) / DVI / HDMI / Audio / Quad Screen / Touch Screen /
             DC Power Input  / NEMA 4  IP65 front protection / Optical Bonding / Anti-reflective Film

                                  Sunlight Readable /  Viewable under Ambient Lighting Condition
Panel:Samsung 19"Sunlight Widescreen LCD

Display type

TFT / LCD active matrix color

Resolutions

1440 x 900 SXGA

Response time

Tr =1.3ms / Tf =3.7ms (Typ.)

Contrast ratio

900 : 1 typical

Brightness

800 cd/ m2 typical

Pixel pitch

0.284mm (H) x 0.284mm (W)

Panel color

16.7 million display colors

Viewing angle

160 (Horiz.) / 160 (Vert.)

Back light

4 CCFTs

Video
Horizontal Synchronization : 64-80 KHz (Max.)
Vertical Synchronization : 60-75 Hz (Max.)

Input Signal : Analog RGB 0.7Vp-p

Power Management

VESA DPMS

OSD Control
Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

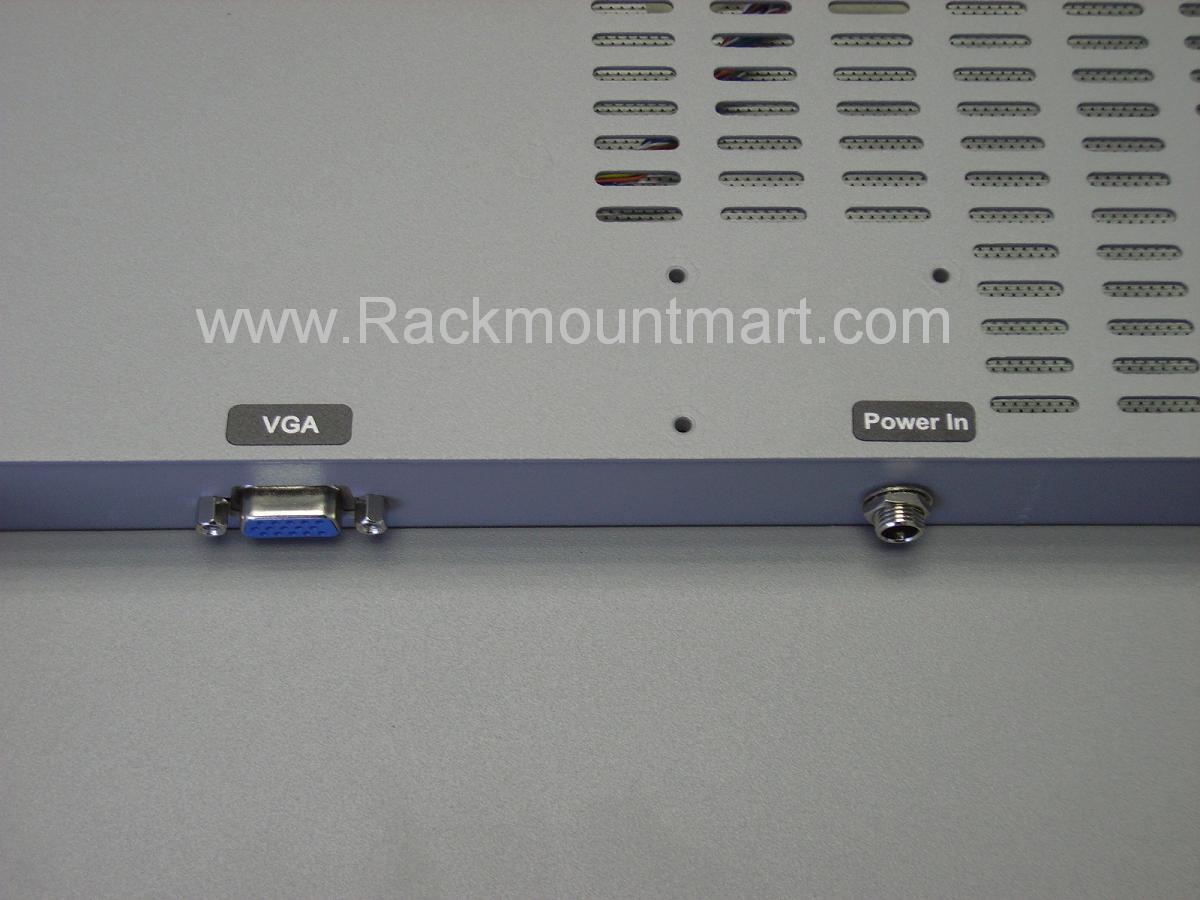

External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector

Product Dimension

48(W) x 31(H) x 5.7(D)cm /
18.9" x 12.2" x 2.2"
   Temperature  -20 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Package Content LCD Monitor x 1 ,  6-ft VGA cable x 1, AC to DC Power adapter x 1 , User Manual x 1
Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D
- HDMI
- Touch screen
- DC Power Input ( 12V / 24V / 48V )

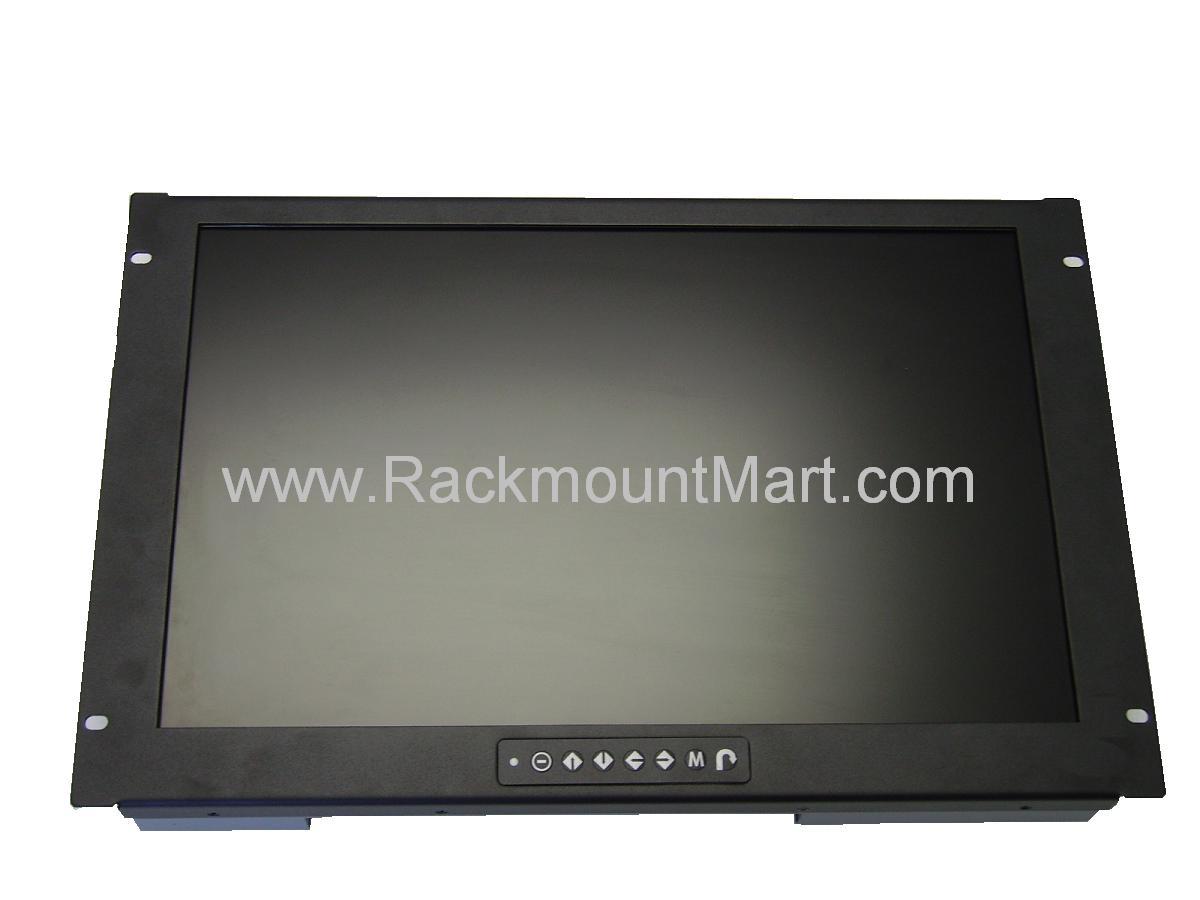

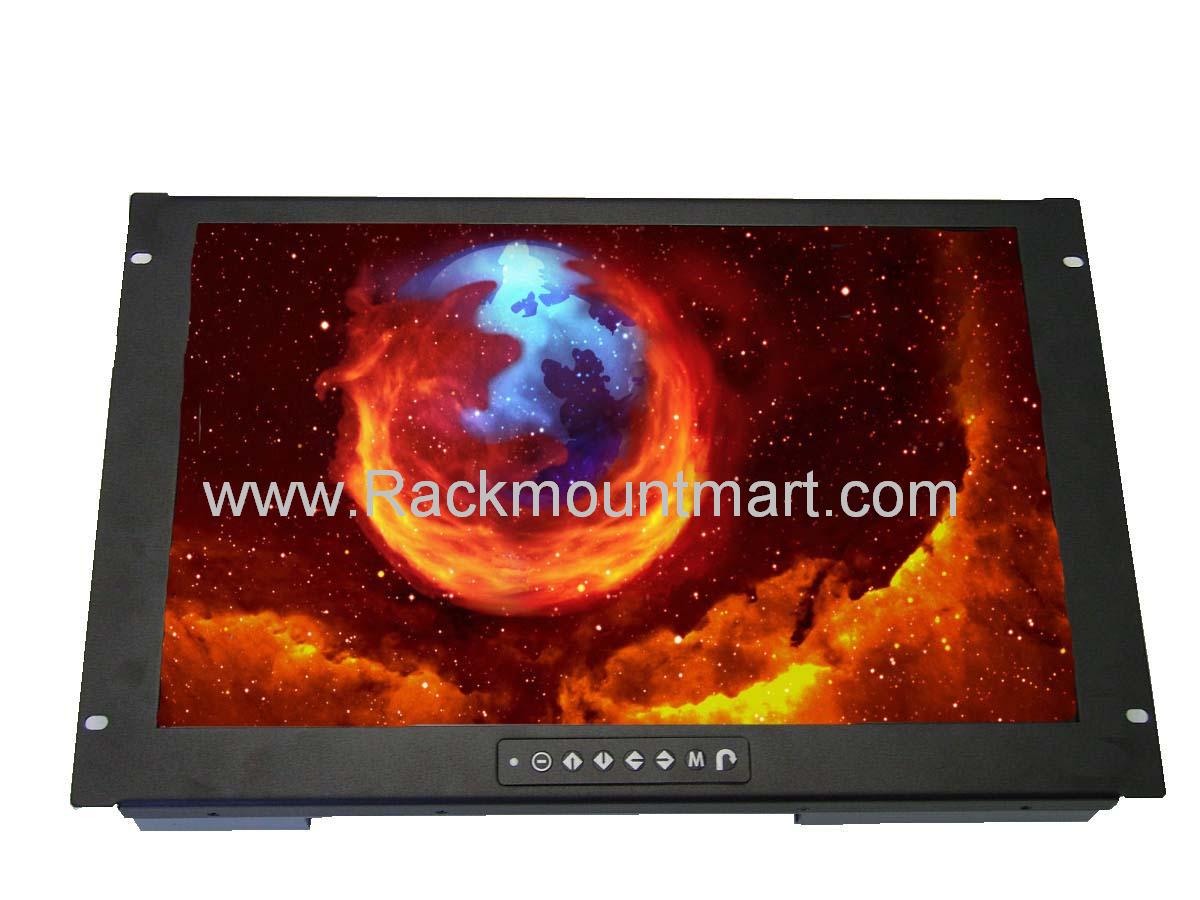

     Front View

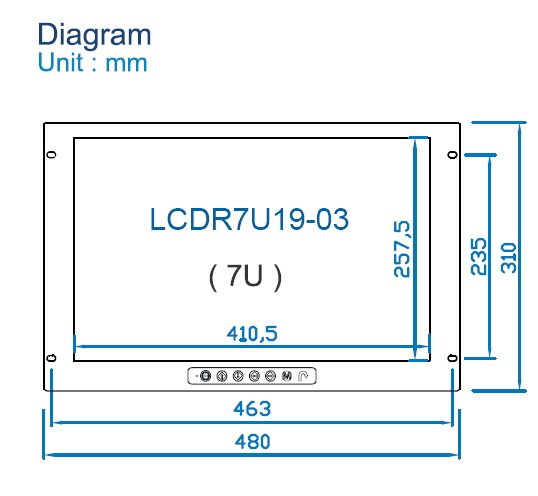

     Diagram


      User Manual


Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

      Free Ground Shipping *Click for details


Customer who ordered this product may also order these :
- Rack Keyboard
- KVM Switch - Rack Shelves
- PDU
 (Power Distribution Unit )		 - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount

  More photos (click to enlarge )

FEATURES :

  LED technology
  Low power consumption
  Long lifetime up to 70,000 hours
  Minimum EMI emissions
  Operation temperature at -20C
  High shock & vibration resistance
  Mercury free
  Slim size

Option :

 BNC+S-Video  DVI-D  DC Power  Audio
 Touch Screen  NEMA 4 / IP65  Quad Display

Optional Accessories


  S-Video and Composite video input
    -Supports Pal & NTSC auto recognition

   Touch Screen

                                                               Details

Optical Bonding Option Anti-reflective Film Option
Yes No Yes No
1mm thick optically clear adhesive for touch screen or 4mm temper glass 0.1mm thick optical interference coating film
Designed to provide visual enhancement
No air gap between the cover glass & LCD panel Cost effective vacuum laminated technology
Greatly reduced specular & diffuse reflection
Increased LCD durability under vibration Increased contrast for improved readability
Eliminate residual and ghost images Easy clean surface

Back to top



Ordering  information
Part Number  Description
LCDR7U19-03
Price : $1621

 Bright Screen : 7U  Rack mount 19" SAMSUNG Industrial Grade A Ultra Bright / Sun Readable TFT LCD Display Panel
LCDR7U19-03-AV
Price : $1742		  Bright Screen : 7U  Rack mount 19" SAMSUNG Industrial Grade A  Ultra  Bright / Sun Readable TFT LCD Display Panel with Composite Video (RCA) & S-Video Input
LCDR7U19-03-BNC
Price : $1742		  Bright Screen : 7U  Rack mount 19" SAMSUNG Industrial Grade A  Ultra  Bright / Sun Readable TFT LCD Display Panel with Composite Video (BNC) & S-Video Input
LCDR7U19-03-DVI
Price : $1689		 Bright Screen : 7U  Rack mount 19" SAMSUNG Industrial Grade A  Ultra  Bright / Sun Readable TFT LCD Display Panel with DVI-D Input
LCDR7U19-03-HDMI
Price : $1742		 Bright Screen : 7U  Rack mount 19" SAMSUNG Industrial Grade A  Ultra  Bright / Sun Readable TFT LCD Display Panel with HDMI Input
Option
-12VDC
Price : $171		 Add 12V DC input power supply
-24VDC
Price : $171		 Add 24V DC  input power supply
-48VDC
Price : $171		 Add 48V DC  input power supply
-NEMA
Price : $129		 Add front IP65 protection for LCD size - widescreen 19"
-TRS
Price : $271		 Add Resistive touch screen + Serial controller
-TRB
Price : $271		 Add Resistive touch screen + USB controller
-TCS
Price : $457		 Add Capacitive touch screen + Serial controller
-TCB
Price : $457		 Add Capacitive touch screen + USB controller
-HDMI
Price : $121		 Add HDMI Input
-SPK
Price : $114		 Add speaker
-QD
Price : $629		 Add Quad Monitor
