8U Bright LCD Rack mountable Industrial Monitor :
Part # LCDR8U19-04

                               Ultra Bright LCD 8U Rackmount 19" Samsung TFT LCD Monitor
             Optional S-Video & Composite Video ( RCA + BNC ) / DVI / Touch Screen / Quad Monitor /
           DC Power Input / NEMA 4 IP65

SUN Readable / Viewable under Ambient Lighting Condition

Panel: SAMSUNG 19" Sunlight LCD LCD panel

Display type

TFT / LCD active matrix color

Resolutions

1280 x 1024 SXGA

Response time

Tr =1.3ms / Tf =3.7ms (Typ.)

Contrast ratio

800 : 1 typical

Brightness

800 cd/ m2 typical

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 º (Horiz.) / 160 º (Vert.)

Back light

4 CCFTs

Video

Horizontal Synchronization :	64 KHz (Max.)
Vertical Synchronization :	60 Hz (Max.)
Input Signal :	Analog RGB 0.7Vp-p

Power Management

VESA DPMS

OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

External Connection

Power Input	12V/5A DC adapter
Video Input	15-pin D-Sub connector

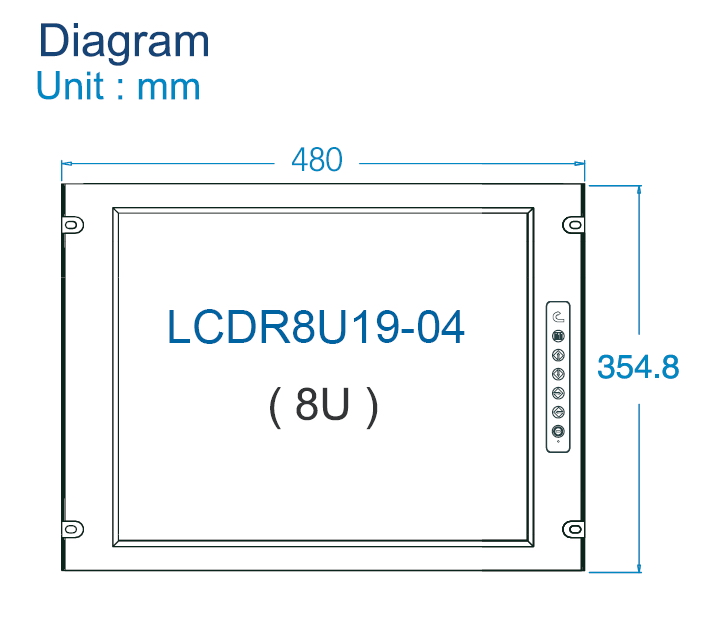

Product Dimension

48(W) x 35.48(H) x 5.7(D)cm /
18.9" x 14" x 2.2"

Temperature

-20 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)

Relative Humidity

5~90%, non condensing

Shock

10G peak acceleration
(11ms duration)

Vibration

5~500Hz, 1G RMS random vibration

Optional Accessories & Peripheral

Details

Package Content

LCD Monitor x 1 , 6-ft VGA cable x 1, AC to DC Power adapter x 1 , User Manual x 1

Front View

Touchscreen Drive Download

Mac Linux Dos

Win 2k-Xp Win 98-Me Win CE

Win 7

Free Ground Shipping *Click for details

More photos (click to enlarge )

Features :

• LED technology
• Low power consumption
• Long lifetime up to 70,000 hours
• Minimum EMI emissions
• Operation temperature at -20ºC
• High shock & vibration resistance
• Mercury free
• Slim size

Option :

• BNC+S-Video • DVI-D • DC Power • Audio
• Touch Scerren • NEMA 4 • Quad Display

Optional Accessories

S-Video and Composite video input
-Supports Pal & NTSC auto recognition

   Touch Screen

                                                             Details


Optical Bonding Option Anti-reflective Film Option

Yes No Yes No

1mm thick optically clear adhesive for touch screen or 4mm temper glass 0.1mm thick optical interference coating film

Designed to provide visual enhancement

No air gap between the cover glass & LCD panel Cost effective vacuum laminated technology

Greatly reduced specular & diffuse reflection

Increased LCD durability under vibration Increased contrast for improved readability

Eliminate residual and ghost images Easy clean surface

Back to top

Ordering information

Part Number Description

LCDR8U19-04
Price : $1697 8U Rackmount 19" Ultra Bright / Sun Readable TFT LCD Monitor Panel

LCDR8U19-04-AV
Price : $1818 8U Rackmount 19" Ultra Bright / Sun Readable TFT LCD Monitor Panel with Composite Video(RCA) & S-Video Input

LCDR8U19-04-BNC
Price : $1818 8U Rackmount 19" Ultra Bright / Sun Readable TFT LCD Monitor Panel with Composite Video(BNC) & S-Video Input

LCDR8U19-04-HDMI
Price : $1818 8U Rackmount 19" Ultra Bright / Sun Readable TFT LCD Monitor Panel with HDMI

LCDR8U19-04-DVI
Price : $1765 8U Rackmount 19" Ultra Bright / Sun Readable TFT LCD Monitor Panel with DVI

Option

-12VDC
Price : $171 Add 12V DC power supply

-24VDC
Price : $171 Add 24V DC power supply

-48VDC
Price : $171 Add 48V DC power supply

-NEMA
Price : $129 Add front IP65 protection for LCD size - 19"

-TRS
Price : $271 Add resistive touchscreen + Serial controller

-TRB
Price : $271 Add resistive touchscreen + USB controller

-TCS
Price : $457 Add capacitive touchscreen + Serial controller

-TCB
Price : $457 Add capacitive touchscreen + USB controller

-SPK
Price : $114 Add speaker

-QD
Price : $629 Add Quad Monitor
