                     4U  / 6U /7U / 8U/ 9U /10U Rack mountable Industrial Monitor :
                                          Part #  LCDR9U20-01

                                      9U Rackmount 20" LG TFT LCD Monitor Panel
          Optional S-Video & RCA / DVI / BNC / Touch Screen / DC Input adapter / NEMA 4 IP65

Panel: LG  20" LCD panel

Display type

TFT / LCD active matrix color

Resolutions

1600 x 1200 UXGA

Display Area

408(H) x 306(V) mm

Response time

Tr =7ms / Tf =9ms (Typ.)

Contrast ratio

800 : 1 typical

Brightness

300 cd/ m2 typical

Pixel pitch

0.255mm (H) x 0.255mm (W)

Panel color

16.7 million display colors

Viewing angle

178 º (Horiz.) / 178 º (Vert.)

Back light

4 CCFTs

Power Management

VESA DPMS

Video:

Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p

OSD Control
Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector

Product Dimension

48(W) x 39.9(H) x 6.35(D)cm /
18.9" x 15.7" x 2.5"
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D
- Touch screen
- DC Power Input ( 12V / 24V / 48V )

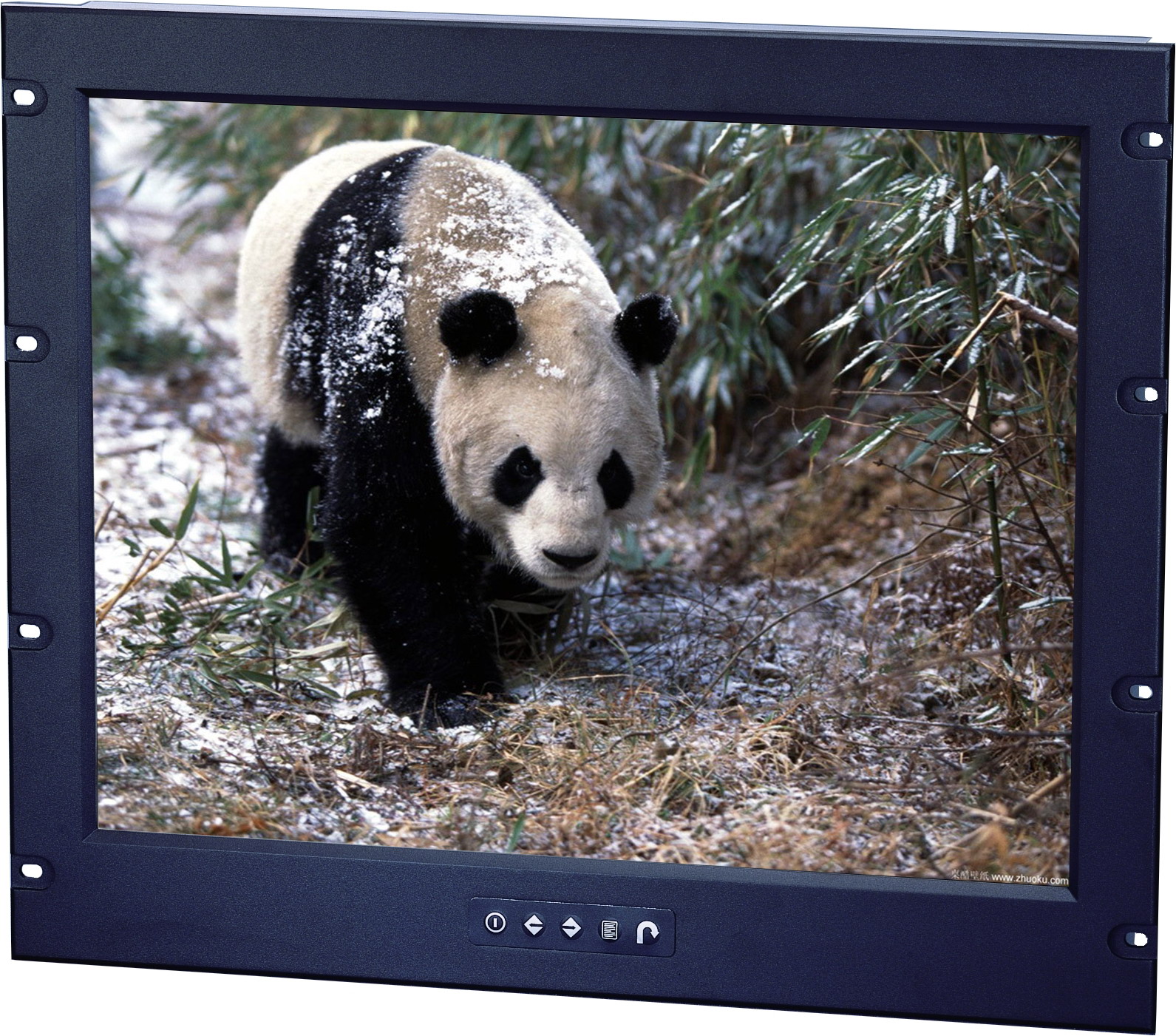

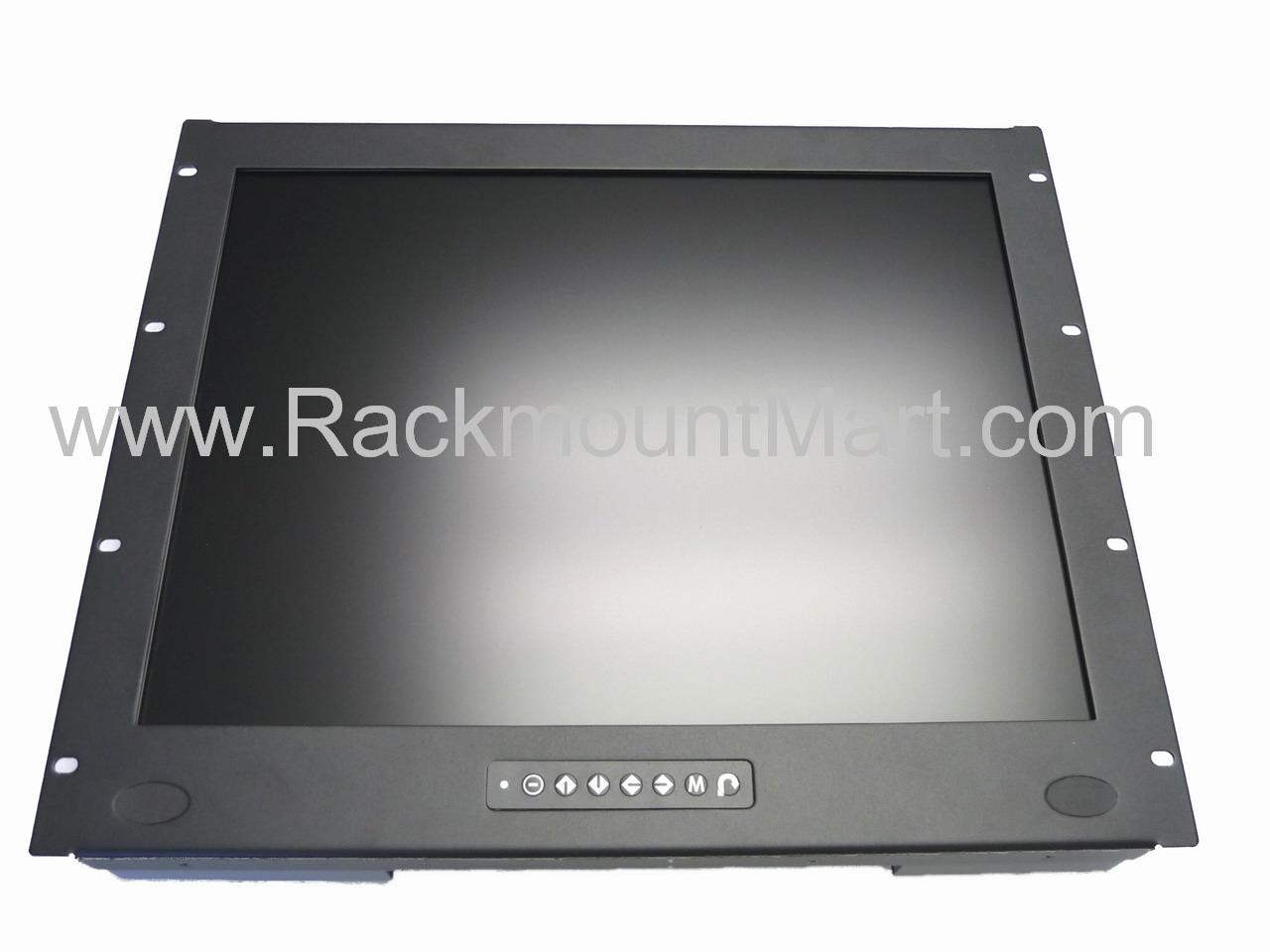

 Front View

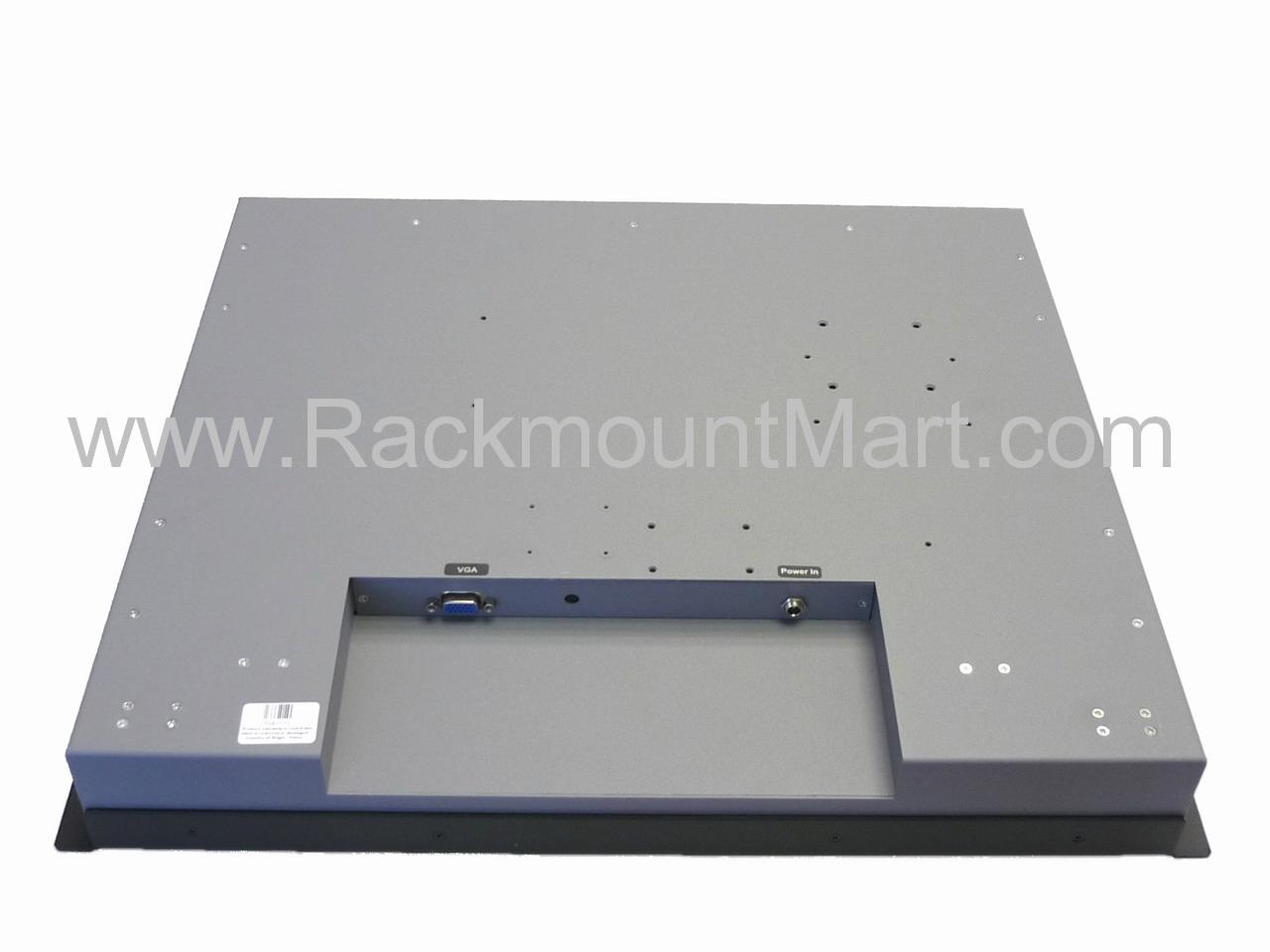

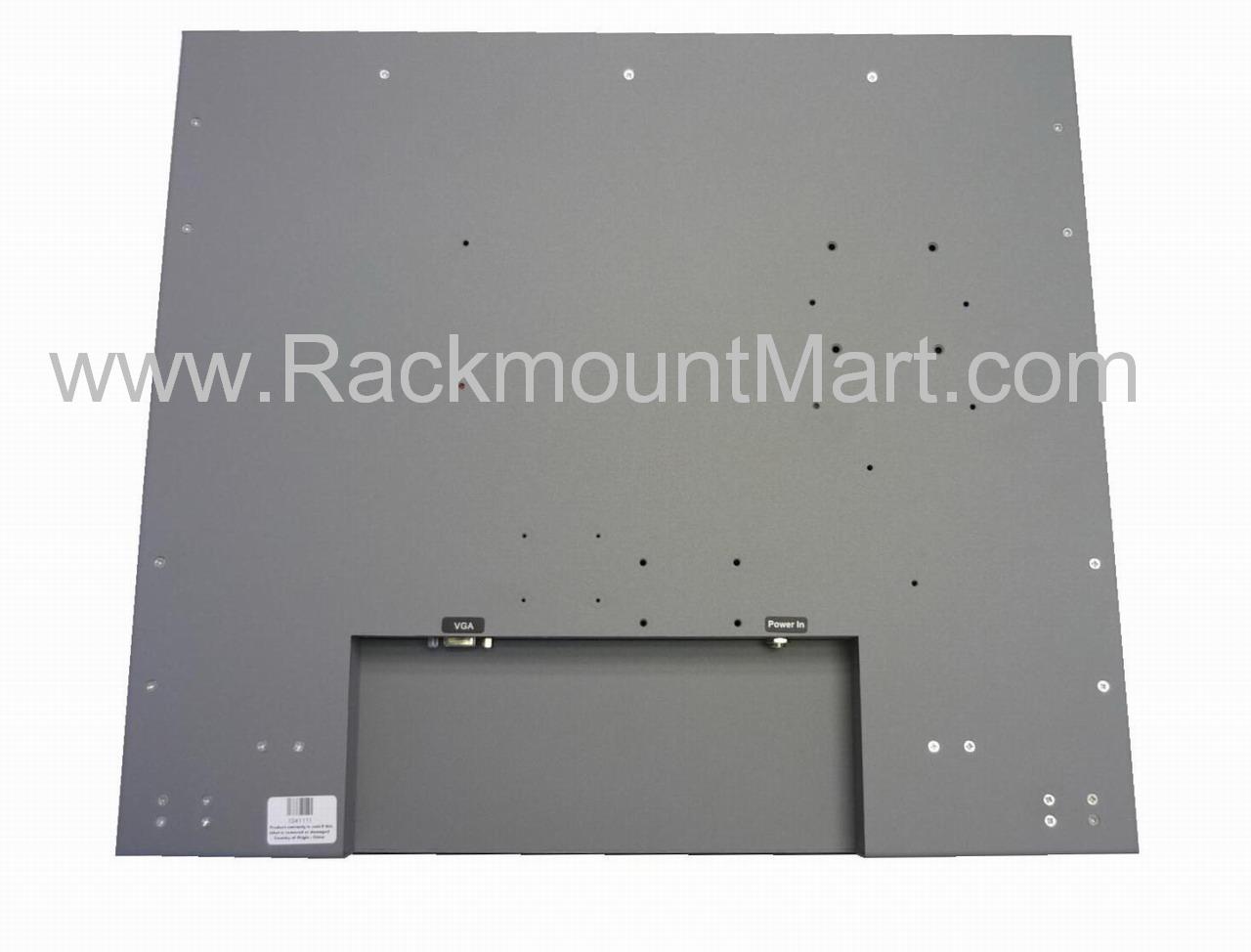

 Rear View








     Product Sheet

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

      Free Ground Shipping *Click for details



Customer who ordered this product may also order these :
- Rack Keyboard
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount

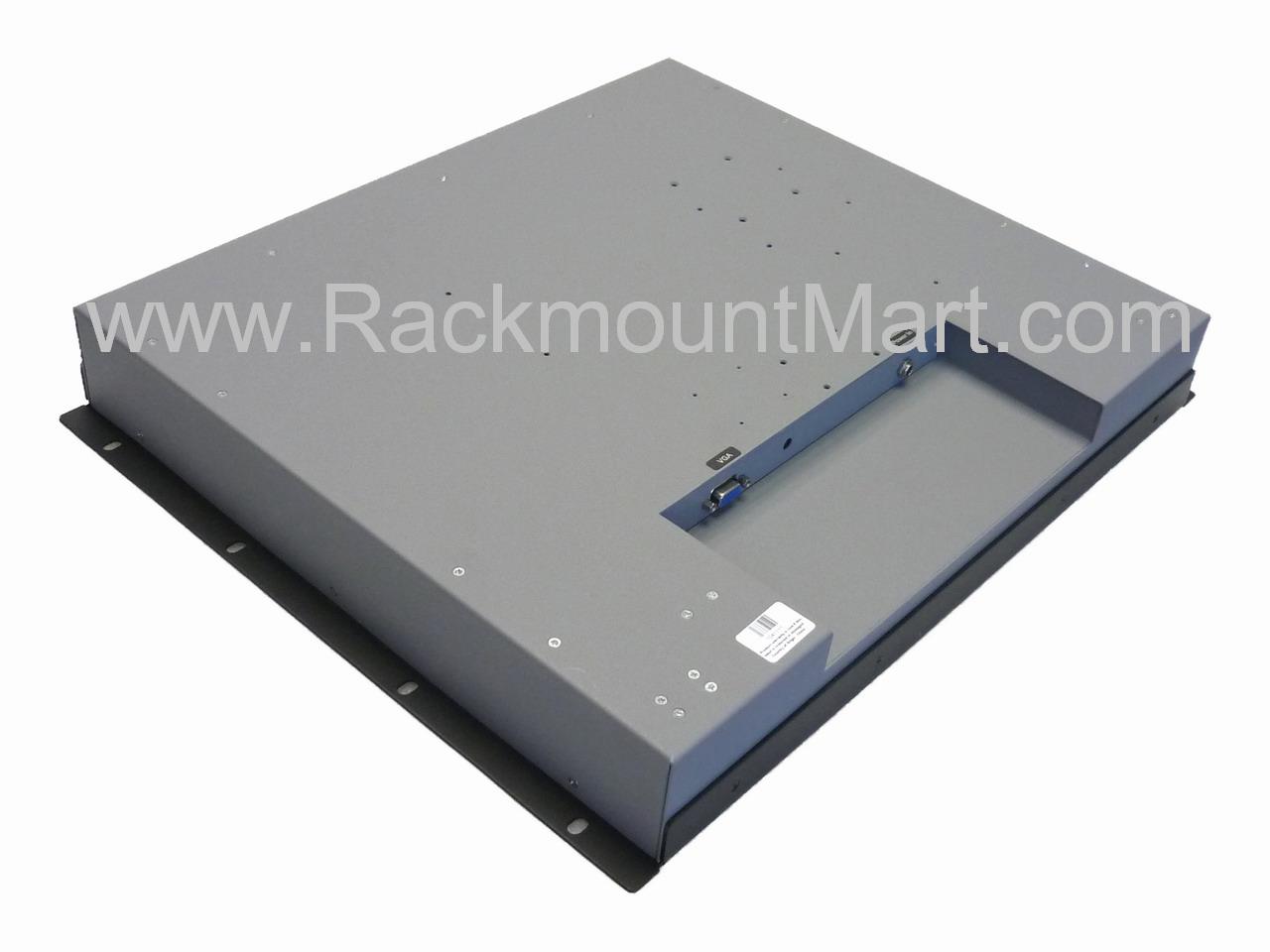

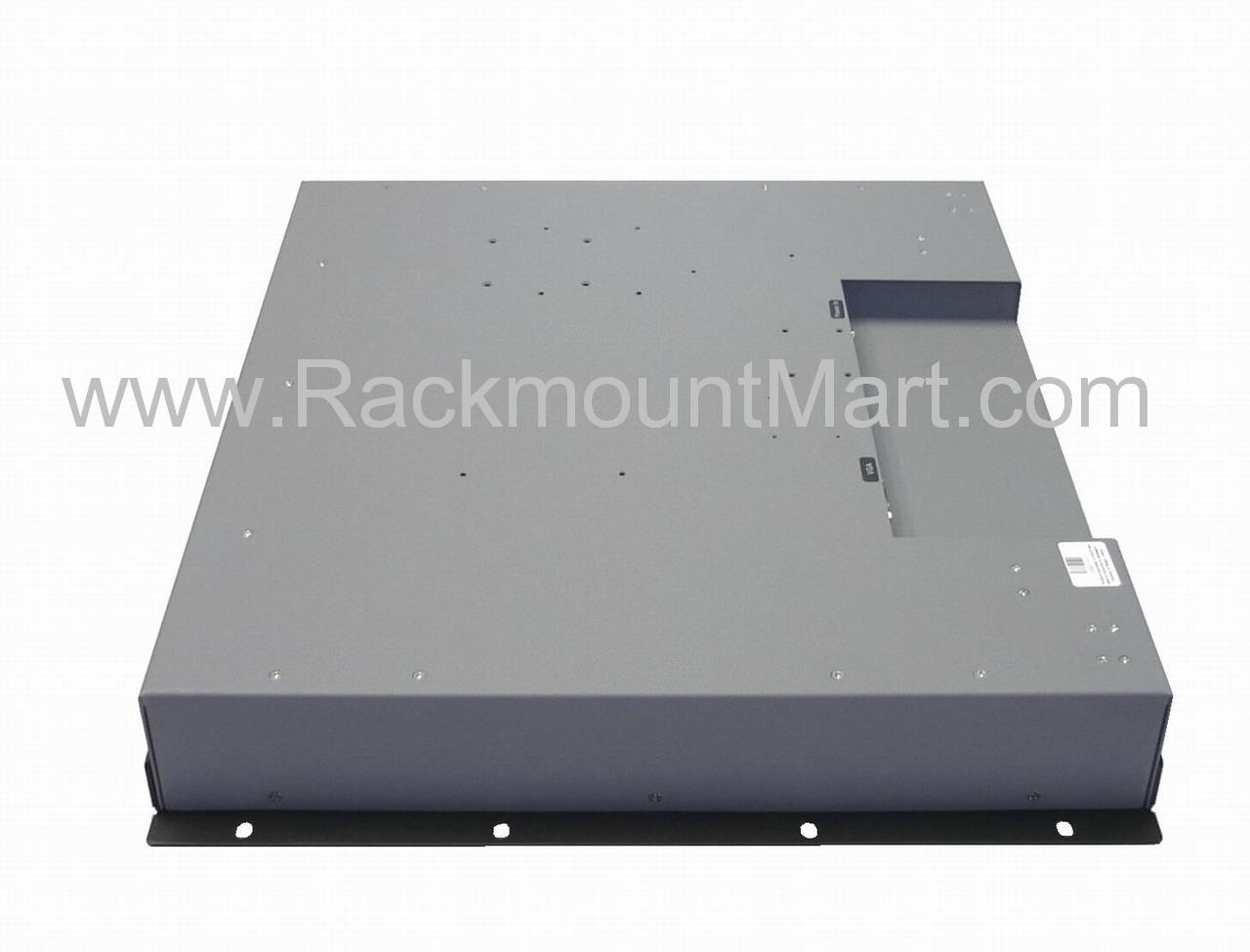

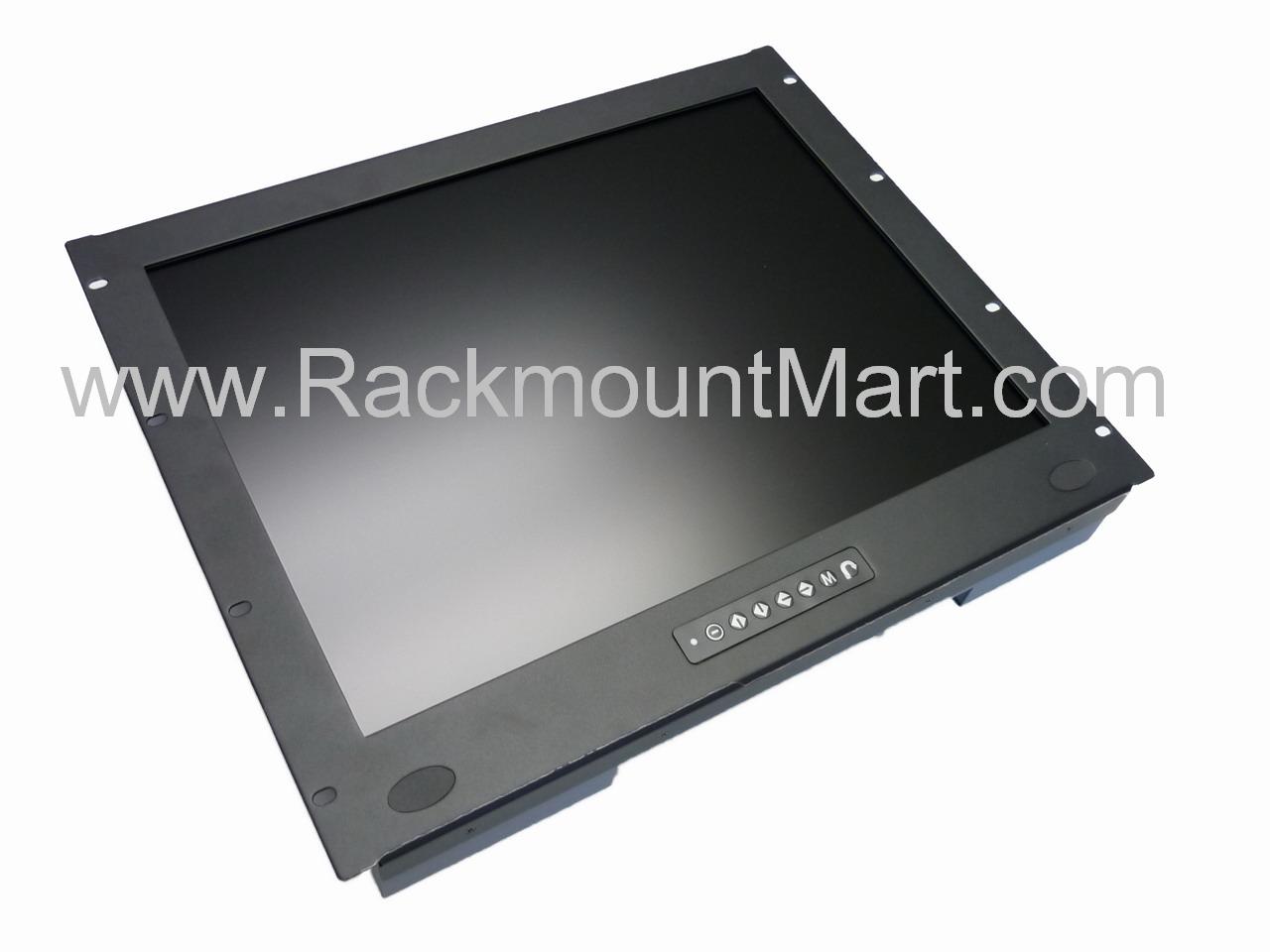

  More photos (click to enlarge )
Features :

•  Lower power consumption.
•  Styled 6mm aluminum front panel.
•  Standard D-sub 15-pin VGA input connector
•  Optional IP65/ NEMA sealed front 2mm protective glass for LCD
•  Optional DVI digital Input / BNC / S-Video & Composite Video
•  Side to side wide-angle viewing as CRT monitor.
•  Supplied with 12V 5A remote power adapter (single power source)
•  Built in On Screen Display controlled by integral membrane switches
•  Space-saving – Extra rack-mounting space from the back of LCD Panel.
•  Rugged metal construction, all black cladding is pre-treated and finished in powder coated paint.


Power supply :

  • Remote adapter : 110V - 220 V AC Input , 12V 5A Output
  • Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
  • Cable length from mains plug to adapter : 6ft / 182cm
  • Cable length from adapter to unit : 6ft / 180cm
  • Safety approval :  FCC, CE
  • Mains plug options available
  • Optional  48V / 24V / 12V DC input power adapter available

Back to top



Ordering  information
Part Number  Description
LCDR9U20-01
 Price : $871		 9U Rackmount 20" LG TFT LCD Monitor
LCDR9U20-01-AV
Price : $992		 9U Rackmount 20" LG TFT LCD Monitor with S-Video & Composite Video  Input
LCDR9U20-01-HDMI
Price : $992		 9U Rackmount 20" LG TFT LCD Monitor with HDMI Input
LCDR9U20-01-DVI
Price : $939		 9U Rackmount 20" LG TFT LCD Monitor with DVI digital Input
LCDR9U20-01-BNC
Price : $992		 9U Rackmount 20" LG TFT LCD Monitor with S-Video & BNC (bayonet Neill- Concelman) connector
LCDR9U20-01-AV-DVI
 Price : $1060		 9U Rackmount 20" LG TFT LCD Monitor with S-Video & Composite Video Input and DVI digital Input
LCDR9U20-01-BNC-DVI
Price : $1060		 9U Rackmount 20" LG TFT LCD Monitor with BNC and DVI digital Input
Option
-12VDC
Price : $171		 Add 12V DC power supply
-24VDC
Price : $171		 Add 24V DC power supply
-48VDC
Price : $171		 Add 48V DC power supply
-NEMA
Price : $164		 Add front IP65 protection for LCD size - 19"
-TRS
Price : $357		 Add resistive touch screen + Serial controller
-TRB
Price : $357		 Add resistive touch screen + USB controller
-SPK
Price : $114		 Add speaker
