CHASSIS ACCESSORIES - Cooler, Blower &Fan

  Part #

CF1U-11		1U  CPU Cooler with Blower for AMD: Socket A/462; INTEL: Socket 370 (AMD K7 1U socket A/462, XP2400+) Blower Fan 50x50x15mm: Rated Voltage: 12 V  DC / Speed: 7800 RPM / Bearing system: Double Ball Bearing / Safety Approvals(standard): CE, UL Skiving Heat Sink Material: Copper C1020 / Dimension: 78x60x14.5 Pitch: 1.3 mm / Thickness of fin: 0.4 mm Number of fins: 46 / Height of fin: 8 mm Height of base: 3 mm / Length of base: 78 mm
CF1U-12	*Click here for view of blower direction (90°)	1U  CPU Cooler with Blower for  INTEL: P4 Socket 478 (Intel P4 478 1U with blower on the top, up to 2.8 Ghz) Blower Fan 50x50x15mm: Rated Voltage: 12 V DC /  Speed: 7800 RPM / Bearing system: Double Ball Bearing / Safety Approvals(standard): CE, UL Skiving Heat Sink Material: Copper C1020 / Dimension: 89x60x12.9 Pitch: 1.3 mm / Thickness of fin: 0.5 mm Number of fins: 46 / Height of fin: 11 mm Height of base: 4.5 mm / Length of base: 60 mm
CF1U-13	*Click here for view of blower direction (180°)	1U  CPU Cooler with Blower  for INTEL P4 Xeon Socket 603/604 up to 2.8GHz (Intel P4 Xeon 603 1U with blower on the top, up to 2.8 Ghz) Blower Fan 50x50x15mm: Rated Voltage: 12 V  DC / Speed: 7800 RPM / Bearing system: Double Ball Bearing / Safety Approvals(standard): CE, UL Skiving Heat Sink Material: Copper C1020 / Dimension: 88.3x59.8x24.1 Pitch: 1.28 mm / Thickness of fin: 0.45 mm Number of fins: 47 / Height of fin: 21.1 mm Height of base: 3 mm / Length of base: 59.8 mm
CF1U-14		1U  CPU Cooler for AMD:K7 (Socket A / 462)up to XP 1900+;INTEL:Socket 370 up to 1.13 GHz  (AMD K7 1U Socket A/462, XP2200+) Fan Dimension :  60x60x10 mm / Speed : 5300 rpm Bearing : 2 x Ball /  Rated Voltage:12 V  /             Air Flow :  24.4 cfm /  Noise Level:  40 dBA           Air Press. : 0.18 inch-H2O  Heat Sink Material: Copper C1020 / Dimension: 60x60x11.9 Pitch: 1.3 mm / Thickness of fin: 0.5 mm Number of fins: 46 / Height of fin: 7.5 mm Height of base: 4 mm / Length of base: 60 mm
CF1U-15		1U  CPU Cooler for Intel Socket 478 (Intel P4 478 1U, up to 2.5 GHz) Fan Dimension :  60x60x10 mm / Speed : 5300 rpm Bearing : 2 x Ball /  Rated Voltage : 12 V  /             Air Flow :  24.4 cfm /  Noise Level:  40 dBA           Air Press. : 0.18 inch-H2O  Heat Sink Material: Copper C1020 / Dimension: 60x60x12.9 Pitch: 1.3 mm / Thickness of fin: 0.5 mm Number of fins: 46 / Height of fin: 11 mm Height of base: 4.5 mm / Length of base: 60 mm
CF1U-16		1U  CPU Cooler for INTEL Xeon Socket 603/604 (Intel P4 Xeon 603 1U, up to 2.5 Ghz) Fan Dimension :  60x60x10 mm / Speed : 5300 rpm Bearing : 2 x Ball /  Rated Voltage : 12 V  /             Air Flow :  24.4 cfm /  Noise Level:  40 dBA           Air Press. : 0.18 inch-H2O   Heat Sink Material: Copper C1020 / Dimension: 60x60x12.9 Pitch: 1.3 mm / Thickness of fin: 0.5 mm Number of fins: 46 / Height of fin: 11 mm Height of base: 4.5 mm / Length of base: 60 mm

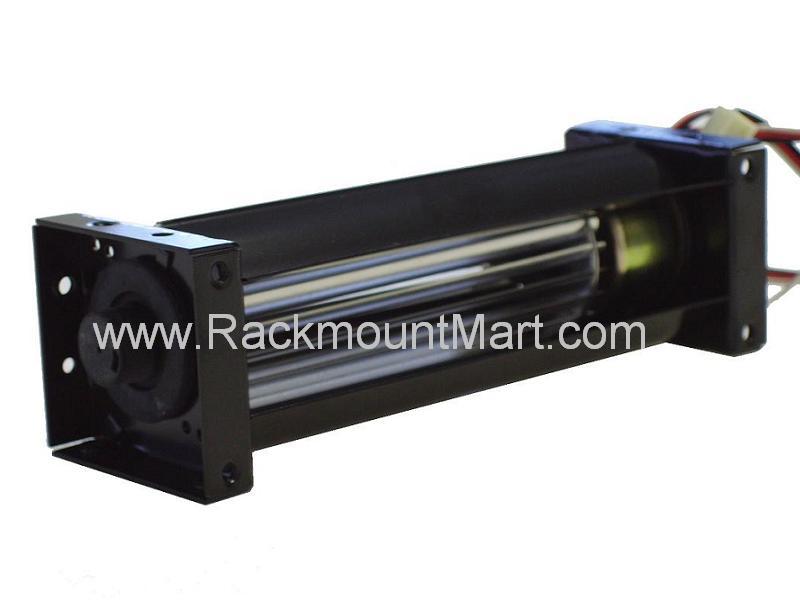

CF1U-17		1U / 2U Server Crossflow Blower Fan Dimension :  135x45x40.6 mm / Speed : 3600 rpm Rated Voltage : 12 V  / Air Flow :  14.12 cfm Noise Level:  33 dBA  /  Air Press. : 0.18 inch-H2O   Heat Sink Aluminum impeller Dynamically balanced to minimize noise and vibration Excellent for 1U/2U Server, PC Board Cooling, Desktop, Electronics, Copiers, Scanners, etc. Use one Crossflow Blower instead of multiple case fans High performance with low noise and low electricity consumption Long, narrow air flow path for very efficient cooling Accessories: Double-sided foam type & screws
CF1U-01		Copper Heat Sink Design for Pentium 4 1U Systems CPU Socket               478, 423, & P4 Xeon 603 Rated Voltage            12 VDC Rated Current            0.22 AMP Power Consumption    2.64 W Bearing Type             Ball Bearing Fan Speed                 4300 RPM Airflow                      27.2 CFM Noise Level                38.0 dBA Outline Dimension      70 X 70 X 10mm Life Time                   50,000 Hrs
CF1U-02		For Intel P III Coppermine (FC-PGA) 1G or above low profile 1U Chassis   Bearing Type             Ball Bearing Fan Speed                 4100 RPM Airflow                      20.6 CFM Noise Level                37.0 dBA Outline Dimension      60 X 62 X 21.5mm
CF1U-03		For Intel P III  FC-PGA/FC-PGA 2 up to 1.4G, Celeron (PPGA) ,AMD Athlon XP up to 2000    Bearing Type            Double Ball Bearing Fan Speed                 4800 RPM Airflow                      21.19 CFM Noise Level                36.5 dBA Outline Dimension      60 X 61.6 X 22.5mm
CF03		All Intel P II/P III (SECC2) CPU   Bearing Type              Ball Bearing Outline Dimension       137 X 59 X 44.5mm
CF04		All  Intel P II/ P III (SECC2) and AMD Athlon CPU   Bearing Type              Ball Bearing Outline Dimension       137 X 59 X 44.5mm
CF10		Slot Fan   Type:                      Axial fan MTBF:                     20000 hours Ai flow:                   32 CFM Speed:                    2800RPM Voltage:                  12V DC + 0.5V Power:                    1.8W Current:                  150mA (max) Dimensions:            210x154x28 mm
CF05		HDD Cooler  for 5.25" Bay   Fan Speed:                3800 RPM x 2 Airflow:                     28 CFM Bearing Type:            Ball Bearing Outline Dimension:     146 X 140 X 30mm Body Type:                5.25"
CF06		HDD Cooler  for 5.25" and  3.25" Bay   Fan Speed:               3800 RPM x 2 Airflow:                     28 CFM Bearing Type:            Ball Bearing Outline Dimension:     146 X 102 X 16.5mm Body Type:                3.5"
CF07		HDD Cooler    Fan Speed:                5000 RPM  Airflow:                     24 CFM Bearing Type:            Sleeve Bearing Outline Dimension:     110 X 101.8 X 12.2mm Body Type:                3.5"
CF08		All-in-one VGA  & Chipset Cooling Kit -Push Pin for Quick & Easy Installation. -Copper Heat Sink Design for Faster Heat    Dissipation (CCB-A1C) Bearing Type            Ball Bearing Fan Speed                5000 RPM Airflow                     3.5 CFM Outline Dimension     51 X 59 X 14mm Chipset Heatsink       27x27x6mm 37x37x6mm (1pc @) Cable Adapter          3-4pin power adapter Thermal Tape           25x25mm(1 pc) 30x30mm(2 pc) Thermal Grease        1.5gm (1pc)
CF09		DDR Memory Heatspreader -Dissipates RAM heat improving its performance -Avoids system crash caused by RAM overheat -Patented user-friendly design installs in just seconds -Compatible with all standard SDR/DDR SDRAM -Efficient size fits on all motherboards
