Industrial Monitor
Model  ID-H19Aw-LED

Panel Mount 19 Inch Widescreen Sunlight Readable High Brightness Monitor
TAA Compliant
LCD Specification
LCD Type

Widescreen TFT LCD Panel

Backlight

LED

Display Size

19 inch diagonal

Resolutions

1440 x 900

Display Color

16.7 M color

Brightness

1000 cd/m2

Contrast ratio

1000 : 1 (Typical)

Active area (mm)

408 x 255
Viewing angle 160° x 160°

LCD MTBF

50,000 hrs

Signal Input

 DVI-D, VGA

Power Supply

 Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 84 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional DC Power

48V / 24V DC Power         Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
 DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details
- HDMI, DVI-D, S-Video + BNC & Audio
- 3G / HD / SD-SDI Broadcast-grade input
- MIL-type or lockable connector
- Auto / switch dimming
- TV - PAL or NTSC

Mechanical
Dimension  20 x 2.6 x 13.3 inch /
 508.5 x 65.6 x 338.1 mm ( WxDxH )
Product Weight  5 kgs ( 11 lbs )
Casing Color  Black front panel, Dark grey rear case
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant , REACH , Assembled in USA , TAA Compliant
Package Content

Package Content

 19" High Brightness LCD display x 1, 6ft VGA Cable x 1, Power adapter x1, Power cord x 1, Mounting hardware x 1 pack


  Dimension


                    Data Sheet
                    User Manual
                    Mounting Guide
                        (VESA Mount / Wall Mount)


   DISPLAY BENEFITS :
  • 19" widescreen LCD with high brightness 1000 cd/mē
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • 6mm aluminum front bezel with protective glass
   0PTIONS :
  • HDMI, DVI-D, S-Video + BNC & Audio
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • HW19" Touchscreen : Capacitive, Resistive, Multi-touch
  • 48V or 24VDC Power
  • MIL-type or lockable connector
  • Auto / switch dimming
  • TV - PAL or NTSC


Ordering Information
Part Number Description
ID-H19Aw-LED
 19" Wide Screen Panel Mount High Brightness LED Display Panel, VGA + DVI-D
Optional NEMA4 / IP65
-N
 Front NEMA4 / IP65 Protection

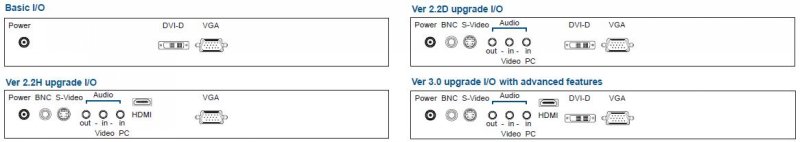

Optional Video/Audio Inputs
-HDMI
 VGA + DVI-D + HDMI + Audio + Remote Control
-DP
 VGA + HDMI + DisplayPort + Audio + Remote Control ( * No DVI-D )
-SDI
 VGA + DVI-D + HDMI + SDI + Speakers for HDMI & SDI
-MC
 Multi-Screen Control
Optional Touch Screen
-TRS
Resistive 1-Point Touch Screen with Serial Controller
-TRB
Resistive 1-Point Touch Screen with USB Controller
Optional Dimming
-DA
 Auto Dimming
-DS
 Dimming switch
** casing dimension will be changed if -DS is applied
Optional DC power
-DC12 Change to 12V DC power supply
-DC24   Change to 24V DC power supply
-DC48   Change to 48V DC power supply
-DC110
   Change to 110V DC power supply
-DC125
   Change to 125V DC power supply
-DC250
   Change to 250V DC power supply
Optional Lockable Jack
-MD MIL-type Lockable DC Power jack, Male
-MA MIL-type Lockable VGA jack, Male
-LD Lockable DC Power jack, Male
-LS Lockable USB jack for touch screen
