4U / 6U / 7U / 8U/ 9U Rack Display
Model LCD8U19-01

*** Model discontinued. Learn more about the Replacement LCDR8U19-12 ***

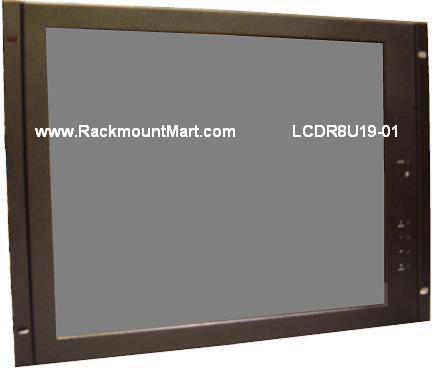

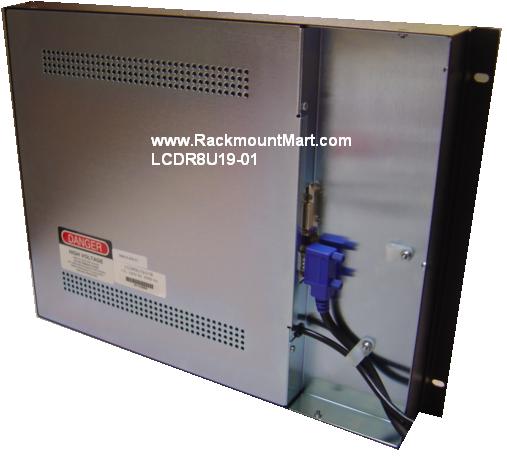

8U Panel Mount 19" TFT LCD Monitor with Lexan

Made in U.S.A.

A 19" TFT LCD display featuring high contrast and wide viewing angles
while occupying only 2.5" of rack depth

Dimensions	19.0" (W) x 14.0" (H) x 2.5" (D)
Display Type	19" viewable, TFT active matrix LCD.
Resolution	1280 x 1024 maximun, 16M colors.
Frequency	Horizontal: 24-93 KHz (Analog), 24-83 KHz (Digital). Vertical: 55-85 Hz.
Response Time	25 ms (typ).
Brightness	250 nits typical
Contrast Ratio	600:1 typical
Viewing Angle	Horizontal: +85 / -85 degrees Vertical: +85 / -85 degrees
Input Signal	(VGA) Analog RGB, TTL H & V Sync. (Digital) DVI-D (TMDS).
Video Connector	Analog: 15 pin mini HD D-sub. Digital: 24 pin DVI-D.
On-Screen Controls	Brightness, Contrast, Position (Vert. & Horiz.), Auto Adjust, Input Select, Scaling, Color Temp., Reset.
Plug & Play	DDC1 and DDC2B
Power	AC Input	100-240VAC
	Frequency	50/60 Hz
	Power Consumption	60 Watts Maximum
Environment	Temperature	Operating:0 to 50 degrees C
	Humidity	Operating: 10% to 85% non-condensing

Features :

- 19" Active Matrix TFT LCD display.
- High contrast and wide viewing angle.
- Display surface protected by a LEXAN shield.
- Only 2.5" deep allows mounting in confined spaces.
- DVI-D digital input in addition to standard VGA input.
- Plugs directly into a standard VGA card.
- Video and power cables provided

Ordering information

Part Number Description

LCDR8U19-01-bk 8U Rackmount 19" TFT LCD Monitor , black

LCDR8U19-01-lg 8U Rackmount 19" TFT LCD Monitor , light gray
