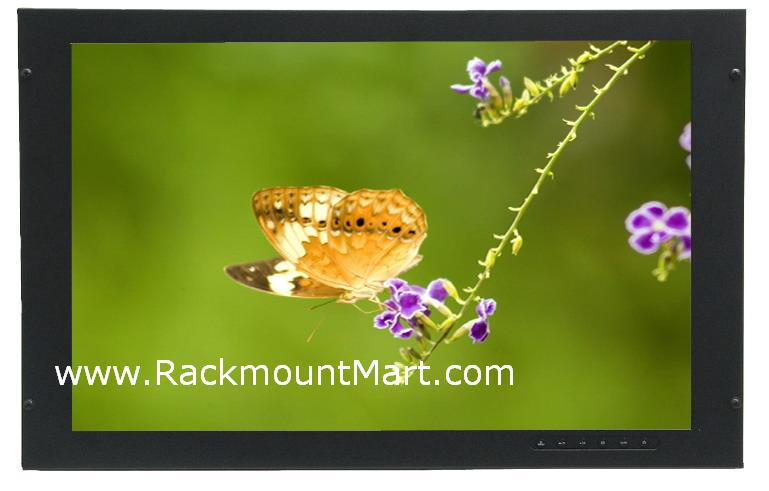

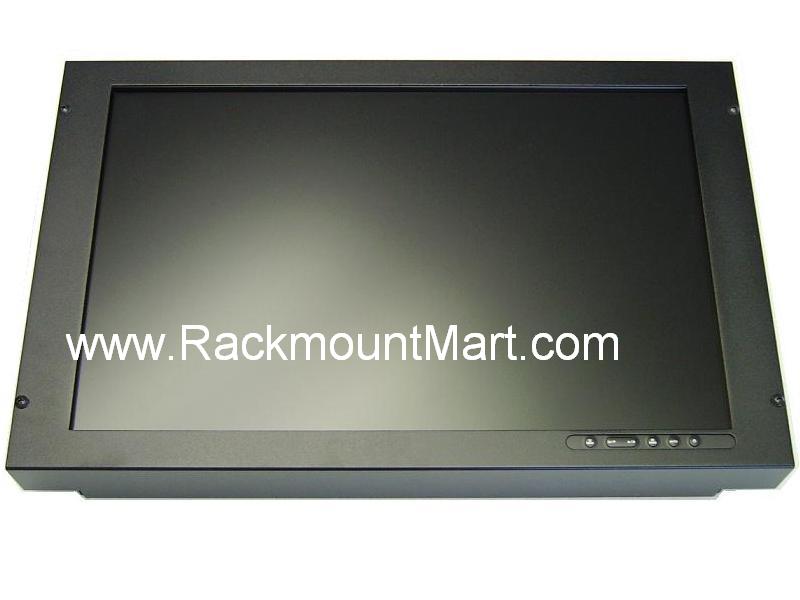

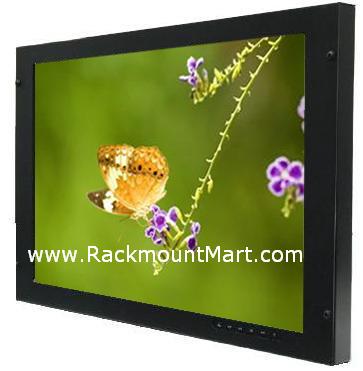

22 Inch Rack Mounting LCD Flat Panel
 Model  LCDR8U22-01

8U Rack Mounted  22" Widescreen LCD Flat Panel Optional Lexan Shield
   ( Made in U.S.A. )
*** Model discontinued. Click Here for replacement LCDR8U20-09 ***


   Features :
- 22" Samsung Wide Format TFT LCD display with
  1680 x 1050 resolution.
- Fast Video response time provides sharp text and crisp motion.
- 16:10 aspect ratio features a widescreen viewing area
- High contrast and wide viewing angle.
- Optional Lexan Shield protection for the display surface.
- Only 2.8" deep allows mounting in confined spaces.
- DVI-D digital input in addition to standard VGA input.
- Plugs directly into a standard VGA card.
- Video and power cables provided.
- Color : Black








The LCDR8U22-01 rack mountable 22"  Samsung Wide Format TFT monitor provides a high contrast, wide viewing angle
display in a minimal rack depth. This TFT display connects directly to a standard video output via a
15-pin VGA connector and does not require any additional drivers or proprietary interface adapters. Also
featured is a connection to DVI-D digital video devices. Offered in black with optional display surface Lexan Shield protection.

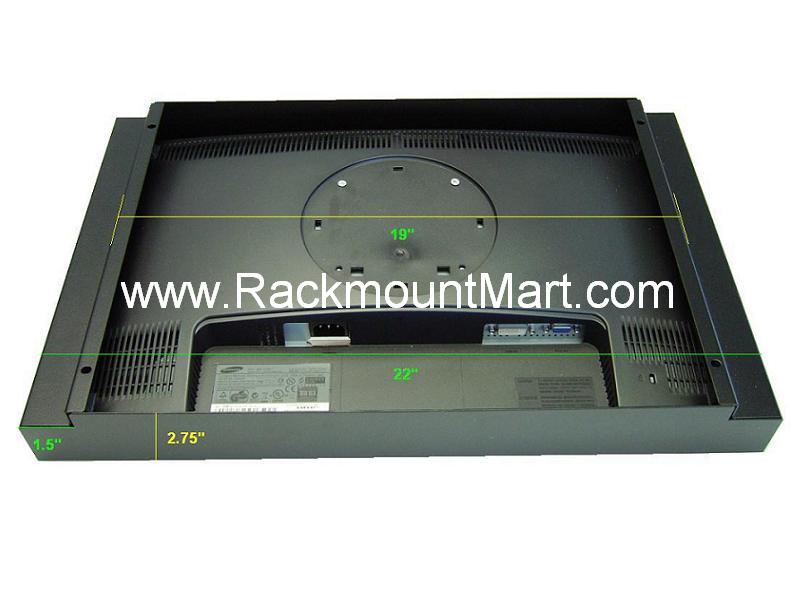

Dimensions 22.0" (W) x 14.0" (H) x 2.8" (D)
Display Type 22" Samsung viewable, a-si TFT/TN LCD
Resolution 1680 x 1050 maximum, 16.7M colors.
Pixel Pitch .282 mm
Response Time 5 ms (G to G ).
Brightness  280  nits typical
Contrast Ratio  700:1 typical
Viewing Angle Horizontal: 160 degrees
Vertical: 160 degrees
Input Signal (VGA) Analog RGB ,
(Digital) DVI-D (TMDS)
Syn Type  Separate H/V , Composite H /V , SOG
Video Connector Analog: 15 pin mini HD D-sub.
Digital: 24 pin DVI-D.
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), OSD H & V position, Input Select, Color Temp., Reset. Auto Adjust
Plug & Play  DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 55 Watts Max
Environment
Temperature Operating: 10 to 40 degree Celsius
Storage   : -20  to 45 degree Celsius
Humidity Operating: 10% to 80% RH (max)

Ordering  Information
Part Number  Description
LCDR8U22-01-b

  8U Rackmount 22" Samsung Widescreen LCD Monitor , black
LCDR8U22-01-b-lex

  8U Rackmount 22" Samsung Widescreen LCD Monitor , with Lexan Shield protection at display, black
