RM4001-F

RM4001

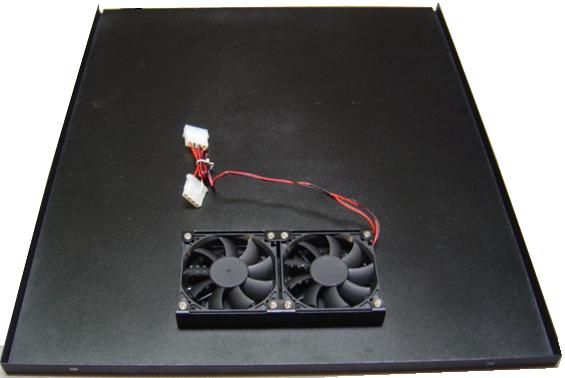

Click on photo for enlarged view

Click on above drawing for enlarged view |
|
Construction |
Heavy duty
steel ,Meets FCC/CE Class |
|
Disk Drive
Bays |
Supports seven 3.5"
drives and three 5.25"drives |
|
Cooling
System |
2 x 120mm
front fans |
|
Options |
4U chassis support for
max motherboard size 12" x 13" |
|
Expansion
Slots |
7 |
|
Power Supply
Options |
AT/ ATX / Single Power supply |
|
Color Option |
Black /
Beige |
|
Dimensions (
W x H xD) |
19" x 7" x 21.5" (482mm
x 545mm x 177mm) |
|
Operating
Temperature Range |
0-55 degree
Celsius (0-70 degree Celsius non-operating)
|
|
Relative
Humidity |
5% to
95%,non-condensing |
|
Vibration (
operating ) |
5 to 15Hz ,
0.1"double-amplit. Displacement, 15 to 150 Hz,1.5G
acceleration peak to peak |
|
Shock (
operating ) |
10G acceleration peak
(11ms duration) |
|
Additional
Features |
2 x USB
connector at front panel, replaceable AT/ ATX back
window |

|
