        Home >>  Industrial Display >>  Industrial Touch Screen LCD >>    Panel Mount Style >>

      Industrial Touch Screen LCD in Panel Mount Style :   Part #   ID-15A-
            6mm Aluminum Front Bezel 15" Samsung  Panel Mount Industrial  Monitor  with Touch Screen
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

15 inch diagonal (304.13H x 228.1V)

Resolutions

1024 x 768

Display Color

16.2M color

Brightness

Min. 250 cd/m2

Contrast ratio

700 : 1 (Typical)

Response Time

Tr=2 / Tf=6ms

Pixel pitch

0.297 x 0.297 mm

Panel color

16.2 million display colors

Viewing angle

75 / 75 / 70 / 65 (L / R / U / D)  or
150 / 135

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Touch Screen

                 Details

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Power Supply
External type, 110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input
  • Video Input   :    DVI and S-Video and Composite
  • Input Connectors : RCA, S-video, DVI

Optional DC Power

 48V / 24V / 12V DC Power     Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
 DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety  : Continuous short circuit protection
                                  Mechanical

Material

 6mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating
Color  Front Panel : Black
 Back          : Dark Grey (RAL7037)
Dimension  390 x 55 x 300 mm (WxDxH)
Product Weight  3.5 kg
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -10 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   5~500Hz 1G RMS random vibration
Safety Approval   CE, FCC
                             Package Content

Package Content

 LCD Monitor x 1 , VGA Cable (Male to Male) x 1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc, User Manual x 1

  Front View of  ID-15A
  * without Touch screen

  Construction   * without Touch screen

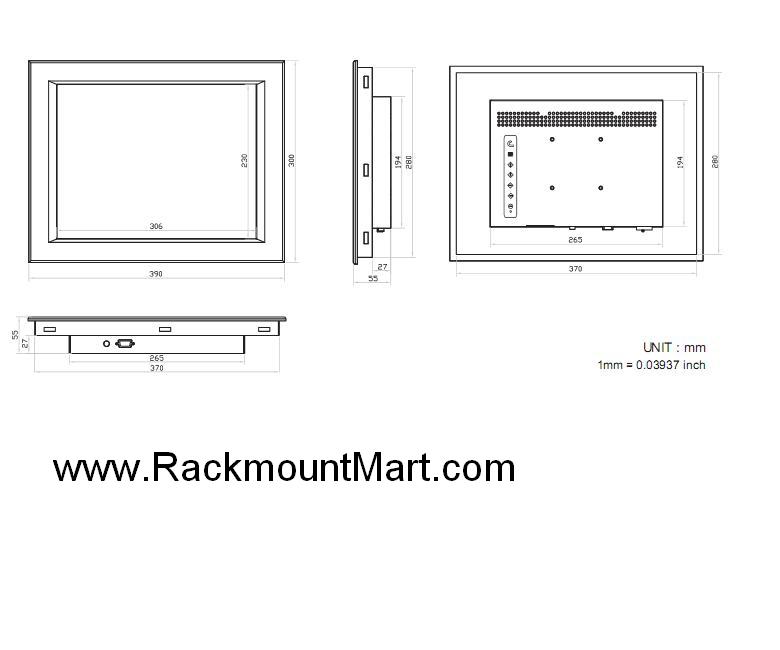

   Front / Rear / Top / Side Views & Dimensions
   * without Touch screen



      *click on above picture for enlarged view







                     ( VESA Mount /  Wall Mount )

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7









More Photos, click on the following for enlarged view:


FEATURES :
  • 15" industrial TFT LCD panel support 1024 x 768 pixels
  • 6mm Aluminum front bezel with 45 degree chamfer
  • Rugged construction and modularized design
  • 250 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Optional DC power input (12 / 24 / 48 VDC)
  • Optional video input (DVI & S-Video & RCA input)
  • Optional touch screen, NEMA 4 / IP 65 front protection
  • Wide-ranges Mounting kits
    (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

     Diagram for  I/O Outlet



Ordering information :
Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-15ATRS
Price : $665		 Version w/option  - 6mm Aluminum Front Bezel 15" Samsung Industrial display +
                           resistive Touch screen & serial controller
ID-15ATRB
Price : $665		 Version w/option  - 6mm Aluminum Front Bezel 15" Samsung Industrial display +
                           resistive Touch screen & USB controller
ID-15ATCS
Price : $800		 Version w/option  - 6mm Aluminum Front Bezel 15" Samsung Industrial display +
                          capacitive Touch screen & serial controller
ID-15ATCB
Price : $800		 Version w/option  - 6mm Aluminum Front Bezel 15" Samsung Industrial display +
                           capacitive Touch screen & USB controller
-DVI
Price : $108		 Add DVI
-AV
Price : $81		 Add Composite video(RCA) + S-video
-BNC
Price : $81		 Add Composite video(BNC) + S-video
-TV
Price : $101		 Add TV tuner with remote controller
-12VDC
Price : $162		 Add 12V DC Power
-24VDC
Price : $162		 Add 24V DC Power
-48VDC
Price : $162		 Add 48V DC Power
-SPK
Price : $81		 Add Audio input
-RM
Price : $54		 Add Remote controller
                                                  WITH NEMA 4 / IP65
ID-15ATRSN
Price : $710		 Version w/option  - 6mm Aluminum Front Bezel 15" Samsung Industrial display +
                           resistive Touch screen & serial controller + NEMA 4 / IP65
ID-15ATRBN
Price : $710		 Version w/option  - 6mm Aluminum Front Bezel 15" Samsung Industrial display +
                           resistive Touch screen & USB controller + NEMA 4 / IP65
ID-15ATCSN
Price : $845		 Version w/option  - 6mm Aluminum Front Bezel 15" Samsung Industrial display +
                           capacitive Touch screen & serial controller + NEMA 4 / IP65
ID-15ATCBN
Price : $845		 Version w/option  - 6mm Aluminum Front Bezel 15" Samsung Industrial display +
                           capacitive Touch screen & USB controller + NEMA 4 / IP65
-DVI
Price : $108		 Add DVI
-AV
Price : $81		 Add Composite video(RCA) + S-video
-BNC
Price : $81		 Add Composite video(BNC) + S-video
-TV
Price : $101		 Add TV tuner with remote controller
-12VDC
Price : $162		 Add 12V DC Power
-24VDC
Price : $162		 Add 24V DC Power
-48VDC
Price : $162		 Add 48V DC Power
-SPK
Price : $81		 Add Audio input
-RM
Price : $54		 Add Remote controller
