27U Server Cabinet : No Doors/No Side Panels - 27" Overall Depth
Model  CR1212-A

TAA Compliant


                                                                                     MADE IN THE USA

This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 24” depth, this Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options.
  • No doors or side panels
  • 24” inside depth (Also available with a 36” depth)
  • Other sizes available: 22U, 37U, 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)

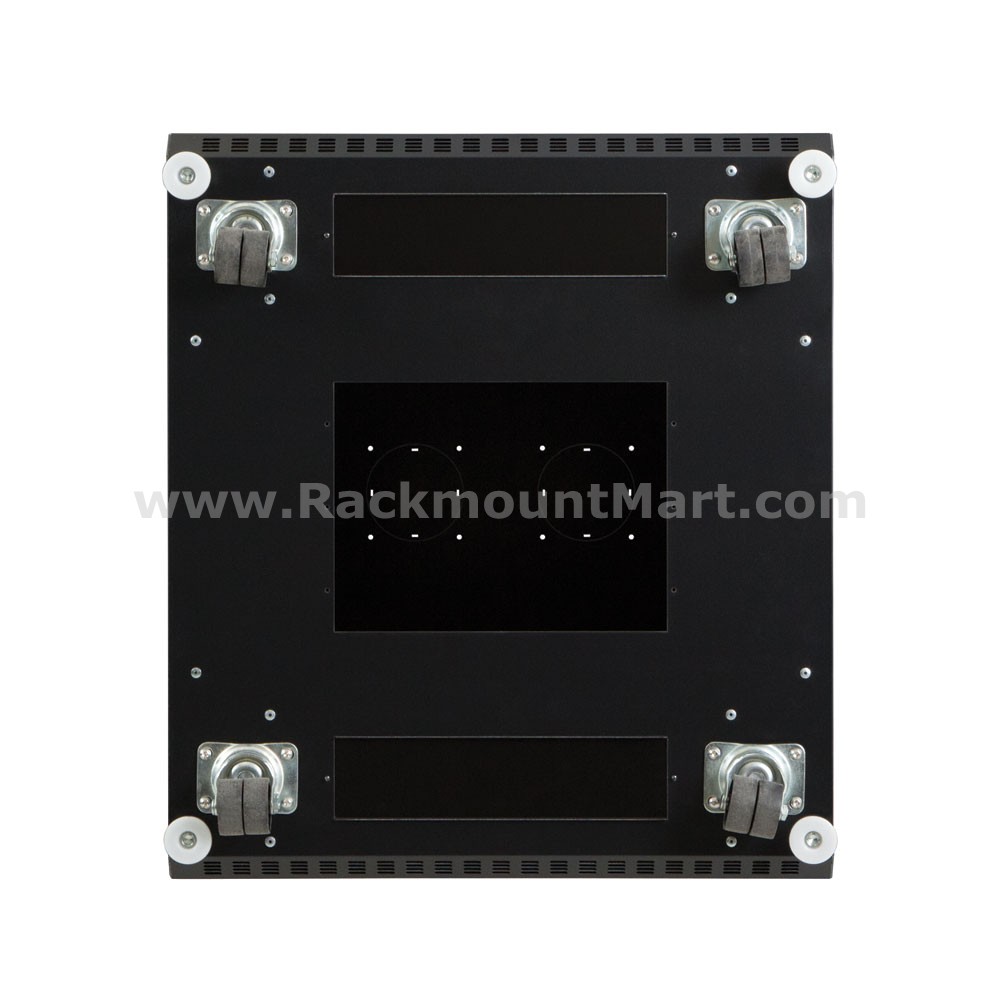

  • Includes preinstalled casters and levelers
  • Includes two sets of adjustable cage nut style mounting rails

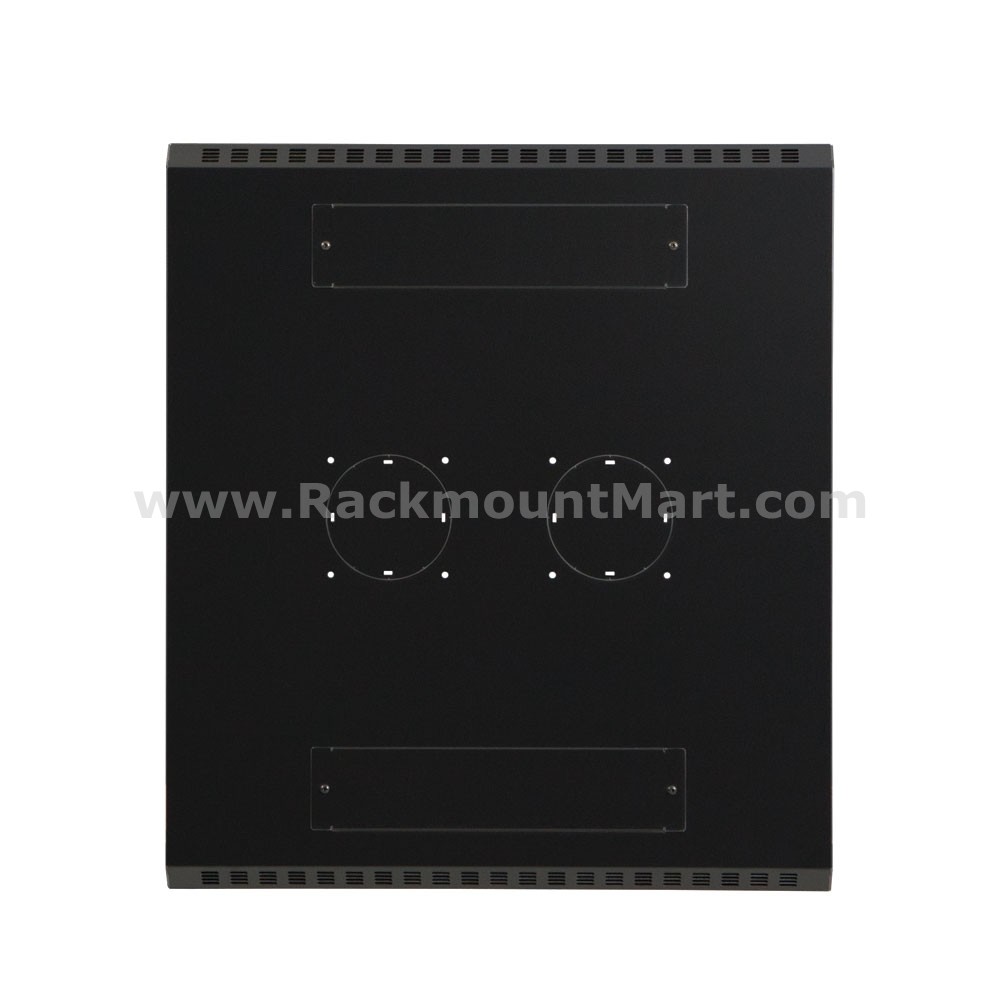

  • Top includes removable laser knockouts
  • 19” EIA 310-D compliant
  • Made in the USA




Features

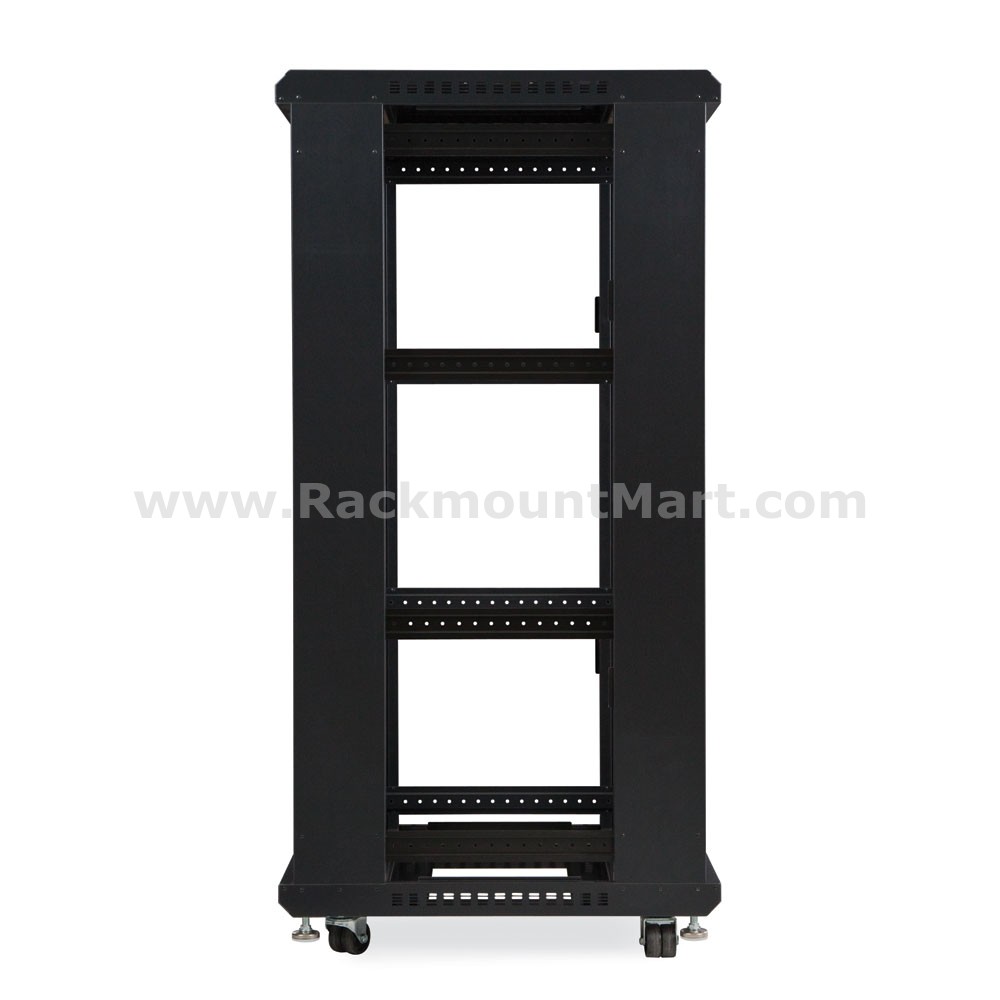

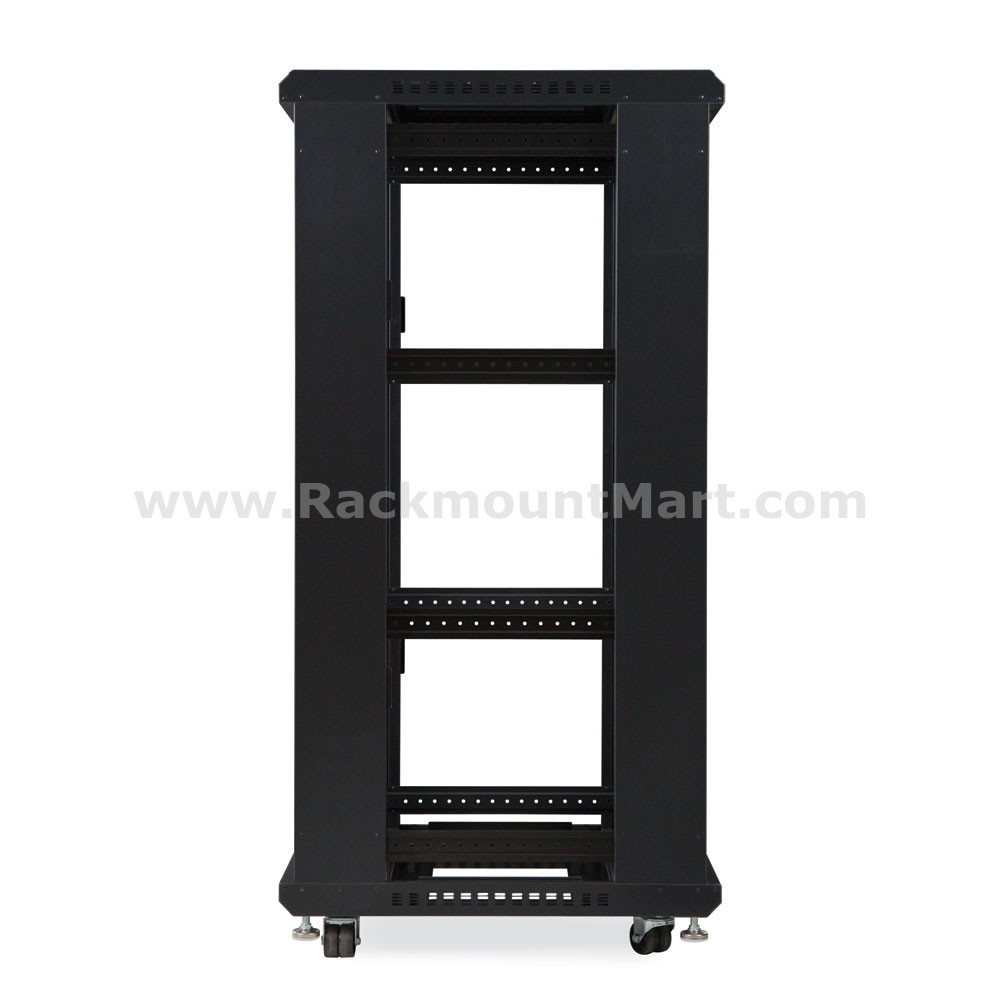

Open Frame Design   The open frame design allows for maximum air flow for your network equipment.
Easy Installation   Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Adjustable Rails   Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24” for versatile mounting options.
Specifications
  • Width : 24"(Overall)  19"(Inside)
  • Depth : 27"(Overall)  24"(Inside)
  • Height : 54.20"(Overall)
  • Color : Black
  • Weight : 94.00 lbs.

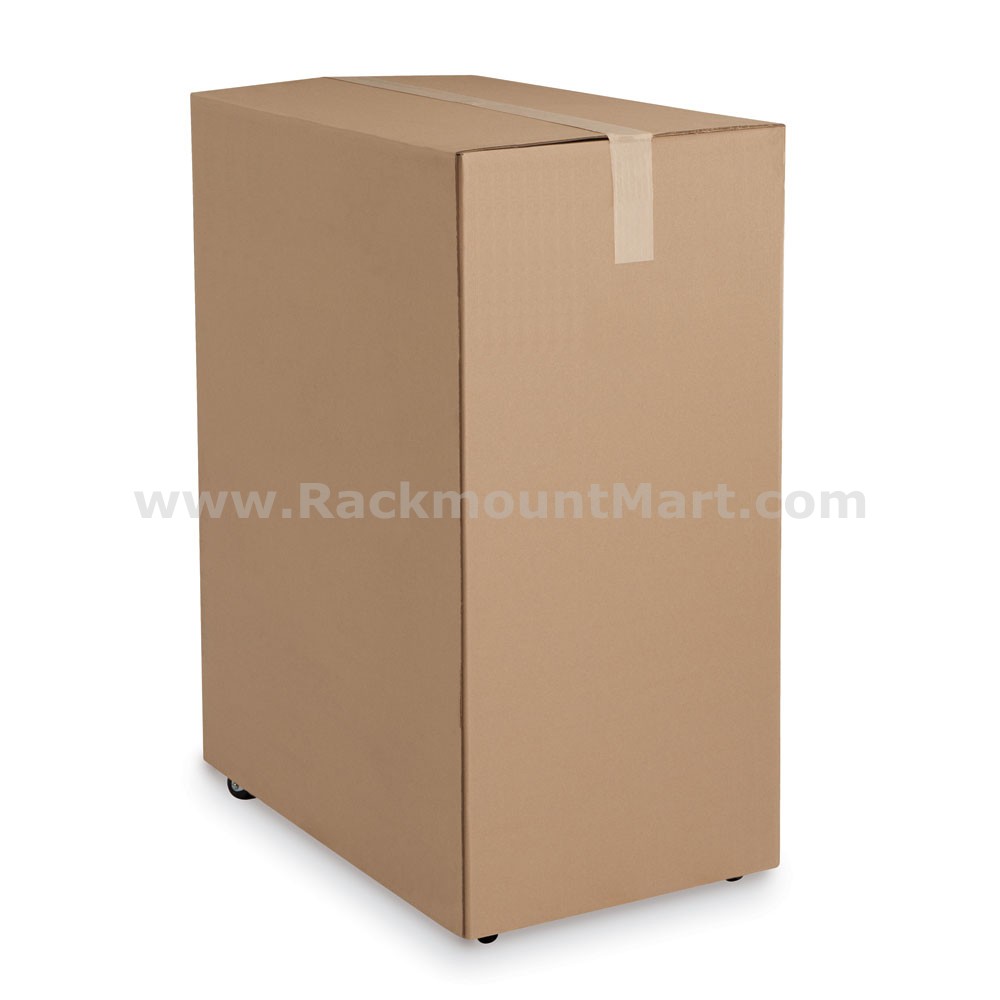

Package Content
  • Qty 1 - 27U Server Cabinet - No Doors/No Side Panels

Gallery


Optional Vertical Rail Kit
Height Cage Nut 10-32 Tapped
27U PT-SRL-27U-KH PT-SRL-27U-KH-T

 Ordering Information

Part Number Description
 CR1212-A 27U Server Cabinet - No Doors/No Side Panels - 24" Inside Depth (27" overall depth)
Options
 CR1212
27U Server Cabinet - Glass/Vented Doors - 24" Inside Depth
 CR1212-C
27U Server Cabinet - No Doors - 24" Inside Depth
 CR1212-G/S
27U Server Cabinet - Glass/Solid Doors - 24" Inside Depth
 CR1212-C/G
27U Server Cabinet - Convex/Glass Doors - 24" Inside Depth
 CR1212-G/G
27U Server Cabinet - Glass/Glass Doors - 24" Inside Depth
 CR1212-S/C
27U Server Cabinet - Solid/Convex Doors - 24" Inside Depth
 CR1212-C/C
27U Server Cabinet - Convex/Convex Doors - 24" Inside Depth
 CR1212-S/V
27U Server Cabinet - Solid/Vented Doors - 24" Inside Depth
 CR1212-V/V
27U Server Cabinet - Vented/Vented Doors - 24" Inside Depth
 CR1212-S/S
27U Server Cabinet - Solid/Solid Doors - 24" Inside Depth
 CR1212-C/V
27U Server Cabinet - Convex/Vented Doors - 24" Inside Depth
