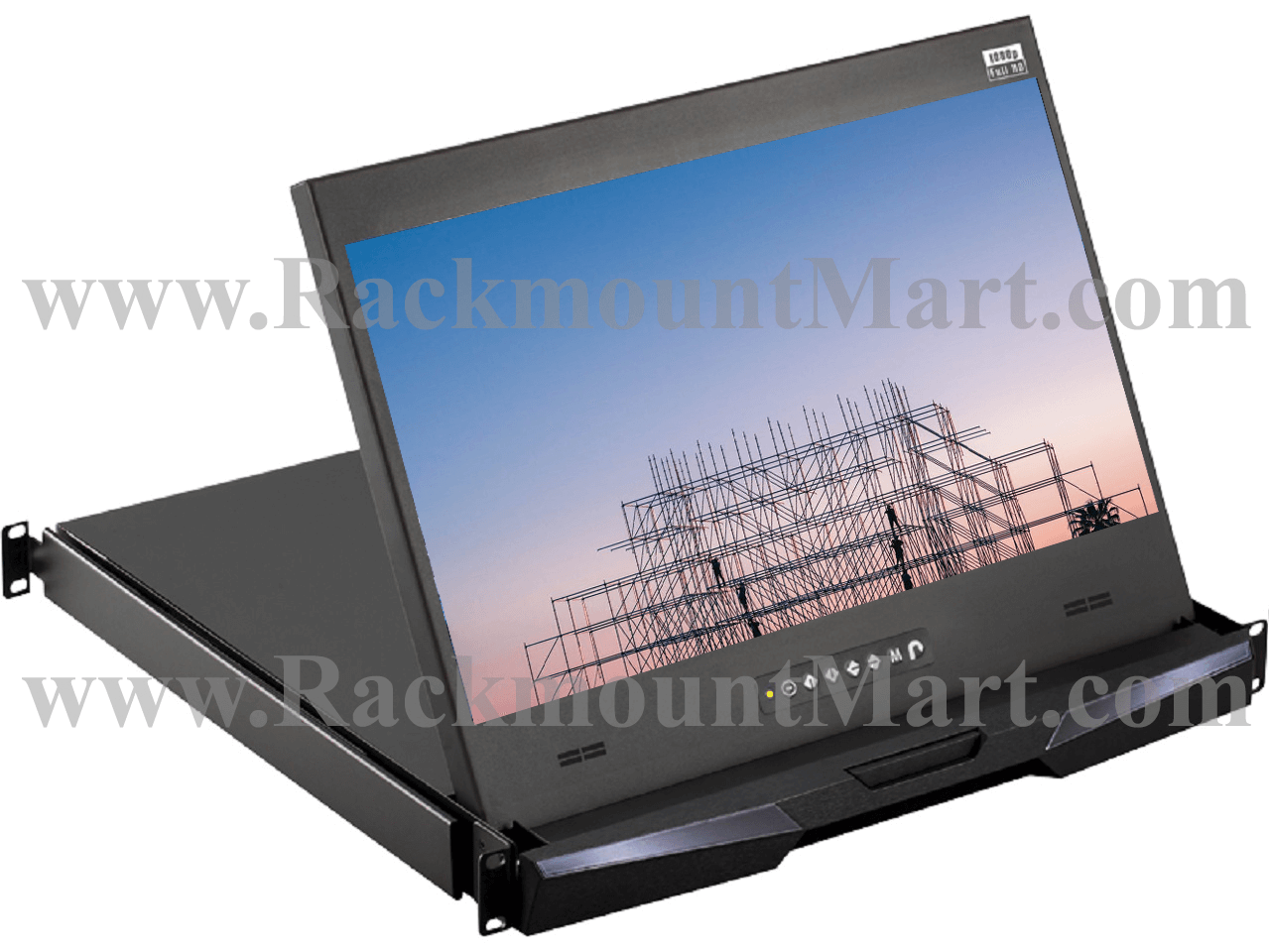

1U Rackmount 19" 1080p LED Monitor Drawer
Model  LCD1U19-019


SiriusView 1U Rackmount 18.5" FHD LED Monitor Drawer
TAA Compliant


LCD1U19-019

    Drawer Features & Display Benefits
  • 1U 19" Full HD LED-backlit Monitor Drawer
  • 1920 x 1080 native resolution
  • Short depth design of 18.9" (480mm ) only
  • TAA Compliant
    Options
  • 3G / HD / SD-SDI Broadcast-grade input + Speakers
  • DisplayPort (DP) + Speakers
  • DVI-D + Audio input & output + Speakers
  • Composite Video + Audio input + Speakers
  • Dual stereo speakers for HDMI
  • 250V , 125V , 110V , 48V, 24V or 12V DC power

                     General Information

Form Factor

1U Rack mounting on slide-out rails

                          LCD Screen

LCD Type

High Brightness Active Matrix TFT

Display Size

18.5 inch diagonal

Backlight

LED

Display Area

408.98 x 230.04 mm (HxV)

Resolutions

1920 x 1080

Contrast ratio

1,200 : 1

Brightness

500 cd/ m2

Dot pitch

0.213 mm

Response time

30 ms

Panel color

16.7 M

Viewing angle

85/85/85/85 ( L/R/U/D)

Signal Input

VGA / HDMI

Surface treatment

Anti-glare, Hard-coating

Surface hardness

3H

LCD MTBF

50,000 hrs

                          Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Screen on : Max. 14 Watt
Power saving mode : Max 2 Watt
Power button on : Max 1 Watt
                     Environmental

Storage temp.

-20ºC to 70ºC

Operating temp.

-20ºC to 70ºC

Relative Humidity

5 ~90%, non condensing (Storage)
10 ~90%, non condensing (Operating)

Shock

10G peak acceleration (11ms duration)

Altitude 16,000 ft (Operating)
40,000 ftn(Non-Operating)

Vibration

10~300Hz 0.5G RMS random vibration

                          Mechanical
Dimension: 442 x 440 x 44 mm / 17.4 x 17.3 x 1.73 inch (WxDxH)
Product Weight 11 kgs / 24.2 lbs
                              Regulatory Approval
  FCC & CE
REACH & RoHS3 /WEEE
CE/LVD & UKCA
TAA Compliant

  DataSheet
  User Manual


 Free Ground Shipping. Learn More.

Contact Us for Price



Ordering Information

Part Number  Description
LCD1U19-019
1U Rackmount 19" 1080p Monitor Drawer, VGA + HDMI
Optional Video/Audio Inputs
-HDMI
VGA + HDMI + Speakers for HDMI
* Chassis depth extended to 20.87"/530mm
-DVI
DVI-D + Audio + Speaker + VGA + HDMI
* Chassis depth extended to 20.87"/530mm

-DP
DisplayPort + VGA + HDMI + Speaker
* Chassis depth extended to 20.87"/530mm
-BNC
BNC + Audio IN + Speaker + VGA + HDMI
* Chassis depth extended to 20.87"/530mm
-AV
BNC with RCA adapter + Audio IN + Speaker + VGA + HDMI
* Chassis depth extended to 20.87"/530mm
-SDI
3G-SDI + VGA + HDMI + Speaker
* Chassis depth extended to 20.87"/530mm

Optional DC power
-DC12 Change to 12V DC power supply
* Chassis depth extended to 20.87"/530mm
-DC24 Change to 24V DC power supply
* Chassis depth extended to 20.87"/530mm
-DC48 Change to 48V DC power supply
* Chassis depth extended to 20.87"/530mm
-DC110
Change to 110V DC power supply
* Chassis depth extended to 20.87"/530mm
-DC125
Change to 125V DC power supply
* Chassis depth extended to 20.87"/530mm
-DC250
Change to 250V DC power supply
* Chassis depth extended to 20.87"/530mm
