7U Rackmount 17" LCD Display Panel
Model LCDR7U17-06

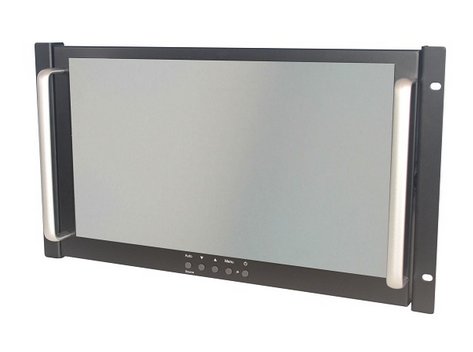

SiriusView 7U Rackmount Tilting 4K Monitor

Panel: 17" 4K LCD panel
Display type	17.3"
Resolutions	3840x2160
Pixel Size (HxV)	0.0995 x 0.0995 mm
Contrast ratio	1000 : 1 typical
Brightness	400 cd/ m2 typical
Panel color	16.7 million display colors
Viewing angle	178 (Horiz.) / 178 (Vert.)
Back light	LED
LCD MTBF	30,000 hrs
Signal Input	Display- Port 1.4 ( 4K-60Hz ), 2 x HDMI 2.0 ( 4K-60Hz)
Power Supply	Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Inpu
Weight	7 kgs / 15.2 lbs
Dimension	18.98 x 2.44 x 12.2 inch / 482 x 62 x 310 mm (Wx D x H)
Temperature	0 to 50 Degree Celsius (Operation)
Operating Humidity	5~95%, non-condensing
Shock	15G / Peak (11 ms)
Vibration	5 - 500 Hz / 1 Grms PTP
Safety Approval	FCC, CE,RoHS

LCDR7U17-06

	Data Sheet
	User Manual
	Drawing

Features

17.3 inch TFT LCD wide screen support 4K resolution 3840 x 2160

Support 1920 x 1080 & 1920 x 1200 resolution

Display-Port 1.4 x1 , HDMI 2.0 x 2

90 ° tilt adjustment: 45°~ -45°(V)

Options

9-36V DC power input

AR Hardness glass

Touchscreen

Gallery

Ordering Information

Part Number Description

LCDR7U17-06
7U Rackmount 17" 4K Tilting Monitor
