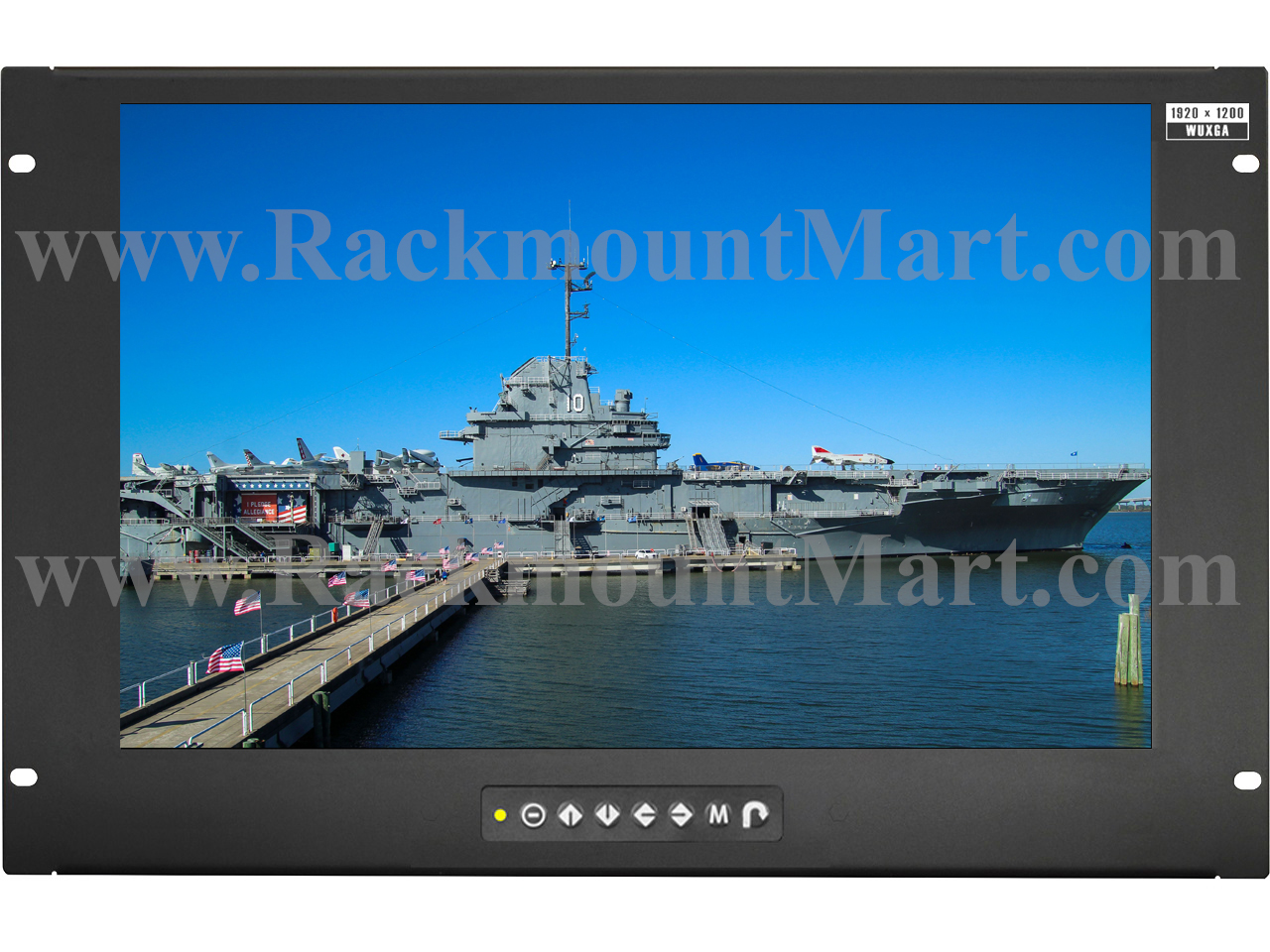

7U Rack Mount 18" WUXGA MONITOR
Model LCDR7U19-10
SiriusView 7U Rackmount 18" High Resolution 1920 x 1200 Monitor
TAA Compliant
|
Display
type
|
18" Widescreen Monitor, Industrial Grade |
|
Max Resolutions
|
1920 x 1200
|
|
Contrast
ratio
|
1000
: 1 t
|
|
Brightness
|
300 cd/
m2
|
|
Dot pitch ( mm )
|
0.202
|
|
Panel
color
|
16.7 M
|
|
Viewing
angle
|
89/89/89/89 degree
|
|
Signal input
|
VGA + HDMI 1.4 |
|
MTBF (hrs)
|
15,000
|
|
Speaker
|
Built-in Dual Stereo Speakers |
|
Power
|
Auto-sensing 100 to 240VAC, 50 / 60Hz
|
|
Mechanical |
|
Product Dimension
|
18.9W x 2.3D x 12.2H inch
/
480W x 58D x 310H mm
|
|
Net Weight
|
12.8 lbs
|
|
Environmental |
Temperature
|
0 to 55
Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage) |
|
Relative Humidity
|
10~90%, non condensing (Operation)
5~90%, non condensing (Storage) |
| Attitude |
16,000 ft (Operating)
40,000 ft (Non-Operating) |
| Shock |
10G peak
acceleration ( 11ms duration ) |
|
Vibration |
10~300Hz, 0.5G RMS random vibration |
|
Compliance
|
FCC, CE
CE / LVD & UKCA
REACH & RoHS3 / WEEE
TAA Compliant |
|
|
|
DISPLAY BENEFITS :
- 7U rackmount 18" industrial Grade widescreen LCD
- 1920 x 1200 native WUXGA Ultra high resolution
- Support 1080p Full HD
- PIP Sub-screen & PBP Dual-screen viewing efficiency
- Built-in HDMI 1.4, , VGA Video input
- Built-in dual stereo speakers
|
 |
0PTIONS :
- DisplayPort DP 1.0 / HDCP 1.3, DVI-D, Audio
- 3G / HD / SD-SDI Broadcast-grade input
- Composite ( BNC) NTSC & PAL
- Multi-display control solution
- Touchscreen, NEMA4 Protection
- DC power: 250V, 125V, 110V, 48V, 24V or 12V
- MIL-type or lockable connector
|
Back to top
Ordering Information
| Part
Number |
Description |
LCDR7U19-10
|
7U 18" widescreen High Resolution LCD Display with VGA + HDMI |
| Optional NEMA4 / IP65 |
-IP65
|
NEMA4 / IP65 Protective Glass |
| Optional Video/Audio Inputs |
-SDI
|
3G-SDI + Speaker + VGA + HDMI |
|
-SPK
|
Speaker + VGA + HDMI |
|
-BNC
|
BNC + Audio IN + Speaker + VGA + HDMI |
|
-MC
|
MCS + VGA + HDMI |
Download Spec Sheet |
| Optional Touch screen |
-TRB
|
Resistive1-Point Touch screen & USB controller |
-TPC
|
Projective Capacitive 10-Point Touch screen & USB controller |
| Optional
DC Input Power |
| -DC12 |
Change to 12V DC power supply |
| -DC24 |
Change to 24V DC power supply |
| -DC48 |
Change to 48V DC power supply |
-DC110
|
Change to 110V DC power supply |
-DC125
|
Change to 125V DC power supply |
-DC250
|
Change to250V DC power supply |
| Optional
Lockable Jack |
| -MD |
MIL-type Lockable DC Power jack, Male |
|
| -MA |
MIL-type Lockable VGA jack, Male |
|
| -LD |
Lockable DC Power jack, Male |
|
| -LS |
Lockable USB jack for touch screen |
|
