Metered-by-Outlet Rack PDU
Part#  ABH-024-C-20A-IEC

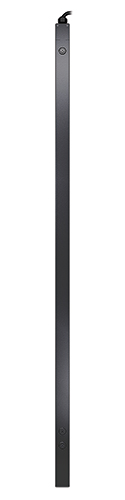

High-Power 3-Phase Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19


*click on photo for enlarged view
Metered by Outlet with Switching Rack PDU, Input: 400V 3PH, Input Connections: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E, Output: 230V, Output Connections: IEC 320 C13, IEC 320 C19

Includes : CAN Port Terminator, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable




Features
Metering-by-Outlet capability   Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
Network Management Capabilities   Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Remote Individual Outlet Control   Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Alarm Thresholds   Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see specifications for availability)

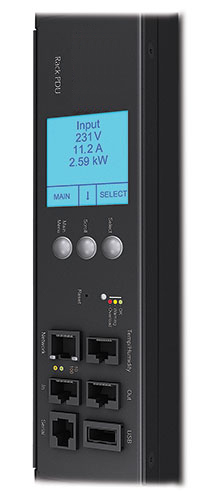

Local Current Monitoring Display   The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Power Delays   Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
Load indicator LED   Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. (Note: Only available with units with local current monitoring feature)
Flash Upgradeable   Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Integrates with StruxureWare Data Center Expert   An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Specifications
 Output
Nominal Output Voltage   230V
Maximum Total Current Draw per Phase   16A
Output Connections   (21) IEC 320 C13
(3) IEC 320 C19
Overload Protection   No
 Input
Nominal Input Voltage   400V 3PH
Input Frequency   50/60 Hz
Regulatory Derated Input Current
(North America)
  16A

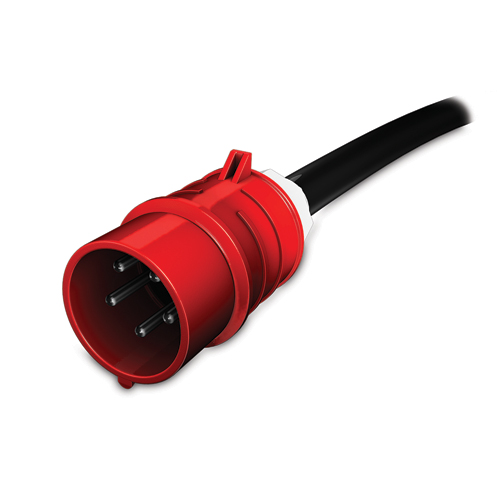

Input Connections   IEC 309 16A 3P+N+PE
IEC 309 20A 3P+N+E

Cord Length   1.83 meters
Maximum Line Current per phase   16A
Maximum Input Current per phase   16A
 Physical
Net Weight   18.1 lbs (8.23 KG)
Maximum Height   72 inches (1829.00 mm)
Maximum Width   2.2 inches (56.00 mm)
Maximum Depth   2.0 inches (51.00 mm)
Color   Black
 Environmental
Operating Environment   -5 - 45 °C
Operating Relative Humidity   5 - 95%
Operating Elevation   0-10000 feet (0-3000 meters)
Storage Temperature   -13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity   5 - 95%
Storage Elevation   0-50000 feet (0-15000 meters)
 Conformance
Regulatory Approvals   EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VDE
 Sustainable Offer Status
RoHS   Compliant
REACH   REACH: Contains No SVHCs
Battery Directive   Compliant
Battery Notes   Contains Lithium Coin Cell
Metered-by-Outlet Rack PDU Features & Benefits
Single input power source   Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Documentation
Metered by Outlet with Switching Rack PDU User Guide Dimensional Drawing
Product sheet - System Overview


More photos ( s )


 Ordering Information

Part # Description
 ABH-024-C-20A-IEC
 Price : $1831.08
High-Power 3-Phase Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19
