Cable Management


Part #
CM01

 Part # CM01
 Metal cable management ring (Left)
 Specification
  • Dimensions(WxDxH):4" x 2" x 1.9"
  • CM03

     Part # CM03
     Cable management shunting rail
     Specification
  • Dimensions(WxDxH):19" x 1.3" x 0.4"

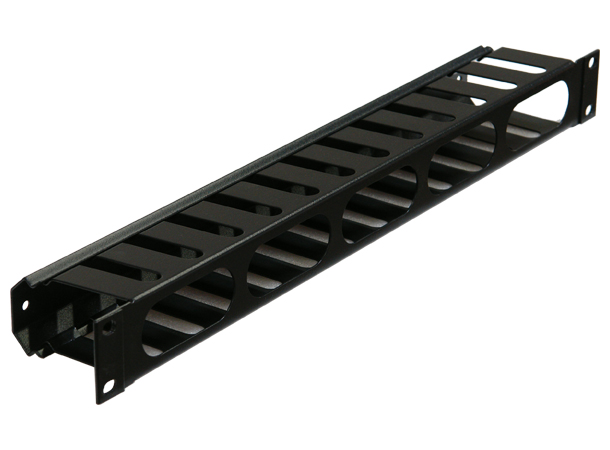

  • CM04




     Part # CM04
     1U Horizontal Wire Manager - Closed Design
     Specification
  • Dimensions( W x D x H ):19" x 1.75" x 1.75"
  • Durable black powder coated finish
  • Brackets accomodate 19" patch panels
  • Accepts 10/24 or 12/32 screws
  • Mounts on any standard 19" rack or wall mount
  • Weight: 2 lbs
  • CM08

     Part # CM08

    Wires Fixing Bracket
     Specification
  • 16 Gauge sheet metal
  • Zinc plated
  • Dimensions: 19"W x 1.75"H x 0.75"D
  • CM09

     Part # CM09
     Cable access panel with 0.39"hole
     Specification
  • 20 of 0.39" diameter hole
  • 16 gauge sheet metal
  • 19"(w) x 1.75" (d) x 1.75" (h)
  • CM10

     Part # CM10

    CABLE ACCESS PANEL W/BRUSH
     Specification
  • With brush
  • 16 Gauge sheet metal
  • dimensions 19"W x 1.75"H x 1.75"D
  • Please call for pricing
  • Drawing
    CM11

     Part # CM11
     Cable Management Panel
     Specification
  • w/ 6 CM05 metal D rings
  • dimensions: 19"W x 1.75"H
  • CM12

     Part # CM12
     Horizontal plastic cable duct
     Specification
  • 17" Duct with 1.5U 19" panel
  • CM13

     Part # CM13
     Vertical plastic cable duct
     Specification
    - 2.25"(w) x 1.75"(d) x Customize length
  • Please call for pricing
  • CM14-sub




     Part # CM14-sub
     1U Metal cable management
     Specification
  • Dimensions(WxDxH):19" x 3.25" x 1.75"
  • CM16-sub


     Part # CM16-sub
     2U Horizontal Wire Manager - Closed Design
     Specification
  • Dimensions(WxDxH):19" x 3" x 3.5", Color:Black, Weight:2 lbs
  • CM17




     Part # CM17
     45U Vertical Wire Manager
     Specification
  • Fits 2 and 4 post open racks
  • Made of durable steel and features dual hinged front panel for easy access
  • Mounts on either side of a rack
  • Weight : 55 lbs
  • Dimensions(WxDxH):5" x 6" x 84"
  • Please call for pricing
  • Data Sheet
    CM17-T




     Part # CM17-T
     45U Vertical Wire Management For 2 & 4 Post Open Rack
     Specification
  • Fits 2 and 4 post open racks
  • Made of durable steel and features dual hinged front panel for easy access
  • Mounts on either side of a rack
  • Dimensions(WxDxH):4.5" x 3.75" x 79"
  •
    CM18


     Part # CM18
     1U Cable Management

    CM19


     Part # CM19
     2U Cable Management

    CMA01

     Part # CMA01
     1U Cable Routing Blank
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 0.5" x 1.72"
  • CMA02

     Part # CMA02
     1U D-Ring Cable Management Kit
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 4.3" x 1.72"
  • CMA03

     Part # CMA03
     1U Managed Cable Minder
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 2" x 1.72"
  • CMA04

     Part # CMA04
     1U Tool-less 5 D-Ring Cable Manager
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 2.264" x 1.72"
  • CMA05

     Part # CMA05
     2U Cable Routing Blank
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 0.5" x 3.47"
  • CMA06

     Part # CMA06
     2U Tool-less 5 D-Ring Cable Manager
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 2.264" x 3.47"
  • CMA07

     Part # CMA07
     Universal Wire Minder
     Specification
  • Made in the USA
  • Dimensions(WxDxH):3.875" x 2" x 1.72"
  • CMA08

     Part # CMA08
     1U Finger Duct Cable Manager
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 3.07" x 1.73"
  • CMA09

     Part # CMA09
     2U Finger Duct Cable Manager
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 3.07" x 3.48"
  • CMA10

     Part # CMA10
     1U Slotted Routing Cable Manager
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 3.07" x 1.73"
  • CMA11

     Part # CMA11
     2U Slotted Routing Cable Manager
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 3.07" x 3.48"
  • CMA12

     Part # CMA12    1U Flat Cable Lacing Panel
     Part # CMA12-10    1U Flat Cable Lacing Panel - 10 pack
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 0.06" x 1.72"
  • CMA13

     Part # CMA13    2U Flat Cable Lacing Panel
     Part # CMA13-10    2U Flat Cable Lacing Panel - 10 pack
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 0.06" x 3.47"
  • CMA14

     Part # CMA14    Flanged Lacing Bar
     Part # CMA14-10    Flanged Lacing Bar - 10 pack
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 1.00" x 0.583"
  • CMA15

     Part # CMA15    3" D Flanged Lacing Bar
     Part # CMA15-10    3" D Flanged Lacing Bar - 10 pack
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 3.00" x 0.563"
  • CMA16

     Part # CMA16    5" D Flanged Lacing Bar
     Part # CMA16-10    5" D Flanged Lacing Bar - 10 pack
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 5.00" x 0.563"
  • CMA17

     Part # CMA17
     1U Cable Lacing Shelf
     Specification
  • Made in the USA
  • Dimensions(WxDxH):19" x 6.00" x 1.72"
  • CMA-PT-10

     Part # CMA-PT-10
     Hook and Loop Cable Ties - 10 pack
     Specification
  • Made in the USA
  • Dimensions(WxDxH):8" x 0.05" x 1.00"
  • CM-VS-018

     Part # CM-VS-018
     Cable Hoops: Facilitate side / vertical cable management
     Specification
  • 5 pieces of cable hoops
  • With 5 sets of screw and nut
  • CR2004  Cable Holder

    -Features   :  Used with Open Rack and to Keep
                          any cable line tidy

    -Dimensions:  60(W) x 80(H) x 44(D)mm



    CMG01

     Part # CMG01
     1U Cable Management Panel - 5 Vert Rings
     Specification
  • Dimensions(WxDxH):19.25" x 4.00" x 1.75"
  • Made in USA
  • CMG02

     Part # CMG02
     1U Cable Management Panel - 2 Horiz/4 Vert Rings
     Specification
  • Dimensions(WxDxH):19.25" x 4.00" x 1.75"
  • Made in USA
  • CMG03

     Part # CMG03
     1U Cable Management Panel - 2 Horiz/18 Vert Rings
     Specification
  • Dimensions(WxDxH):19.25" x 4.00" x 1.75"
  • Made in USA
  • CMG04

     Part # CMG04
     2U Cable Management Panel - Horiz Guides
     Specification
  • Dimensions(WxDxH):19.25" x 4.00" x 3.5"
  • CMG05

     Part # CMG05
     2U Cable Management Panel - Horiz & Vert Guides
     Specification
  • Dimensions(WxDxH):19.25" x 4.00" x 3.5"
  • Made in USA
  • CMG06

     Part # CMG06
     2U Cable Management Panel - 5 Front Rings 4 Back
     Specification
  • Dimensions(WxDxH):19.25" x 8.00" x 3.5"
  • Made in USA
  • CMG07

     Part # CMG07
     1U Cable Management Horizontal Channel - Front - 1.5in x 2in
     Specification
  • Dimensions(LxWxH):19" x 1-1/2" x 2"
  • Made in USA
  • CMG08

     Part # CMG08
     2U Cable Management Panel - Finger Duct - Front
     Specification
  • Dimensions(WxDxH):19.25" x 4" x 3.5"
  • Made in USA
  • CMG09

     Part # CMG09
     2U Cable Management Wire Channel Panel - Front/Back
     Specification
  • Dimensions(WxDxH):19" x 7 1/4" x 3.5"
  • Made in USA
  • CMG10

     Part # CMG10
     Cable Support Bar - 3.5in x 19in Lacing Bar - Black - Bulk
     Specification
  • Dimensions(WxDxH):19.25" x 3.5" x 0.375"
  • Made in USA
  • CMG11

     Part # CMG11
     Cable Management Ring - 3" Vertical w/ 1 Bracket
     Specification
  • Dimensions(WxDxH):3" x 6" x 0.375"
  • Made in USA
  • CMG12

     Part # CMG12-A  Cable Management Ring - 3" Vertical w/ 1 Bracket
     Part # CMG12-B  Cable Management Ring - 6" Vertical w/ 2 Brackets
     Specification
  • Dimensions(WxDxH):6" x 10" x 0.375"
  • Made in USA
  • CMG13

     Part # CMG13
     Cable Management Vertical Channel - Side Mount
     Available Length : 2Ft, 4Ft, 6Ft
     Specification
  • Dimensions(LxWxH):24"/48"/72" x 3" x 3"
  • Made in USA
  • CMG14

     Part # CMG14
     Cable Management Vertical Channel - Bridge Mount
     Available Length : 2Ft, 4Ft, 6Ft
     Specification
  • Dimensions(LxWxH):24"/48"/72" x 3" x 3"
  • Made in USA
  •
