Model RLB-101
Cabinet LED Light Bar with IR Sensor
NDAA Compliant & TAA Compliant
|
|
Data center demands the high quality cabinet level illumination. The stylist designed LED light bar is ideal and cost effcient
to achieve the simple requirement.
By the integrated IR sensor, the LED light bar provides the Auto ON / OFF mode :
- Light ON when opening door
- Light OFF when closing door
The magnetic base of the light bar provides an easy, fast and tool-less affix.
Low-profile design allows flexible positioning which is perfect for the limited cabinet space.
|
|
Gallery
| Key Benefits |
Auto ON / OFF
Auto ON / OFF by IR sensor allows user friendly illumination
Light ON when the door opened
Light OFF when the door closed
|
 |
Easy Setup
Magnetic base design for tool-less affix
Low-profile design allows flexible positioning
Simple components allow D I Y installation
|
 |
High Visibility
250 Lumens light output
Cool white light for clear and superb view
Color Temperature : 2850 - 7100k
|
 |
|
| Product |
RLB-101 |
RLB-101-2 |
| Package contents |
|
Single LED Package
- LED light bar x 1
- Auto switch power adapter |
Dual LED Package
- LED light bar x 2
- Auto switch power adapter
- Y-power cable |
 |
| ON / OFF |
Auto by IR sensor |
✔ |
| Sensing Distance |
4 cm |
|
| Light Bar No. |
|
1 |
2 |
|
| Light |
Color |
Cool White |
| Lumens ( typ. ) |
250 LM |
| Angel |
120° Degree |
| Color Temperature |
2850 - 7100K |
| LED Life Expectancy |
30,000 hrs |
|
| Power |
Input |
Auto-sensing 100V or 240VAC via power adapter |
| Consumption |
4.5 Watt ( 12V ) per LED light bar |
|
| Housing |
Chassis |
Extruded aluminum with silver powder coat |
| Diffuser |
Acrylic with milky white |
| Affix |
Magnetic base for unrestricted installation |
|
| Environmental |
Operating |
-20 to 40°C Degree ( Indoor ) |
|
| Dimensions |
Product ( L x W x H ) |
300 x 25 x 13.5 mm |
|
| Weight |
Net |
86g ( per LED ) |
|
| Regulatory |
Safety / Environmental |
CE & FCC certifi ed / RoHS, TAA & NDAA compliant |
|
| Documentations |
|
|

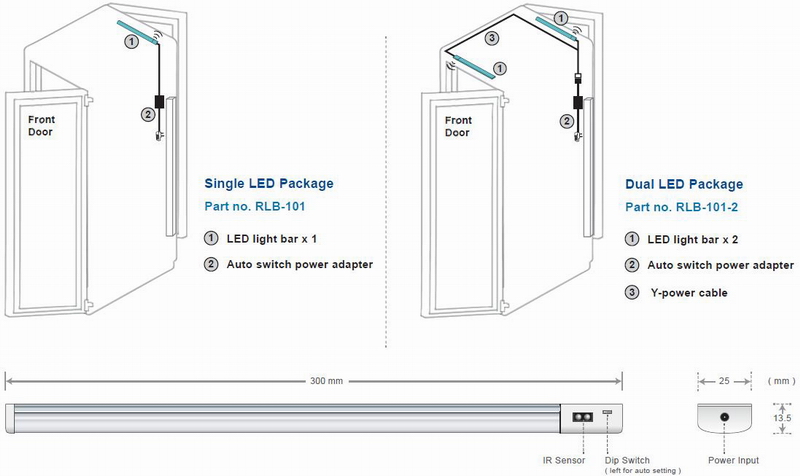

Connection Diagram
| 1A Power Adapter Plug Selection |
BS1363 |
CEE 7/16 |
NEMA 1-15P
(Default) |
AS 3112 |
| 2.5A Power Adapter ( optional ) |
IEC C14
with 6 ft C13 - C14 power cord |
|
|
|
Ordering Information
| Part Number |
Description |
| RLB-101-US
|
Cabinet / Rack LED light bar, single, with 1A / US power adapter
|

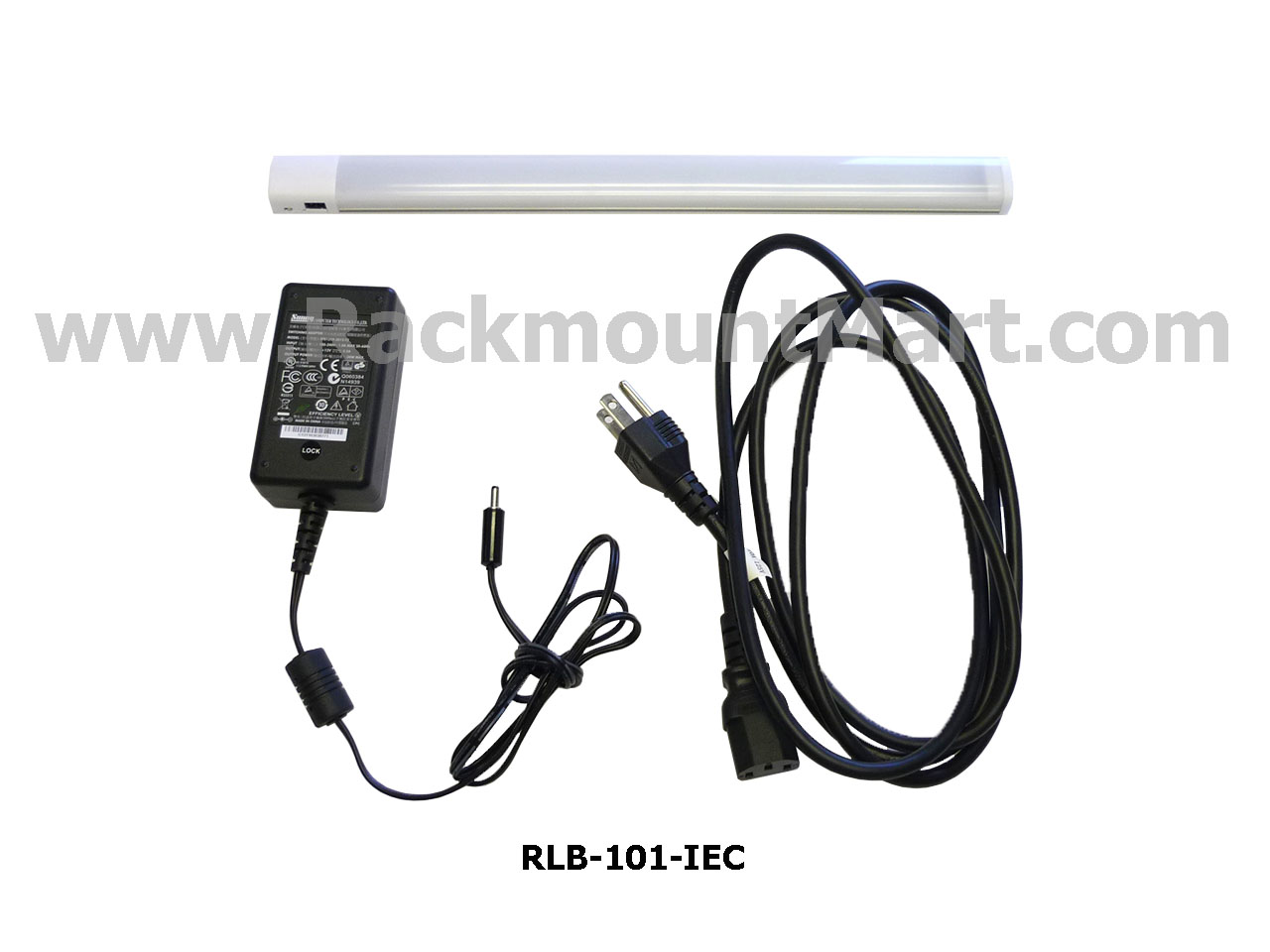

| RLB-101-IEC
|
Cabinet / Rack LED light bar, single, with 2.5A / IEC power adapter
|
| RLB-101-2-US
|
Cabinet / Rack LED light bar, dual, with 1A / US power adapter
|
RLB-101-2-IEC
|
Cabinet / Rack LED light bar, dual, with 2.5A / IEC power adapter
|
