Rack Shelf / Rack Mount Shelf / Rack Mount Keyboard Tray / Rack Mount Tray

	4-Post 19" Wide Rack Shelf
	Sliding		Fixed
	Adjustable	Non-Adjustable	Adjustable	Non-Adjustable
1U
1.5U
2U
3U	*New Items added: Swivel Shelf , 3-in-1 Shlef & Keyboard Drawer

	2-Post 19" Wide Rack Shelf	4-Post 23" Wide Rack Shelf
1U
2U
3U

	Centerline Shelf	Wall Mount Shelf
1U
2U
3U

	Rack Helper
2U

PART NUMBER

ADSU1825BK

ADSV1825BK

1U 18"- 25" Adjustable Telescoping Solid / Vented Shelf

Features:
-14-Gauge Steel, Load Capacity: 350 lbs
-Optional Support Bar increases load capacity up to 550 lbs
-EIA , RoHS, REACH & TAA Compliant
-Manufactured in Canada

Dimensions:	1.72" (H) x 19"(W) x Adjustable Depth Range: 18" to 25"

ADSU2536BK

ADSV2536BK

1U 25"- 36" Adjustable Telescoping Solid / Vented Shelf

Features:
-14-Gauge Steel, Load Capacity: 350 lbs
-Optional Support Bar increases load capacity up to 550 lbs
-EIA , RoHS, REACH & TAA Compliant
-Manufactured in Canada

Dimensions:

1.72" (H) x 19"(W) x Adjustable Depth Range: 25" to 36"

ADSU3642BK

ADSV3642BK

1U 36"- 42" Adjustable Telescoping Solid / Vented Shelf

Features:
-14-Gauge Steel, Load Capacity: 275 lbs
-Optional Support Bar increases load capacity up to 450 lbs
-EIA , RoHS, REACH & TAA Compliant
-Manufactured in Canada

Dimensions:

1.72" (H) x 19"(W) x Adjustable Depth Range: 36" to 42"

CR2005

1U 19.7" Full Size Support Tray

Features:
- For Open Rack
- Suitable for non-standing and heavy weight application
- Load Capacity : 130 lbs
- 2 pieces per set

Dimensions:

1.7" (H) x 19"(W) x 19.7" (D)

CR2006

2U Rackmount Half Size Support Tray, 11" or 15.7" Depth

Features:
- For Open Rack
- Suitable for non-standing and heavy weight application
- Load Capacity : 55 lbs

Model CR2006-A
Dimensions:	3.5" (H) x 19"(W) x 11" (D)

Model CR2006-B Drawing
Dimensions:	3.5" (H) x 19"(W) x 15.7" (D)

RA7001

1U Sliding Rack Vented Shelf with Lock, 17" or 23" Depth

Features: -Load Capacity: 70 lbs -EIA , RoHS & TAA Compliant, Manufactured in Taiwan
Model RA7001-17 Drawing
Overall Dimensions:	1.75" (H) x 19"(W) x 18.25" (D)
Effective Dimensions:	1.75" (H) x 16.75"(W) x 15.75" (D)
Rail Mounting Depth:	18.25"" (Min.) 22.75"(Max.)
Model RA7001-23 Drawing
Overall Dimensions:	1.75" (H) x 19"(W) x 26.5" (D)
Effective Dimensions:	1.75" (H) x 16.75"(W) x 23.5" (D)
Rail Mounting Depth:	26.5"" (Min.) 36"(Max.)

RA7002

2U Fixed Solid Shelf, 19" , 23" , 27 or 31" Depth

Features: -Load Capacity:200 lbs -EIA , RoHS & TAA Compliant, Manufactured in Taiwan
Model RA7002-19
Overall Dimensions:	3.5" (H) x 19"(W) x 19" (D)
Effective Dimensions:	3.5" (H) x 17.5"(W) x 19" (D)
Rail Mounting Depth:	17"" (Min.) 24.5"(Max.)
Model RA7002-23 Drawing
Overall Dimensions:	3.5" (H) x 19"(W) x 23" (D)
Effective Dimensions:	3.5" (H) x 17.5"(W) x 23" (D)
Rail Mounting Depth:	17"" (Min.) 30.5"(Max.)
Model RA7002-27
Overall Dimensions:	3.5" (H) x 19"(W) x 27" (D)
Effective Dimensions:	3.5" (H) x 17.5"(W) x 27" (D)
Rail Mounting Depth:	17"" (Min.) 35"(Max.)
Model RA7002-31
Overall Dimensions:	3.5" (H) x 19"(W) x 31" (D)
Effective Dimensions:	3.5" (H) x 17.5"(W) x 31" (D)
Rail Mounting Depth:	17"" (Min.) 39"(Max.)

RA7003

1U 19.5" - 31.5" Adjustable Solid Shelf

Features:
-Load Capacity: 280 lbs
-EIA , RoHS & TAA Compliant, Manufactured in Taiwan
Drawing

Dimensions:	1.75" (H) x 19"(W) x Adjustable Depth Range: 19.5" to 31.5"
Shelf Depth:	17.5"
Rail Depth:	19.5"" (Min.) 31.5"(Max.)

RA7004

1U Fixed Vented Shelf 19" Depth, For Use With Frame Rack

Features:
-Load Capacity: 150 lbs
-L & Z Brackets included
-EIA , RoHS & TAA Compliant, Manufactured in Taiwan

Overall Dimensions:	1.75" (H) x 19"(W) x 19"(D)
Effective Dimensions:	1.75" (H) x 17.5"(W) x 19"(D)

RA7005

2U Solid Shelf 27.75" Depth

Features:
-Heavy Duty
-EIA , RoHS & TAA Compliant, Manufactured in Taiwan

Overall Dimensions:	3.75" (H) x 19"(W) x 27.75"(D)
Effective Dimensions:	3.75" (H) x 17.5"(W) x 16.38"(D)

RA7006

2U Fixed Vented Rack Shelf, 19" , 23" or 27 " Depth

Features:
-Load Capacity:200 lbs
-2 or 4 Corners or Center Mount
-EIA , RoHS & TAA Compliant, Manufactured in Taiwan

Model RA7006-19
Overall Dimensions:	3.5" (H) x 19"(W) x 19" (D)
Effective Dimensions:	3.5" (H) x 17.5"(W) x 19" (D)
Max. Bracket Depth:	25"
Model RA7006-23
Overall Dimensions:	3.5" (H) x 19"(W) x 23" (D)
Effective Dimensions:	3.5" (H) x 17.5"(W) x 23" (D)
Max. Bracket Depth:	28"
Model RA7006-27
Overall Dimensions:	3.5" (H) x 19"(W) x 27" (D)
Effective Dimensions:	3.5" (H) x 17.5"(W) x 27" (D)
Max. Bracket Depth:	35"

RA7008

2U Fixed Vented Rack Mount Cantilever Shelf, 26.75" Depth

Features:
-Load Capacity:250 lbs

Overall Dimensions:	3.5" (H) x 19"(W) x 28" (D)
Effective Dimensions:	3.5" (H) x 17 5/16"(W) x 26.75" (D)
Max. Bracket Depth:	33.5"

RA7010

1U Wall Mount Shelf, 9.75" Depth

Features:
-Load Capacity:30 lbs

Overall Dimensions:	1.75" (H) x 19"(W) x 11.5" (D)
Effective Dimensions:	1.75" (H) x 17.5"(W) x 11.5" (D)
Max. Bracket Depth:	17.75"

RA7011

2U Fixed Solid Shelf, 27" Depth, for 23" Wide Rack

Features:
-Load Capacity:200 lbs
-EIA , RoHS & TAA Compliant, Manufactured in Taiwan

Model RA7011-27 ( Solid Shelf)
Model RA7011-27-vp ( Vented Shelf) Drawing
Dimensions:	3.5" (H) x 23"(W) x 27" (D)

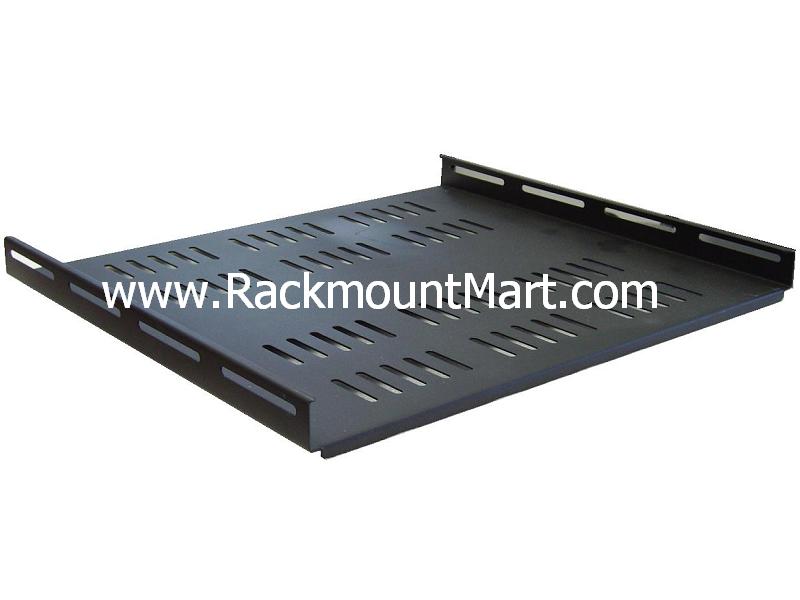

RA7030

1U Fixed Solid Shelf, 17", 23", 27" or 31" Depth

Features:
-Load Capacity:220 lbs
-EIA & RoHS Compliant
Drawing

Model RA7030-17
Dimensions:	3.5" (H) x 19 5/16"(W) x 17 3/8"" (D)
Model RA7030-23
Dimensions:	3.5" (H) x 19 5/16""(W) x 23" (D)
Model RA7030-27
Dimensions:	3.5" (H) x 19 5/16""(W) x 27" (D)
Model RA7030-31
Dimensions:	3.5" (H) x 19 5/16""(W) x 31" (D)

RA7031

1U Rackmount Sliding Vented Shelf, 17" or 23" Depth

Features:
-Load Capacity:66 lbs
-EIA & RoHS Compliant
Drawing

Model RA7031-17
Dimensions:	1.75" (H) x 19"(W) x 17 3/8" (D)
Effective Dimensions:	1.75" (H) x 17 5/16"(W) x 17 3/8" (D)
Max. Bracket Depth:	27.5"
Model RA7031-23
Dimensions:	1.75" (H) x 19"(W) x 23" (D)
Effective Dimensions:	1.75" (H) x 17 5/16"(W) x 23" (D)
Max. Bracket Depth:	31"

RA7033

1.5U Heavy Duty Pull-Out Vented Shelf, 27.5 " Depth

Features:
-Load Capacity:220 lbs
-EIA & RoHS Compliant
Drawing

Model RA7033
Dimensions:	2 5/8" (H) x 19"(W) x 27.5" (D)
Effective Dimensions:	2 5/8" (H) x 15.75"(W) x 27.5" (D)
Bracket Depth:	23 11/16"-37"

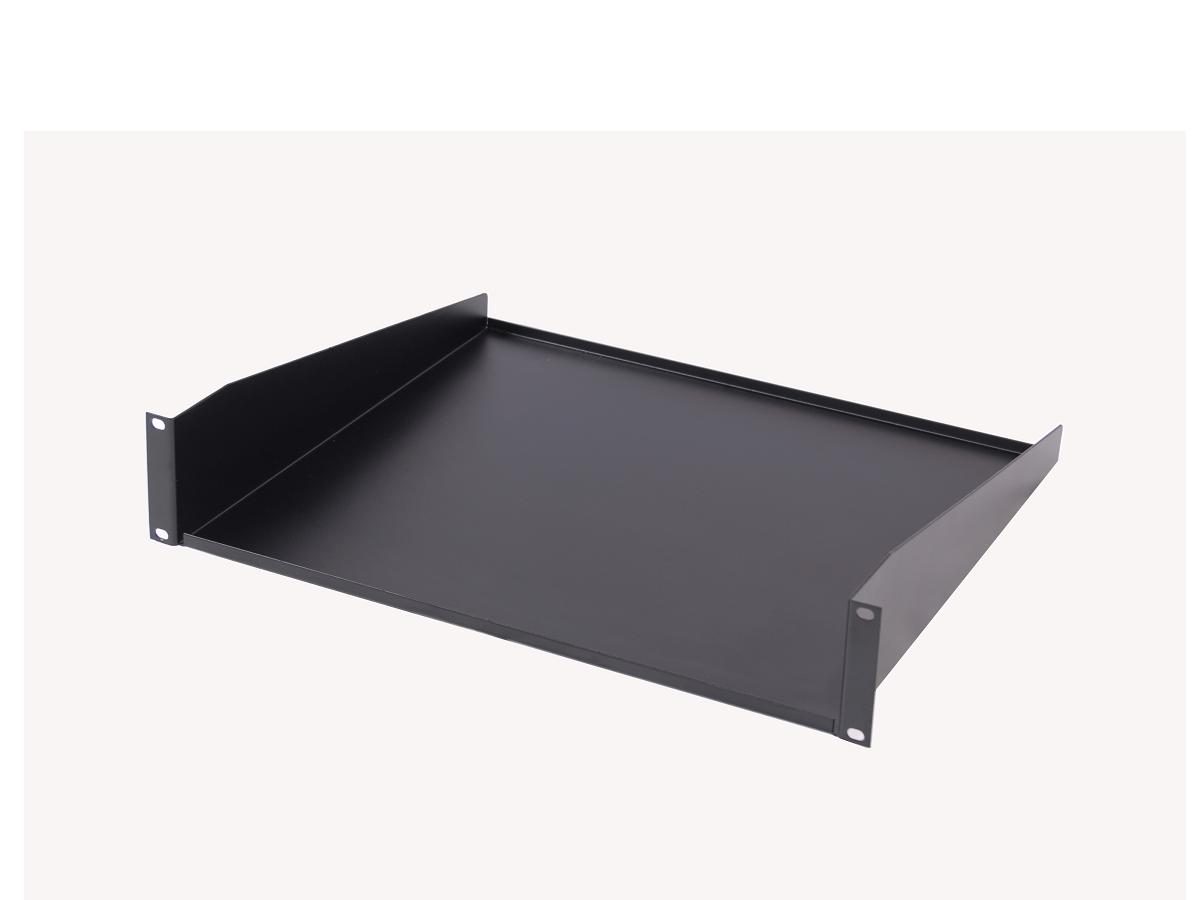

RA7041

1U Rackmount Single-Side Solid/Vented Shelf, 12" Depth

Features:
-12" tray depth to fit all components up to 17" wide
- 4 cage nuts, 4 M6 screws and washers included

Model RA7041-sp ( Solid Shelf)
Model RA7041-vp ( Vented Shelf)
Dimensions:	1.75" (H) x19"(W) x 12" (D)

RA7042

2U Rackmount Single-Side Solid/Vented Shelf, 15.75" Depth

Features:
-15.75" tray depth to fit all components up to 17" wide
- 4 cage nuts, 4 M6 screws included

Model RA7042-sp ( Solid Shelf)
Model RA7042-vp ( Vented Shelf)
Dimensions:	3.5" (H) x19"(W) x 15.75" (D)

RA7043

3U Rackmount Single-Side Solid/Vented Shelf, 15.75" Depth

Features:
-Load Capacity: 45 lbs (Solid Shelf) / 40 lbs ( Vented Shelf)
-15.75" tray depth to fit all components up to 17" wide
- 4 cage nuts, 4 M6 screws included

Model RA7043-sp ( Solid Shelf)
Model RA7043-vp ( Vented Shelf)
Dimensions:	5.25" (H) x19"(W) x 15.75" (D)

RA7044

2U 4-Post Heavy Duty Adjustable Solid, 42 " Depth

Features:
-Load Capacity:280 lbs
-EIA Compliant

Model RA7044
Dimensions:	3" (H) x 19"(W) x 42" (D)
Bracket Depth:	21.75"-38.25"

RA7045

1U 4-Post Sliding Vented Shelf, 19.75" Depth

Features:
-Load Capacity: 50 lbs, 16-Gauge Steel
- 4 cage nuts, 4 M6 screws included

Drawing

Model RA7045
Bracket Depth:	14.5” ~ 21.5”
Model RA7045-LBK
Bracket Depth:	27.25” ~ 38
Dimensions:	1.75" (H) x19 "(W) x 19.75" (D)
Effective Dimensions:	1.75" (H) x16.5"(W) x 19.75" (D)

RA7047

1U Single-Side Shelf, 10.5 " Depth

Features:
-Load Capacity:50 lbs
-10.5" tray depth in total, 9.5” from mounting to back
-4 cage nuts and 4 screws included

Model RA7047
Dimensions:	2.13" (H) x 19"(W) x 10.5" (D)

RA7201

RA7201-sp

RA7201-vp

1U Vented Component Shelf, 12" Depth

Features:
-Load Capacity: 70 lbs
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7201-sp ( Solid Shlef )
Model RA7201-2-sp ( Solid Shlef - 2 Pack)
Model RA7201-vp ( Vented Shlef )
Model RA7201-2-vp (Vented Shlef - 2 Pack)
Dimensions:	1.72" (H) x19 "(W) x 12" (D)

RA7202

* RA7202-sp

* RA7202-vp

2U Vented Component Shelf, 14" Depth

Features:
-Load Capacity: 120 lbs ( Solid Shelf) , 50 lbs (Vented Shelf)
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7202-sp ( Solid Shlef )
Model RA7202-2-sp ( Solid Shlef - 2 Pack)
Model RA7202-vp ( Vented Shlef )
Model RA7202-2-vp (Vented Shlef - 2 Pack)
Dimensions:	3.47" (H) x19 "(W) x 14" (D)

RA7203

* RA7203-sp

* RA7203-vp

2U Economy Solid / Vented Shelf, 12" Depth

Features:
-Load Capacity: 25 lbs
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7203-sp ( Solid Shlef )
Model RA7203-vp ( Vented Shlef )
Dimensions:	3.47" (H) x19 "(W) x 12.112" (D)

RA7204

* RA7204-sp

* RA7204-vp

2U Economy Solid / Vented Shelf, 14.75" Depth

Features:
-Load Capacity: 25 lbs
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7204-sp ( Solid Shlef )
Model RA7204-vp ( Vented Shlef )
Dimensions:	3.47" (H) x19 "(W) x 14.75" (D)

RA7205

* RA7205-sp

3U Component Solid Shelf, 16" Depth

Features:
-Load Capacity: 150 lbs
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7205-sp ( Solid Shlef )

Dimensions:	5.22" (H) x19 "(W) x 16" (D)

RA7206

1U Stationary Keyboard Tray, 8" Depth

Features:
-Slim 1U Design, Rounded Corners
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7206
Dimensions:	1.72" (H) x19 "(W) x 8" (D)

RA7221

2U Rack Helper

Features:
-Huge time-saver, Easily install heavy equipment
-Supports 350 lbs., TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7221
Dimensions:	3.5" (H) x19 "(W) x 3" (D)

RA7241

* RA7241-sp

1U 4-Post Adjustable Solid / Vented Shelf, 22-40" Depth

Features:
-Load Capacity: 250 lbs
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7241-sp ( Solid Shlef )
Dimensions:	1.72" (H) x19 "(W) x 22"-40" (D)
Model RA7241-vp ( Vented Shlef )
Dimensions:	1.72" (H) x19 "(W) x 22"-36" (D)

RA7242

20" Fixed Rack Shelf, 20.02" Depth

Features:
-Load Capacity: 300 lbs
-Fixed 20” mounting depth, Low profile design
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7242
Dimensions:	0.47" (H) x19 "(W) x 20.02" (D)

RA7243

2U 4-Post Adjustable Shelf, 22"- 40" Depth

Features:
-Load Capacity: 250 lbs
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7243
Dimensions:	3.47" (H) x19 "(W) x Adjustable Depth Range: 22" to 40"

RA7244

RA7244-sp

RA7244-vp

1U 4-Post Adjustable Vented Shelf, 19"-28" Depth

Features:
-Load Capacity: 100 lbs
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7244-sp ( Solid Shlef )
Model RA7244-vp ( Vented Shlef )
Dimensions:	1.72" (H) x19 "(W) x Adjustable Depth Range: 19" to 28"

CR2205

2U 2-Piece Telco Rack Shelf

Features:
-Load Capacity: 200 lbs
-Includes 2 shelves
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model CR2205
Dimensions:	3.47" (H) x19 "(W) x 9" (D)

CR2206

CR2206-sp

CR2206-vp

3U Vented Centerline Shelf, 24" Depth

Features:
-Load Capacity: 350 lbs
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model CR2206-sp ( Solid Shlef )
Model CR2206-vp ( Vented Shlef )
Dimensions:	5.22" (H) x19 "(W) x 24" (D)

RA7301

RA7301-sp

RA7301-vp

1U Black Steel Solid/Vented Cantilever Shelf, 11.68" Depth

Features:
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Click the Model Number to Learn More or Buy Online:
Model RA7301-sp ( Solid Shlef )
Model RA7301-vp ( Vented Shlef )
Dimensions:	1.75" (H) x19 "(W) x 11.68 " (D)

RA7302

RA7302-SP

RA7301-VP

RA7301-AL

2U Solid/Vented Cantilever Shelf, Steel or Aluminum, 14" Depth

Features:
-TAA Compliant, Made in USA

Click the Model Number to Learn More or Buy Online:
Model RA7302-sp ( Steel Solid Shlef )
Model RA7302-vp ( Steel Vented Shlef )
Model RA7302-AL ( Aluminum Solid Shlef )
Dimensions:	3.5" (H) x19.25 "(W) x 14 " (D)

RA7303

RA7303-SP

RA7303-VP

2U Black Steel Solid/Vented Cantilever Shelf, 18" Depth

Features:
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Click the Model Number to Learn More or Buy Online:
Model RA7303-sp ( Solid Shlef )
Model RA7303-vp ( Vented Shlef )
Dimensions:	3.5" (H) x19 "(W) x 18 " (D)

RA7304

RA7304-SP

RA7304-VP

RA7304-AL

2U Solid/Vented Cantilever Shelf, Steel or Aluminum, 19" Depth

Features:
-TAA Compliant, Made in USA

Click the Model Number to Learn More or Buy Online:
Model RA7304-sp ( Steel Solid Shlef )
Model RA7304-vp ( Steel Vented Shlef )
Model RA7304-AL ( Aluminum Solid Shlef )
Dimensions:	3.5" (H) x19.25 "(W) x 19 " (D)

RA7305

RA7305-SP

RA7305-AL

2U Steel or Aluminum Solid Shlef, 20" Depth

Features:
- TAA Compliant, Made in USA

Click the Model Number to Learn More or Buy Online:
Model RA7305-sp ( Steel Shelf )
Model RA7305-AL ( Aluminum Shelf )
Dimensions:	4" (H) x19.25 "(W) x 20 " (D)

RA7306

RA7306-SP

RA7306-VP

1U Black Steel Solid/Vented Shelf, 18" - 24" Depth

Features:
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Click the Model Number to Learn More or Buy Online:
Model RA7306-sp ( Solid Shlef )
Model RA7306-vp ( Vented Shlef )
Dimensions:	1.75" (H) x19 "(W) x Adjustable Depth Range: 18" to 24"

RA7307

RA7307-SP

2U 4-Post Black Steel Solid Shelf, 24" - 36" Depth

Features:
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7307-sp ( Solid Shlef )
Dimensions:	3.5" (H) x19.25 "(W) x Adjustable Depth Range: 24" to 36"

RA7308

RA7308-1U

1U Black Steel Keyboard Shelf, 9" Depth

Features:
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7308-1U
Dimensions:	1.75" (H) x19"(W) x 9" (D)

RA7309

RA7309

2U Rackmount Keyboard Shelf with Mouse Pad, 14" Depth

Features:
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7309
Dimensions:	3.5" (H) x19.25"(W) x 14" (D)

RA7310

RA7310

2U Black Steel Shelf - Flush Mount Keyboard with pad, 14" Depth

Features:
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7310
Dimensions:	3.5" (H) x19.25"(W) x 14" (D)

RA7311

RA7311

1U Rack Rails - 4 Post Adjustable, 20.25" - 33.25" Depth

Features:
-19” EIA 310-D Compliant, TAA Compliant, Made in USA

Select the Model Number to Learn More:
Model RA7311
Dimensions:	1.25"(H) x19"/23"/30""(W)x Adjustable Depth Range:20.25"to 33.25"

RSKS19005BK1

3U 15" Depth 4-Post Rotating Pull-Out Rack Shelf

Features:
- Unique design allows the use of a full size keyboard or other
equipment (not included) housed in the rack shelf
- Suggested Load Capacity: 129 lbs
- Top tray of drawer swivels clockwise 90 degrees, once pulled
outside the front of the rack
- Slides are tested to BIFMA Standards
- EIA, RoHS, REACH & TAA Compliant , Manufactured in Canada

Overall Dimensions:	5.25" (H) x 19"(W) x 15" (D)
Rail Mounting Depth:	19.8" (Min.) 34.8"(Max.)

RAKS19BK1

2U 16" Depth Pull-Out Keyboard Rack Shelf

Features:
- Designed to fit all standard 17 inch wide keyboards
- Shelf slides for keyboard storage when not in use
- Suggested Load Capacity: 129 lbs
- EIA, RoHS, REACH & TAA Compliant , Manufactured in Canada

Overall Dimensions:	2.69" (H) x 18.9"(W) x 15" (D)
Shelf Depth /Travel Depth:	16" / 16"

RAKS24BK1

2U 16" Depth Pull-Out Keyboard Rack Shelf for 23" Wide Rack

Overall Dimensions:	2.69" (H) x 23.9"(W) x 15" (D)
Shelf Depth /Travel Depth:	16" / 16"

RMS193BK1

3-in-1 3U Rack Shelf and Keyboard Drawer , 2 or 4 Post Mounting

Features:
- 3-in-1: Vented top shelf + Solid sliding center-swivel
keyboard tray + Solid sliding document or wide mouse tray
- Mounts to front rails with included optional front and rear
support bars
- Tested to nearly double the suggested load rating of 129 lbs
- Rack Mount Keyboard Tray Manufactured in Canada - EIA, RoHS, REACH & TAA Compliant

Overall Dimensions:	5.25" (H) x 19"(W) x 18.38" (D)
Mounting Dimensions:	5.25" (H) x 19"(W) x 17" (D)

RSP2U16

RSP2U16

Optional Divider

2U 16" Depth 2-Post Pull-Out Rack Shelf

Features:
-14-Gauge Steel
-Load Capacity: 100 lbs
-Optional dividers help organize and support equipment such as consoles and cable boxes
-EIA, RoHS, REACH & TAA Compliant
-Manufactured in Canada

Overall Dimensions:	3.5" (H) x 19"(W) x 16.25" (D)
Shelf Depth:	16"
Slide Travel:	16"

RSP3U20

RSP3U20

Optional Divider

3U 20" Depth 2-Post Sliding Rack Shelf

Features:
-14-Gauge Steel
-Load Capacity: 100 lbs
-Optional dividers help organize and support equipment such as consoles and cable boxes
-EIA, RoHS, REACH & TAA Compliant
-Manufactured in Canada

Overall Dimensions:	5.25" (H) x 19"(W) x 20.25" (D)
Shelf Depth:	20"
Slide Travel:	16"

RSUS1918BK1

RSVS1918BK1

2U 18" Depth 4-Post Mounting Pull-Out Solid / Vented Shelf

Features:
-16-Gauge Steel, Load Capacity: 130 lbs
-Heavy-duty ball bearing slides w/ stopping mechanism included
-Slides are tested to BIFMA Standards
-EIA, RoHS, REACH & TAA Compliant. Manufactured in Canada

Overall Dimensions:	2.68" (H) x 18.89"(W) x 18.12" (D)
Shelf Dimensions:	1.5" (H) x 16.64"(W) x 18.12" (D)
Rail Mounting Depth:	6" (Min.) 20"(Max.)
Slide Travel:	18"

RSUS1921BK1

RSVS1921BK1

2U 21" Depth 4-Post Mounting Pull-Out Solid / Vented Shelf

Features:
-16-Gauge Steel, Load Capacity: 114 lbs
-Heavy-duty ball bearing slides w/ stopping mechanism included
-Slides are tested to BIFMA Standards
-EIA, RoHS, REACH & TAA Compliant. Manufactured in Canada

Overall Dimensions:	2.68" (H) x 18.89"(W) x 21" (D)
Shelf Dimensions:	1.5" (H) x 16.64"(W) x 21" (D)
Rail Mounting Depth:	12" (Min.) 21"(Max.)
Slide Travel:	20"

RSUS1926BK1

RSVS1926BK1

2U 26" Depth 4-Post Mounting Pull-Out Solid / Vented Shelf

Features:
-16-Gauge Steel, Load Capacity: 94 lbs
-Heavy-duty ball bearing slides w/ stopping mechanism included
-Slides are tested to BIFMA Standards
-EIA, RoHS, REACH & TAA Compliant. Manufactured in Canada

Overall Dimensions:	2.68" (H) x 18.89"(W) x 26.12" (D)
Shelf Dimensions:	1.5" (H) x 16.64"(W) x 26.12" (D)
Rail Mounting Depth:	16" (Min.) 27.75"(Max.)
Slide Travel:	26"

RSUS1931BK1

RSVS1931BK1

2U 31" Depth 4-Post Mounting Pull-Out Solid / Vented Shelf

Features:
-16-Gauge Steel, Load Capacity: 85 lbs
-Heavy-duty ball bearing slides w/ stopping mechanism included
-Slides are tested to BIFMA Standards
-EIA, RoHS, REACH & TAA Compliant. Manufactured in Canada

Overall Dimensions:	2.68" (H) x 18.89"(W) x 31" (D)
Shelf Dimensions:	1.5" (H) x 16.64"(W) x 31" (D)
Rail Mounting Depth:	18" (Min.) 28"(Max.)
Slide Travel:	28"

Toll Free : 1-888-865-6888 Fax : 510-226-8968 Email: Sales@RackmountMart.com

Home | Buy Online | About Us | Contact Us | Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Inc is not responsible for any typographical errors. Specifications subject to change without notice. Legal.
