Introduction |

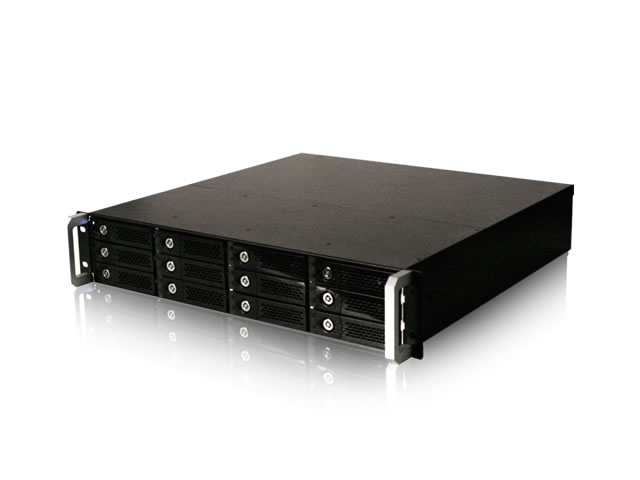

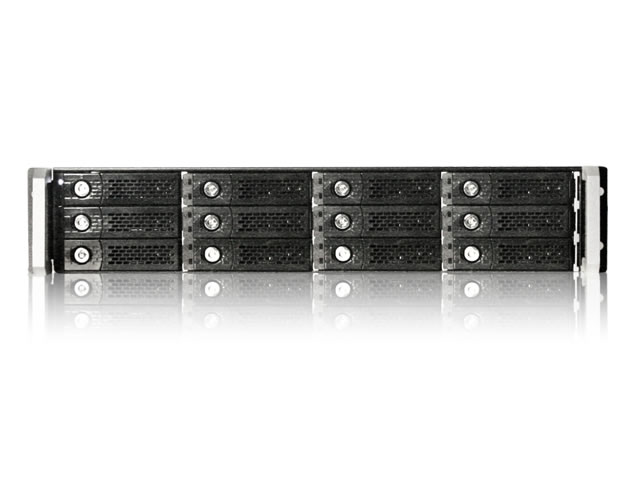

With the innovative architecture,SS2009 is
designed to plug any standard SAS or SATA PCI-e Raid controller directly into its internal PCI-e slot and use its high speed external PCI-Express x8 (2GBps) as the host interface. It an external 2U-12 Bay Hot-Swap SAS/SATA Rack-mount Enclosure. It provides users a most big storage capacity expansion solution for up to 12 SAS or SATA HDD and high performance external data storage solution for HD of 1080p video editing or any high resolution video platform. This 2U 12 Bay external SAS/SATA JBOD is designed with external PCI-e x 8 interface brings users an easy installation and enjoy fast data transmission experience.
|
|
Features |
- Supports SAS/SATA (3Gbps)
- External 2U-12 Bay Rack-mount Chassis
- External PCI-e (PCI-Express) x8 Host Interface removable SAS/SATA drive trays
- Dual Hot Swappable Power Supplies
- Backplane Design for up to 12 Removable SAS/SATA Drive Trays
- Individual key lock of each HDD tray for physical security
- LED indicators for power and activity on each HDD tray
- Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm
|
|
Package Content |
- Enclosure x 1
- HDD Tray x 12
- PCI-e x8 Adapter Card x 1
- Power Cord x 1
- Manual CD-ROM x 1
- Hard Disk Drive mounting screw x 48
- Key for HDD tray x 2
|
|
|
Technical Specification |
|
Host
Interface |
PCI-e x 8 |
| HDD
Interface |
SAS/SATA |
| Data Transfer Rate |
SAS/SATA 3 Gbps |
| Hot-Swap |
Both on Host and Device |
| LED Display |
Green - Power on indicator
Blue - Busy (HDD Accessing) indicator |
| LED Display for Environmental Monitoring |
POWER on LED - white
FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
(We strongly recommend customers to replace a new fan ASAP after the fan failed)
|
| Dimension |
(L):45.6cm (W):48.2cm (H):8.85cm |
| Material |
Heavy-duty cold-rolled steel |
| Power Supply |
400W Single PSU (Can be chnged to mini Redundant)
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC |
| Cooling |
60mm Fan x 2 |
| O.S. support |
OS Independant |
|
Optional Accessories |
| Power Supply |
400W Redundant Power Supply |
