Basic Rack PDU
Model  RAH5042-C-20A-IEC


High-Power 3-Phase Rack Pdu, Basic, Zero U, 11 KW, 230V, (36) C13 & (6) C19


Basic Rack PDU, Input: 400V 3PH, Input Connections: IEC 309 20A 3P+N+E, Cord Length:3 feet ( 0.91 meters ), Output: 230V, Output Connections: IEC 320 C13,IEC 320 C19

Includes : Installation guide, Rack Mounting brackets, Toolless Mounting Kit, User Manual



Specifications
 Output
Nominal Output Voltage   230V
Maximum Total Current Draw per Phase   16A
Output Connections   (36) IEC 320 C13
Output Connections   (6) IEC 320 C19
Overload Protection   No
 Input
Nominal Input Voltage   400V 3PH
Input Frequency   50/60 Hz
Regulatory Derated Input Current
(North America)
  16A

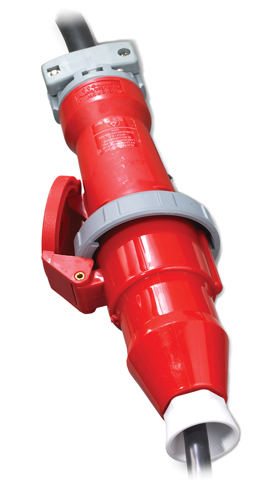

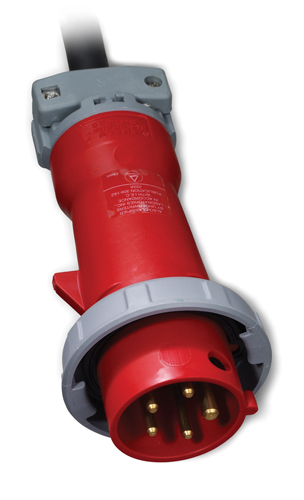

Input Connections   IEC 309 20A 3P+N+E
Cord Length   0.91 meters
Maximum Input Current per phase   20A
 Physical
Net Weight   5.62 KG
Maximum Height   1778.00 mm
Maximum Width   56.00 mm
Maximum Depth   44.00 mm
Shipping Height   2134.00 mm
Shipping Width   152.00 mm
Shipping Depth   127.00 mm
Color   Black
 Environmental
Operating Environment   -5 - 45 C
Operating Relative Humidity   5 - 95%
Operating Elevation   0-3000 meters
Storage Temperature   -25 - 65 C
Storage Relative Humidity   5 - 95%
Storage Elevation   0-15000 meters
 Conformance
Regulatory Approvals   UL 60950-1, UL Listed
 Sustainable Offer Status
RoHS   Compliant
Basic Rack PDU Features & Benefits
Rack-Mountable   Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source   Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections   Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. We offer units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution   Provides a number of outlets to bring power to rack equipment at an affordable price.
Documentation
Basic Rack PDU Installation and Quick-Start (Manual) Product Sheet
Drawing

Gallery


 Ordering Information

Part # Description
 RAH5042-C-20A-IEC
 Price : Please call
High-Power 3-Phase Rack Pdu, Basic, Zero U, 11 KW, 230V, (36) C13 & (6) C19
