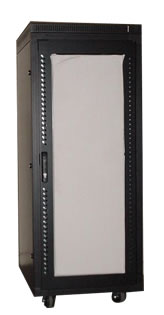

EQUIPMENT RACK  - CR1033




* Click on the above picture for a detailed View

19" Server Cabinet

Inside Dimension :
Height = 33U ( 58" )
Depth  =
32.25" (Self-tapping type) / 32.75" (Square type)
Width  = 19"

Overall Dimension : 23.60"(w) x 36"(d) x 68"(h)

Material
Cabinet frame of extrude aluminum sections front and clear door, side panels, top, bottom plates and plinth of sheet metal
Accessories
 - Die-cast heavy duty aluminum post frame
 - Plexiglass front door W/lock
 - Heavy duty sheet metal side and rear doors W/lock
 - Top and bottom panels W/cable access hole
 - Full size mounting strips front and rear
 - 3 of 12cm fans (115CFM each) on top
 - 4 heavy duty wheels
 - 4 leveling feet
 - 50 pcs M6 bolt screws W/washer
 - Grounding wires
Feature
- Good air ventilation
- You could increase to total 11 fans
- All doors design with the spring latch, easy remove, tool less
- Water or dust resist from top
- Easy assemble
Drawing
Download Product Drawing

 -Specification:
  • Overall:
    * Width: 23.6"
    * depth: 36"
    * Height: 68"

  • Interior:
    * Width: Hole to Hole (center) = 19" (18.25")
    * Entrance (right rail to left rail): 17 5/8"
    * Depth of front railing to rear door: Self-tapping type = 32.25" Square type = 32.75"
    * Useable height: 58"
    * Max. length of sliding rail's brackets: Self-tapping type = 27.75" Square type = 29 5/8"

  • Optional Accessories
      Air Filters    Rack Mount LCD Monitors ( No Keyboard & KVM )
      Blank Panels    Rack Mount LCD Monitor Keyboard Optional KVM
      Bracket Supports    Rack Power Distribution Unit / Rackmount PDU
      Cable Management    Rack Mount Rails
      KVM Switches    Rack Mount Shelves
      Rack Mount Cooling Fans    Rack Mount Speakers
      Rack Display Mounting Brackets    Power Strips
      Rack Mount Drawers    Screw Bags
      Rack Mount Keyboard Drawers (No Monitor & KVM)    Vertical Mounting Rail
      Intelligent Cabinet Door Lock handle    Environmental Control Management
      Rack Lights    Patch panel



     Ordering  information

    Part Number  Description
    CR1033
    Call for pricing
     33U Rack mounting Cabinet     *** Special order item , MOQ require ***
