Home >> Industrial Display >> Chassis Display >>

Industrial Panel : Part # ID-08D

1.2mm Aluminum Front Bezel 8.4" Chassis Industrial LCD Display

LCD Panel
LCD Type	Grade A Industrial TFT LCD Panel
Display Size	8.4 inch diagonal (170.4H x 127.8V)
Resolutions	800 x 600
Display Color	262,144 color
Brightness	220 cd/m2
Contrast ratio	350 : 1 (Typical)
Response Time	Tr=15 / Tf=25ms
Pixel pitch	0.213 x 0.213 mm
Viewing angle	60 / 60 / 60 / 40 (L / R / U / D) or 120 / 100
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	Input Video Signal : Analog RGB Video Level : Analog: 0.7Vp-p Sync Type : Separate H/V, Composite H/V Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type,110 ~ 220 VAC at 50 or 60Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	Video Input : S-Video and Composite Input Connectors : RCA, S-video
Optional Touch Screen	Details
Optional DC Power	48V / 24V / 12V DC Power Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	1.2mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Silver Back : Dark Grey (RAL7037)
Dimension	263 x 42 x 196 mm (WxDxH)
Product Weight	2.0 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1,VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-8D

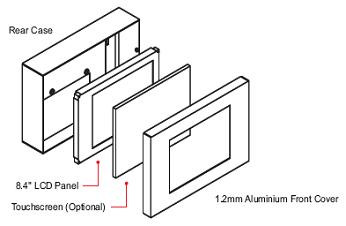

Construction

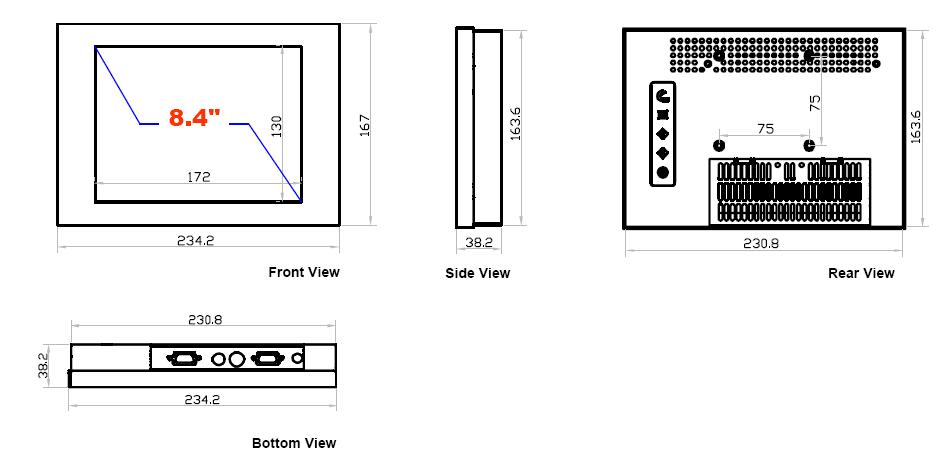

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

FEATURES :

8.4" industrial TFT LCD panel support 800 x 600 pixels

1.2mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

Low power consumption

220 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional DC power input (12 / 24 / 48 VDC)

Optional video input (S-Video & RCA input)

VESA-mount, OEM mounting design

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part # Description

                                                 WITHOUT NEMA 4 / IP65

ID-08D
Price : $500 Standard Version - 1.2mm Aluminum Front Bezel 8.4" Industrial display

ID-08DAV
Price : $554 Version w/option - 1.2mm Aluminum Front Bezel 8.4" Industrial display + S-Video &
                           Composite Video

ID-08DBNC
Price : $554 Version w/option - 1.2mm Aluminum Front Bezel 8.4" Industrial display + BNC

ID-08DDC12
Price : $581 Version w/option - 1.2mm Aluminum Front Bezel 8.4" Industrial display + 12v DC Power

ID-08DDC24
Price : $581 Version w/option - 1.2mm Aluminum Front Bezel 8.4" Industrial display + 24v DC Power

ID-08DDC48
Price : $581 Version w/option - 1.2mm Aluminum Front Bezel 8.4" Industrial display + 48v DC Power

ID-08DTRS
Price : $689 Version w/option - 1.2mm Aluminum Front Bezel 8.4" Industrial display +
                           e-Resistive Touch screen & serial controller

ID-08DTRB
Price : $689 Version w/option - 1.2mm Aluminum Front Bezel 8.4" Industrial display +
                           e-Resistive Touch screen & USB controller
